text version of content this owner's manual page from owners manual to the vehicle Audi S5, year of production 2007:

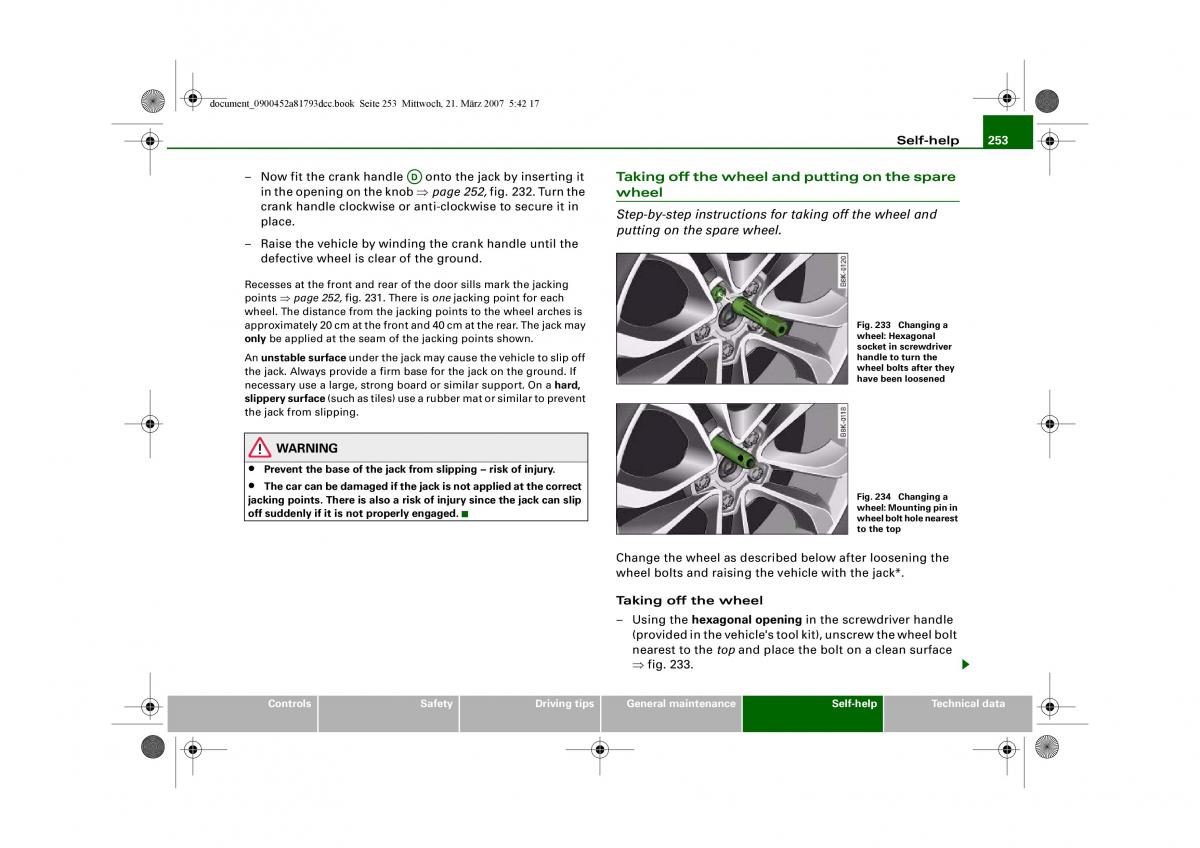

document_0900452a81793dcc.book Seite 253 Mittwoch, 21. März 2007 5:42 17 Self-help 253 – Now fit the crank handle D onto the jack by inserting it A Taking off the wheel an d putting on the spare in the opening on the knob ⇒ page 252, fig. 232. Turn the wheel crank handle clockwise or anti-clockwise to secure it in Step-by-step instructions for taking off the wheel and place. putting on the spare wheel. – Raise the vehicle by winding the crank handle until the defective wheel is clear of the ground. Recesses at the front and rear of the door sills mark the jacking points ⇒ page 252, fig. 231. There is one jacking point for each wheel. The distance from the jacking points to the wheel arches is approximately 20 cm at the front and 40 cm at the rear. The jack may Fig. 233 Changing a only be applied at the seam of the jacking points shown. wheel: Hexagonal socket in screwdriver An unstable surface under the jack may cause the vehicle to slip off handle to turn the the jack. Always provide a firm base for the jack on the ground. If wheel bolts after they necessary use a large, strong board or similar support. On a hard, have been loosened slippery surface (such as tiles) use a rubber mat or similar to prevent the jack from slipping. WARNING • Prevent the base of the jack from slipping – risk of injury. • The car can be damaged if the jack is not applied at the correct jacking points. There is also a risk of injury since the jack can slip Fig. 234 Changing a off suddenly if it is not properly engaged. wheel: Mounting pin in wheel bolt hole nearest to the top Change the wheel as described below after loosening the wheel bolts and raising the vehicle with the jack*. Taking off the wheel –Using thehe xagonal opening in the screwdriver handle (provided in the vehicle's tool kit), unscrew the wheel bolt nearest to the top and place the bolt on a clean surface ⇒fig. 233. Controls Safety Driving tips General maintenance Self-help Technical data
