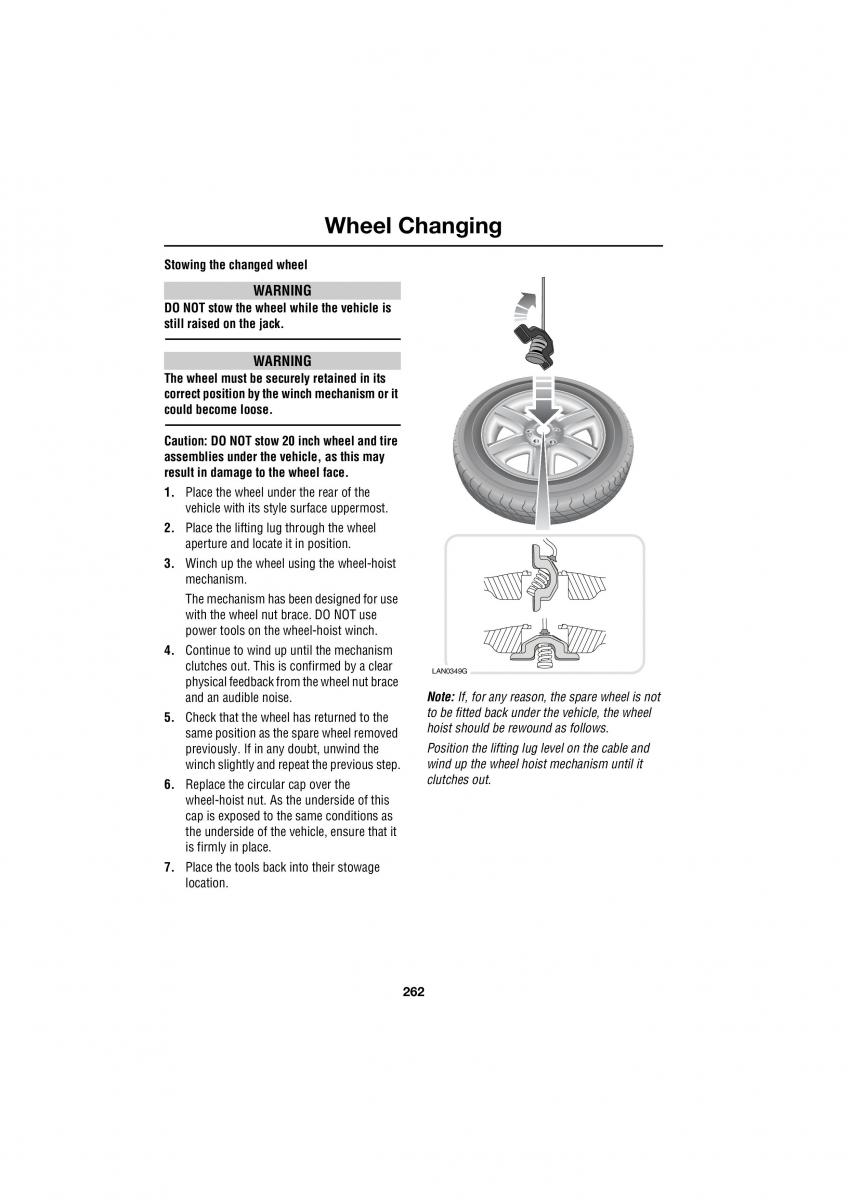

Wheel Changing
Stowing the changed wheel
WARNING
DO NOT stow the wheel while the vehicle is
still raised on the jack.
WARNING
The wheel must be securely retained in its
correct position by the winch mechanism or it
could become loose.
Caution: DO NOT stow 20 inch wheel and tire
assemblies under the vehicle, as this may
result in damage to the wheel face.
1. Place the wheel under the rear of the
vehicle with its style surface uppermost.
2. Place the lifting lug through the wheel
aperture and locate it in position.
3. Winch up the wheel using the wheel-hoist
mechanism.
The mechanism has been designed for use
with the wheel nut brace. DO NOT use
power tools on the wheel-hoist winch.
4. Continue to wind up until the mechanism
clutches out. This is confirmed by a clear LAN0349G
physical feedback from the wheel nut brace
and an audible noise. Note: If, for any reason, the spare wheel is not
5. Check that the wheel has returned to the to be fitted back under the vehicle, the wheel
same position as the spare wheel removed hoist should be rewound as follows.
previously. If in any doubt, unwind the Position the lifting lug level on the cable and
winch slightly and repe at the previous step.wind up the wheel hoist mechanism until it
6. Replace the circular cap over the clutches out.
wheel-hoist nut. As the underside of this
cap is exposed to the same conditions as
the underside of the vehicle, ensure that it
is firmly in place.
7. Place the tools back into their stowage
location.
262
