text version of content this owner's manual page from owners manual to the vehicle Audi S5, year of production 2007:

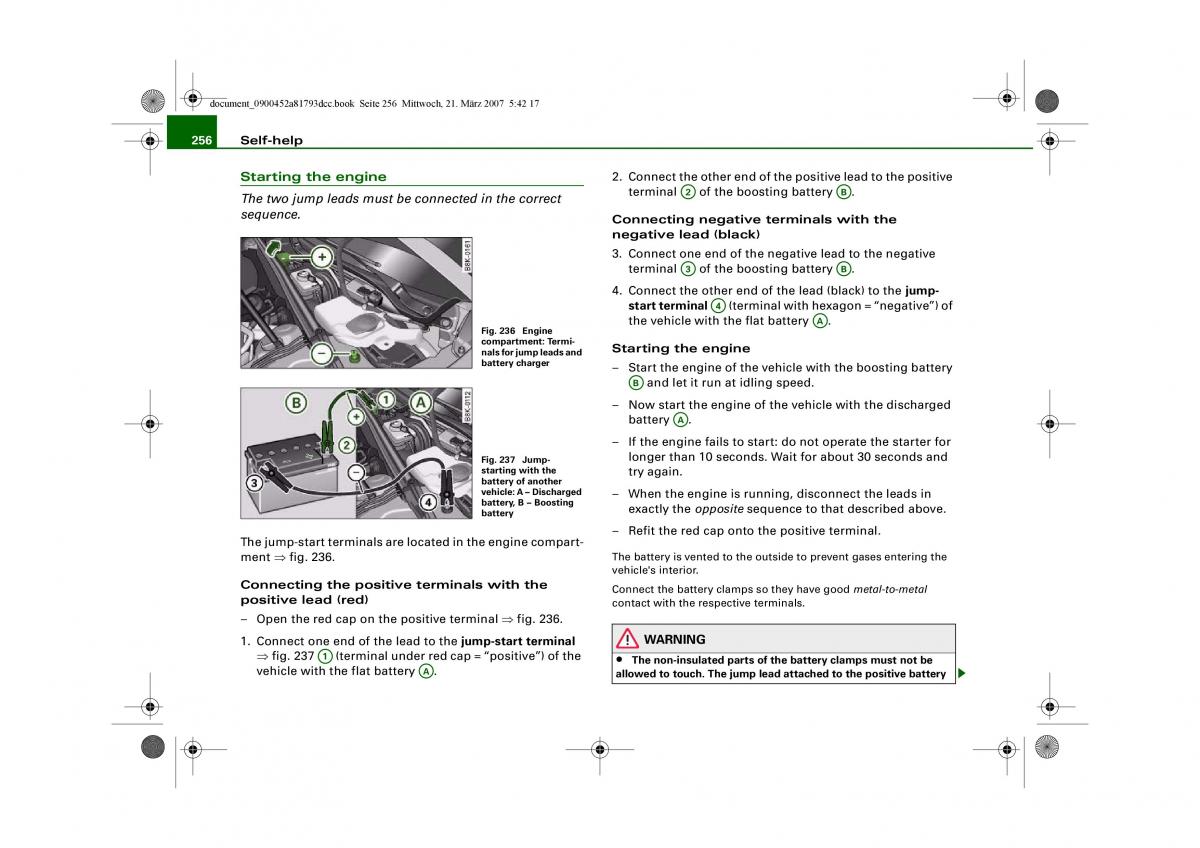

document_0900452a81793dcc.book Seite 256 Mittwoch, 21. März 2007 5:42 17 256 Self-help Starting the engine 2. Connect the other end of the positive lead to the positive terminal 2 of the boosting battery B . The two jump leads must be connected in the correct A A sequence. Connecting negative terminals with the negative lead (black) 3. Connect one end of the negative lead to the negative terminal 3 of the boosting battery B . A A 4. Connect the other end of the lead (black) to thejump- start terminal 4 (terminal with hexagon = “negative”) of A the vehicle with the flat battery A . A Fig. 236 Engine compartment: Termi-Starting the engine nals for jump leads and battery charger – Start the engine of the vehicle with the boosting battery B and let it run at idling speed. A – Now start the engine of the vehicle with the discharged A battery .A – If the engine fails to start: do not operate the starter for Fig. 237 Jump- longer than 10 seconds. Wait for about 30 seconds and starting with the try again. battery of another vehicle: A – Discharged – When the engine is running, disconnect the leads in battery, B – Boosting exactly the opposite sequence to that described above. battery – Refit the red cap onto the positive terminal. The jump-start terminals are located in the engine compart- ment ⇒fig.236. The battery is vented to the outside to prevent gases entering the vehicle's interior. Connecting the positive terminals with the Connect the battery clamps so they have good metal-to-metal positive lead (red) contact with the respective terminals. – Open the red cap on the positive terminal ⇒ fig. 236. 1. Connect one end of the lead to the jump-start terminal WARNING ⇒fig.237 1 (terminal under red cap = “positive”) of the A • The non-insulated parts of the battery clamps must not be vehicle with the flat battery A . A allowed to touch. The jump lead attached to the positive battery
