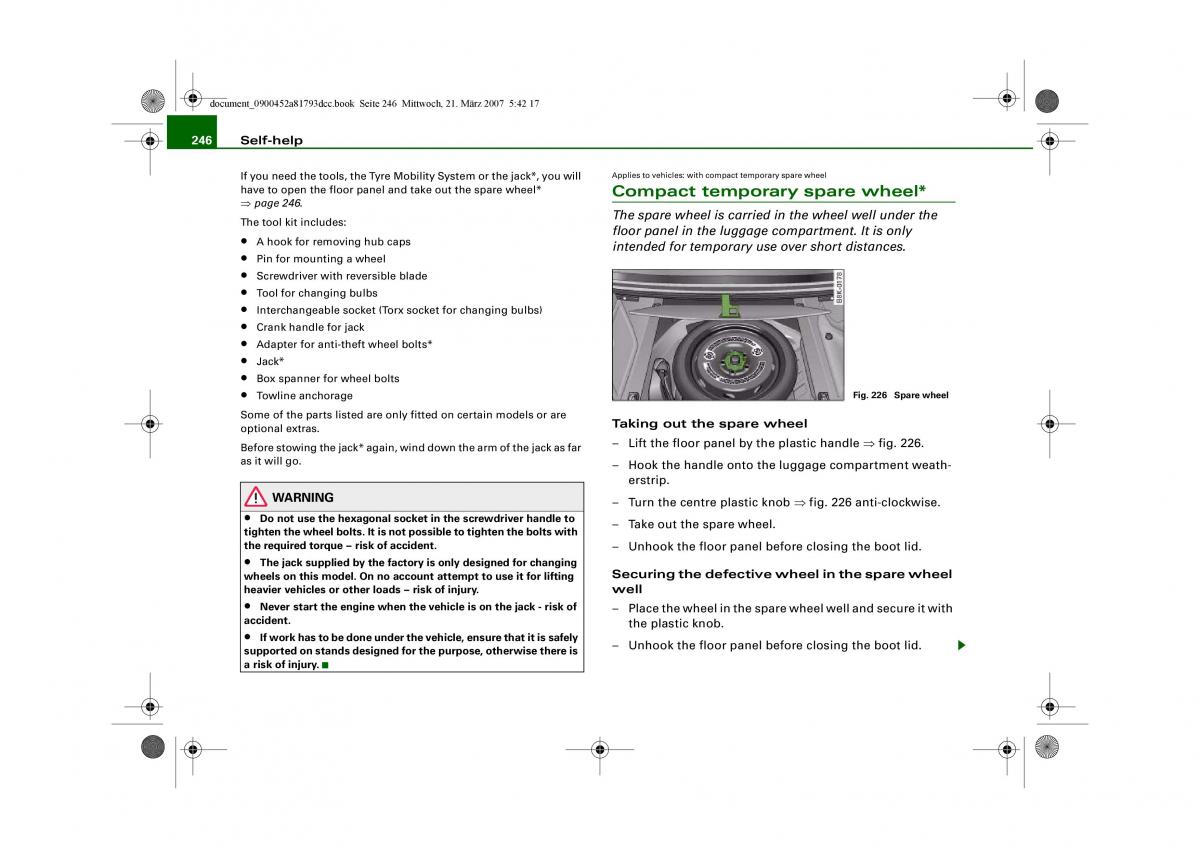

document_0900452a81793dcc.book Seite 246 Mittwoch, 21. März 2007 5:42 17 246 Self-help If you need the tools, the Tyre Mobili ty System or the jack*, you will Applies to vehicles: with compact temporary spare wheel have to open the floor panel and take out the spare wheel* Compact temporary spare wheel* ⇒page246. The tool kit includes: The spare wheel is carried in the wheel well under the • A hook for removing hub caps floor panel in the luggage compartment. It is only • Pin for mounting a wheel intended for temporary use over short distances. • Screwdriver with reversible blade • Tool for changing bulbs • Interchangeable socket (Torx socket for changing bulbs) • Crank handle for jack • Adapter for anti-theft wheel bolts* • Jack* • Box spanner for wheel bolts • Towline anchorage Fig. 226 Spare wheel Some of the parts listed are only fitted on certain models or are Taking out the spare wheel optional extras. Before stowing the jack* again, wind down the arm of the jack as far – Lift the floor panel by the plastic handle ⇒ fig. 226. as it will go. – Hook the handle onto the luggage compartment weath- erstrip. WARNING – Turn the centre plastic knob ⇒ fig. 226 anti-clockwise. • Do not use the hexagonal socket in the screwdriver handle to – Take out the spare wheel. tighten the wheel bolts. It is not possible to tighten the bolts with the required torque – risk of accident. – Unhook the floor panel before closing the boot lid. • The jack supplied by the factory is only designed for changing wheels on this model. On no account attempt to use it for lifting Securing the defective wheel in the spare wheel heavier vehicles or other loads – risk of injury. well • Never start the engine when the vehicle is on the jack - risk of – Place the wheel in the spare wheel well and secure it with accident. the plastic knob. • If work has to be done under the vehicle, ensure that it is safely – Unhook the floor panel before closing the boot lid. supported on stands designed for th e purpose, otherwise there is a risk of injury.
