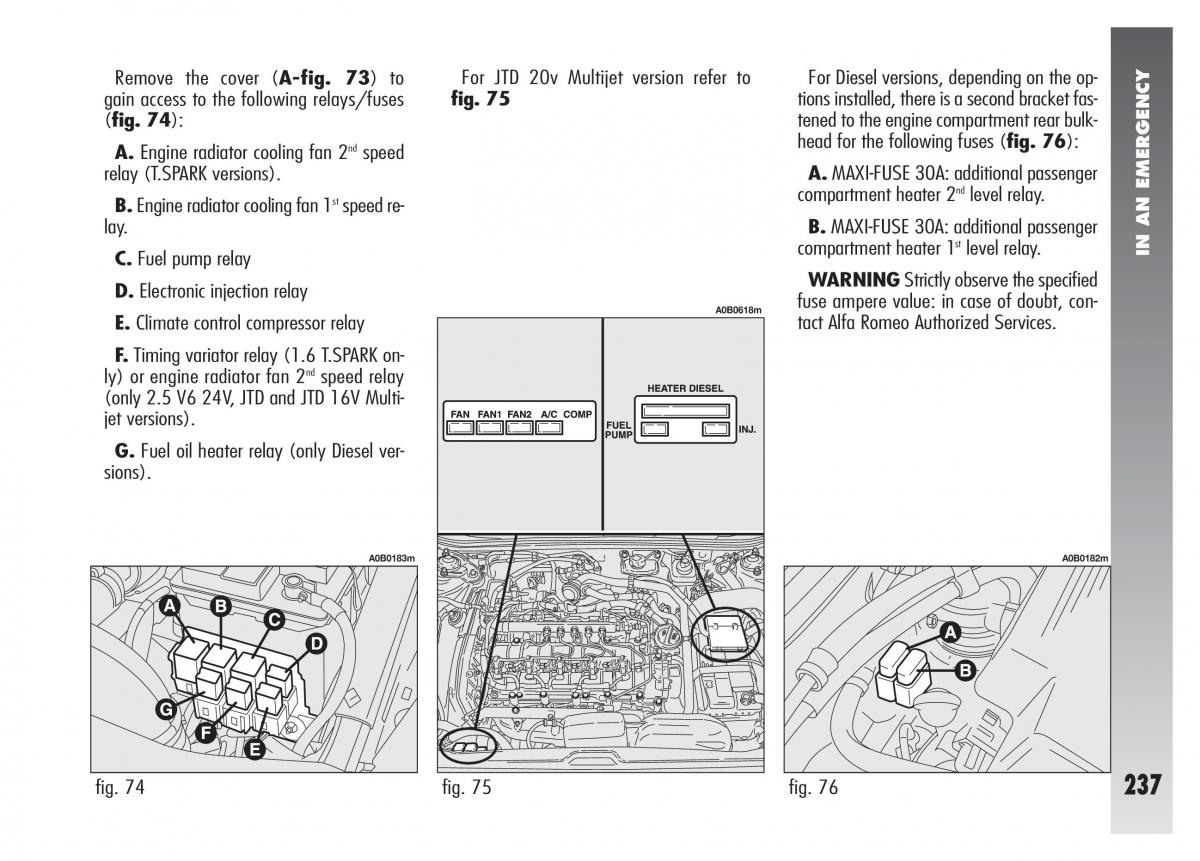

Remove the cover (A-fig. 73) to For JTD 20v Multijet version refer toFor Diesel versions, depending on the op- fig. 75 tions installed, there is a second bracket fas- gain access to the following relays/fuses (fig. 74): tened to the engine compartment rear bulk- nd head for the following fuses (fig. 76): A. Engine radiator cooling fan 2speed relay (T.SPARK versions). A.MAXI-FUSE 30A: additional passenger compartment heater 2 nd level relay. B. Engine radiator cooling fan 1st speed re- lay. B. MAXI-FUSE 30A: additional passenger compartment heater 1 st level relay. C. Fuel pump relay IN AN EMERGENCY D. Electronic injection relay WARNING Strictly observe the specified A0B0618m fuse ampere value: in case of doubt, con- E. Climate control compressor relay tact Alfa Romeo Authorized Services. F. Timing variator relay (1.6 T.SPARK on- nd ly) or engine radiator fan 2speed relay (only 2.5 V6 24V, JTD and JTD 16V Multi- jet versions). G. Fuel oil heater relay (only Diesel ver- sions). A0B0183m A0B0182m fig. 74 fig. 75 fig. 76 237
