text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 156, year of production 1997 - 2006:

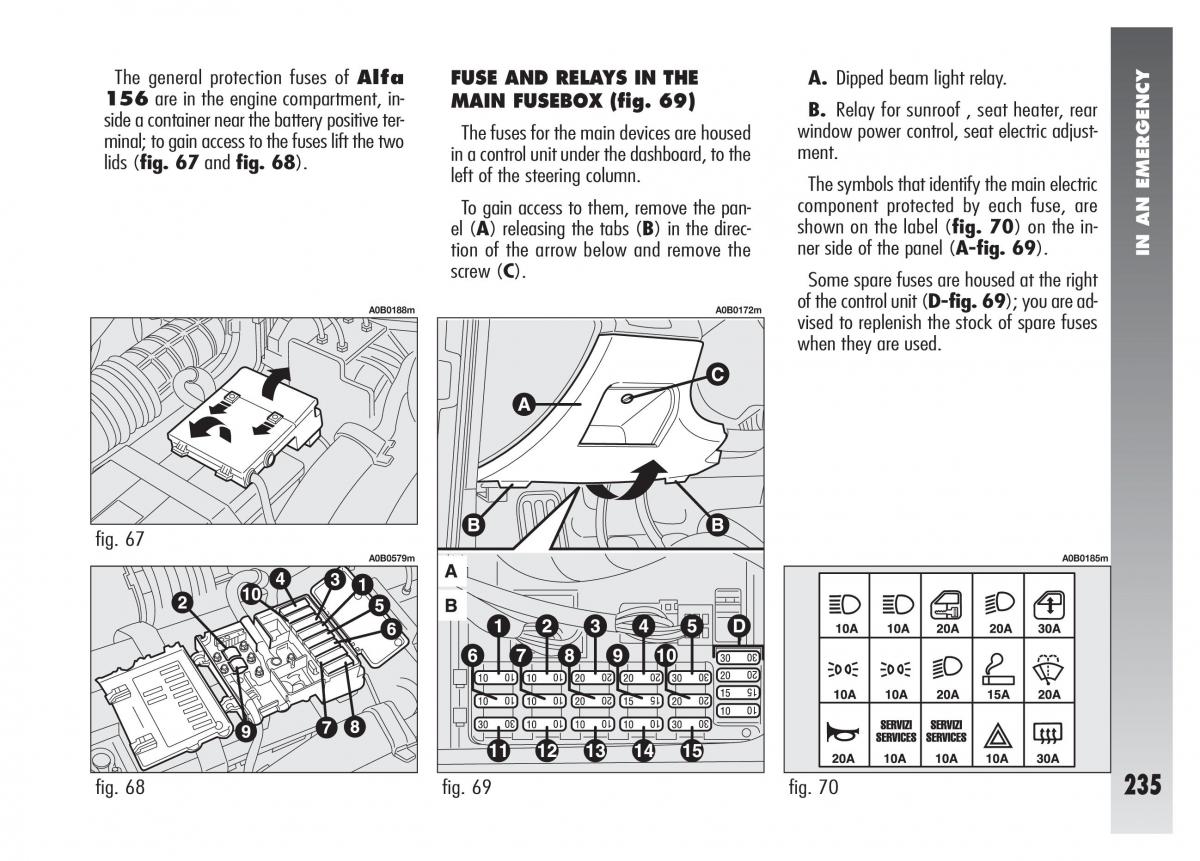

The general protection fuses of Alfa A. Dipped beam light relay. FUSE AND RELAYS IN THE 156are in the engine compartment, in- MAIN FUSEBOX (fig. 69) B. Relay for sunroof , seat heater, rear y positive ter-side a container near the batter The fuses for the main devices are housed window power control, seat electric adjust- minal; to gain access to the fuses lift the two in a control unit under the dashboard, to the ment. lids (fig. 67 and fig. 68). left of the steering column. The symbols that identify the main electric To gain access to them, remove the pan- component protected by each fuse, are el (A) releasing the tabs (B) in the direc- shown on the label (fig. 70) on the in- ner side of the panel (A-fig. 69 ). tion of the arrow below and remove the IN AN EMERGENCY screw (C). Some spare fuses are housed at the right A0B0188m A0B0172m of the control unit (D-fig. 69); you are ad- vised to replenish the stock of spare fuses when they are used. fig. 67 A0B0579m A0B0185m fig. 68 fig. 69 fig. 70 235
