text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 156, year of production 1997 - 2006:

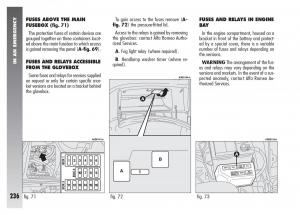

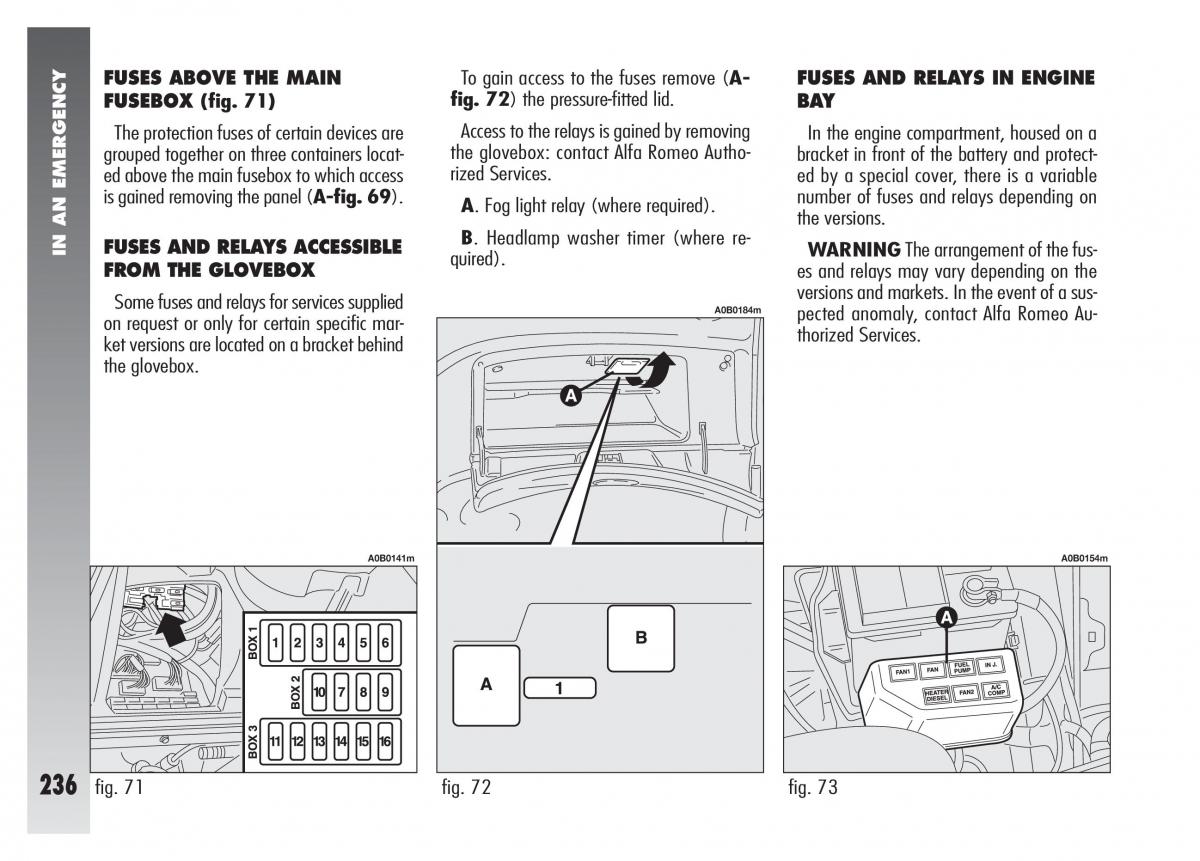

To gain access to the fuses remove (A- FUSES ABOVE THE MAIN FUSES AND RELAYS IN ENGINE FUSEBOX (fig. 71) fig. 72) the pressure-fitted lid. BAY The protection fuses of certain devices are Access to the relays is gained by removing In the engine compartment, housed on a the glovebox: contact Alfa Romeo Autho- grouped together on three containers locat- bracket in front of the battery and protect- ed above the main fusebox to which access rized Services. ed by a special cover, there is a variable is gained removing the panel (A-fig. 69 ). A. Fog light relay (where required). number of fuses and relays depending on the versions. FUSES AND RELAYS ACCESSIBLE B. Headlamp washer timer (where re- IN AN EMERGENCY quired). WARNINGThe arrangement of the fus- FROM THE GLOVEBOX es and relays may vary depending on the vices suppliedSome fuses and relays for ser versions and markets. In the event of a sus- on request or only for certain specific mar- A0B0184m pected anomaly, contact Alfa Romeo Au- ket versions are located on a bracket behind thorized Services. the glovebox. A0B0141m A0B0154m 236 fig. 71 fig. 72 fig. 73
