text version of content this owner's manual page from owners manual to the vehicle Daewoo Tico, year of production 1991 - 2001:

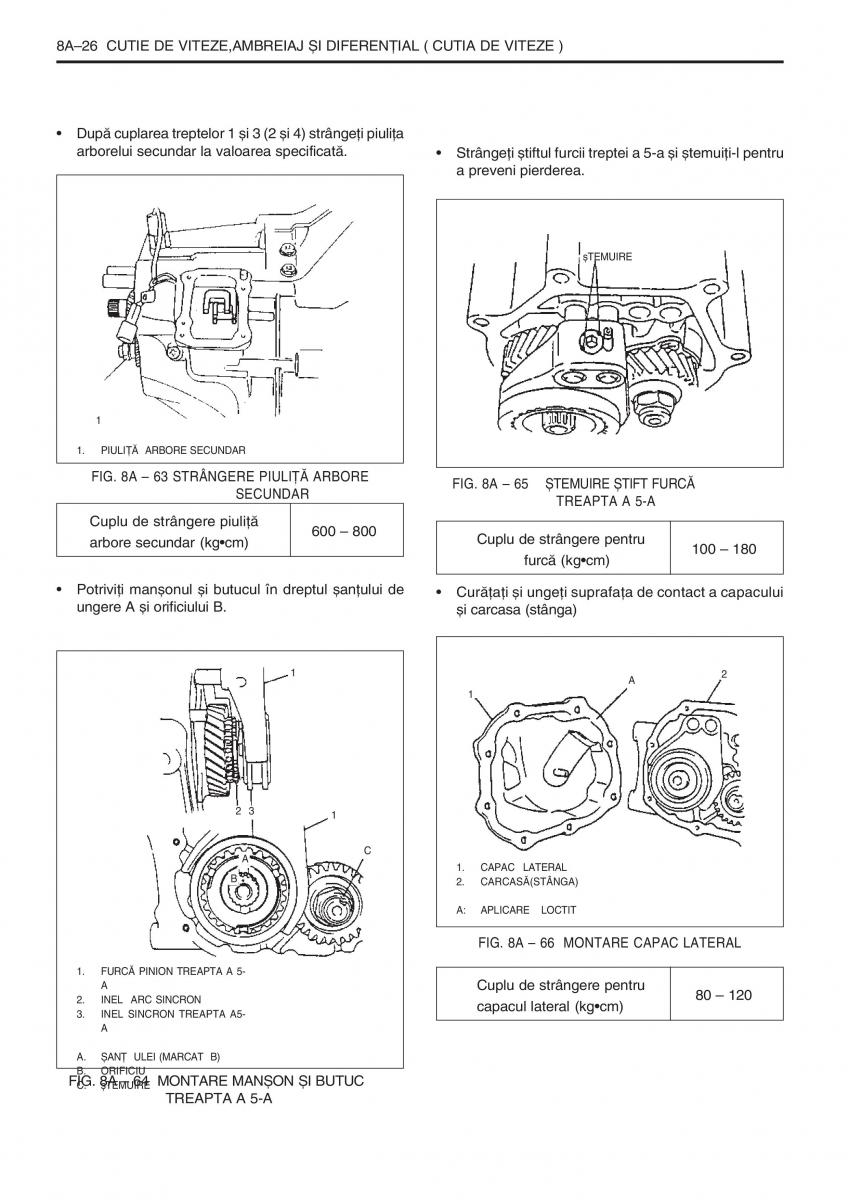

8A26 CUTIE DE VITEZE,AMBREIAJ ªI DIFERENÞIAL ( CUTIA DE VITEZE ) Dupã cuplarea treptelor 1 ºi 3 (2 ºi 4) strângeþi piuliþa arborelui secundar la valoarea specificatã. Strângeþi ºtiftul furcii treptei a 5-a ºi ºtemuiþi-l pentru a preveni pierderea. ºTEMUIRE 1 1. PIULIÞÃ ARBORE SECUNDAR FIG. 8A 63 STRÂNGERE PIULIÞÃ ARBORE FIG. 8A 65ªTEMUIRE ªTIFT FURCÃ SECUNDAR TREAPTA A 5-A Cuplu de strângere piuliþã 600 800 arbore secundar (kgcm) Cuplu de strângere pentru 100 180 furcã (kgcm) Potriviþi manºonul ºi butucul în dreptul ºanþului de Curãþaþi ºi ungeþi suprafaþa de contact a capacului ungere A ºi orificiului B. ºi carcasa (stânga) 1 A 2 1 2 3 1 A C 1. CAPAC LATERAL B 2. CARCASÃ(STÂNGA) A: APLICARE LOCTIT FIG. 8A 66 MONTARE CAPAC LATERAL 1. FURCÃ PINION TREAPTA A 5- A Cuplu de strângere pentru 80 120 2. INEL ARC SINCRON capacul lateral (kgcm) 3. INEL SINCRON TREAPTA A5- A A. ªANÞ ULEI (MARCAT B) B. ORIFICIU FIG. 8A 64 MONTARE MANªON ªI BUTUC C. ºTEMUIRE TREAPTA A 5-A
