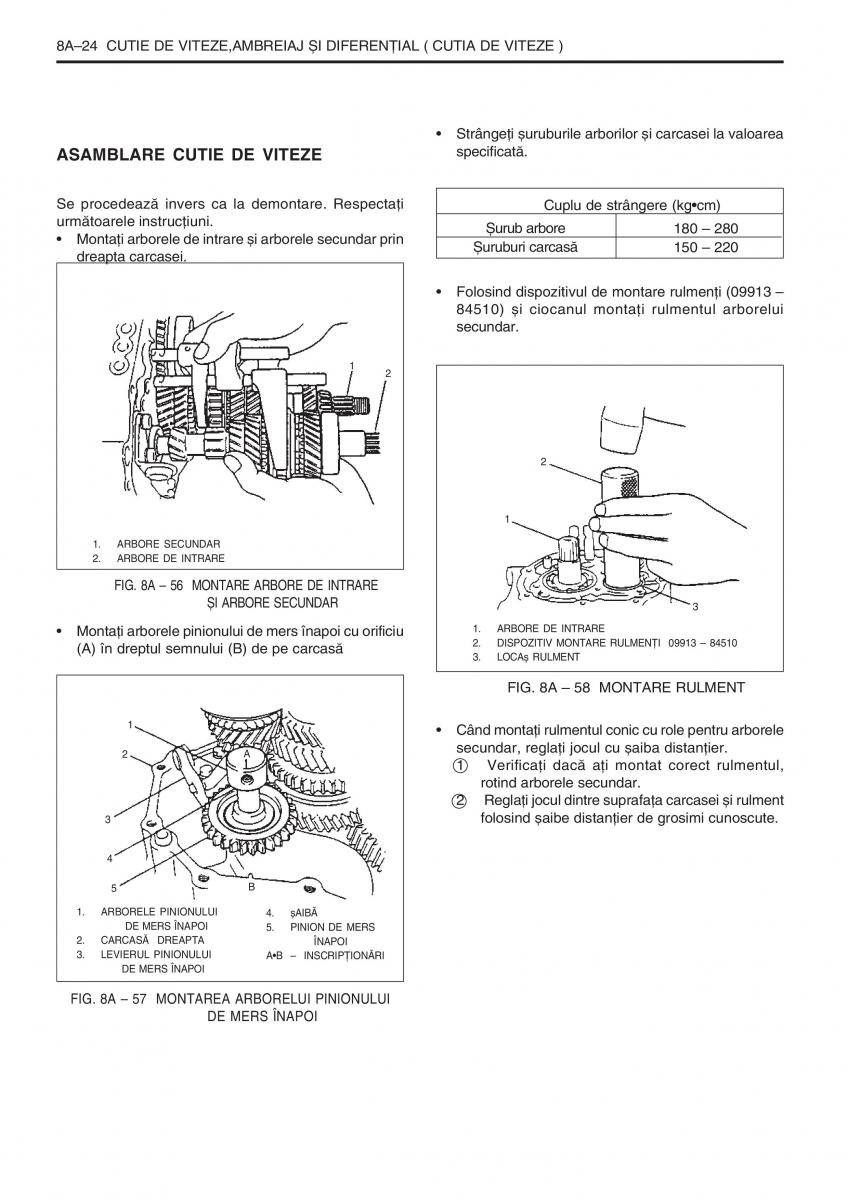

8A24 CUTIE DE VITEZE,AMBREIAJ ªI DIFERENÞIAL ( CUTIA DE VITEZE )
Strângeþi ºuruburile arborilor ºi carcasei la valoarea
ASAMBLARE CUTIE DE VITEZE specificatã.
Se procedeazã invers ca la demontare. Respectaþi
Cuplu de strângere (kgcm)
urmãtoarele instrucþiuni. ªurub arbore 180 280
Montaþi arborele de intrare ºi arborele secundar prinªuruburi carcasã 150 220
dreapta carcasei.
Folosind dispozitivul de montare rulmenþi (09913
84510) ºi ciocanul montaþi rulmentul arborelui
secundar.
1 2
2
1
1. ARBORE SECUNDAR
2. ARBORE DE INTRARE
FIG. 8A 56 MONTARE ARBORE DE INTRARE
ªI ARBORE SECUNDAR 3
Montaþi arborele pinionului de mers înapoi cu orificiu1.ARBORE DE INTRARE
(A) în dreptul semnului (B) de pe carcasã 2. DISPOZITIV MONTARE RULMENÞI 09913 84510
3. LOCAº RULMENT
FIG. 8A 58 MONTARE RULMENT
1 Când montaþi rulmentul conic cu role pentru arborele
2 A secundar, reglaþi jocul cu ºaiba distanþier.
1 Verificaþi dacã aþi montat corect rulmentul,
rotind arborele secundar.
2 Reglaþi jocul dintre suprafaþa carcasei ºi rulment
3 folosind ºaibe distanþier de grosimi cunoscute.
4
5 B
1. ARBORELE PINIONULUI 4. ºAIBÃ
DE MERS ÎNAPOI
5. PINION DE MERS
2. CARCASÃ DREAPTA ÎNAPOI
3. LEVIERUL PINIONULUI AB INSCRIPÞIONÃRI
DE MERS ÎNAPOI
FIG. 8A 57 MONTAREA ARBORELUI PINIONULUI
DE MERS ÎNAPOI
