text version of content this owner's manual page from owners manual to the vehicle Mazda MX-5, year of production 2005 - 2014:

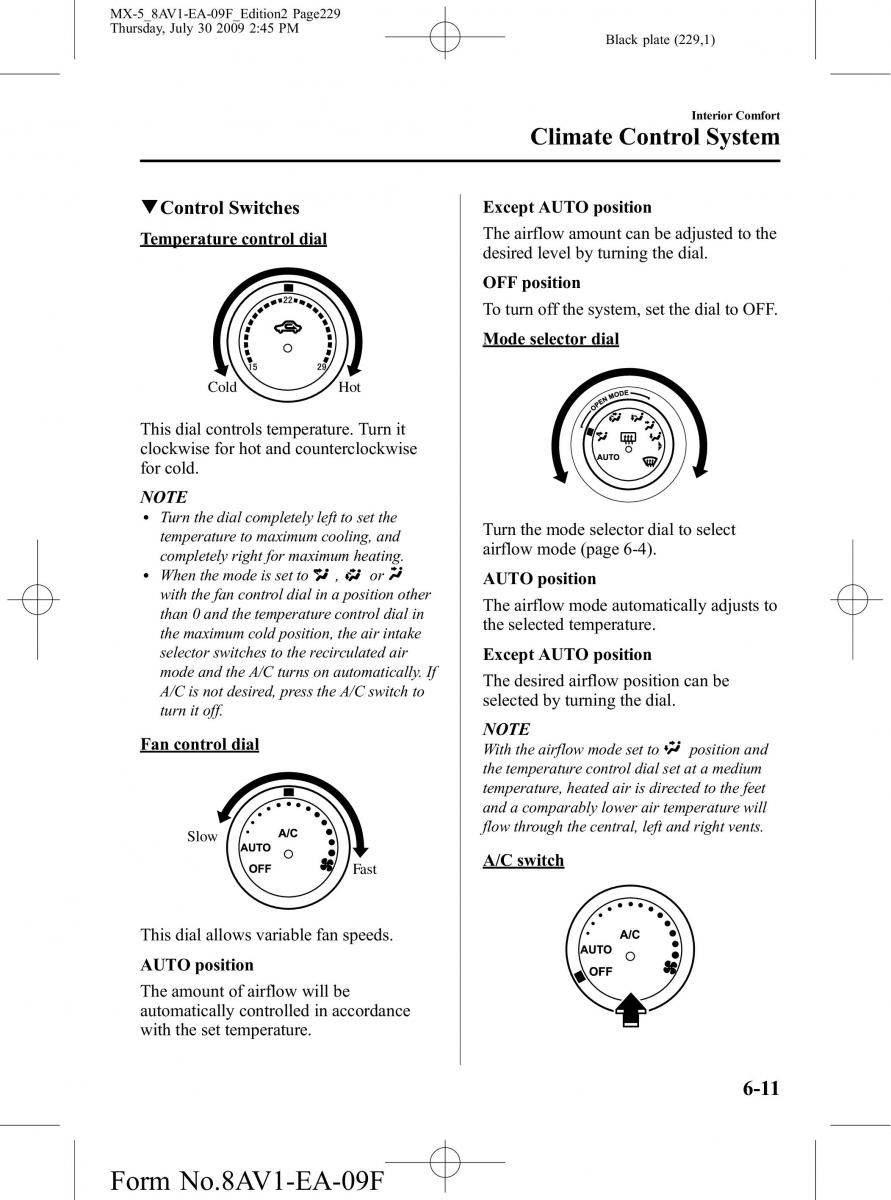

MX-5_8AV1-EA-09F_Edition2 Page229 Thursday, July 30 2009 2:45 PM Black plate (229,1) Interior Comfort Climate Control System qControlSwitches Except AUTOposition Temperaturecontrol dial Theairflow amount can be adjusted to the desired level by turning the dial. OFFposition Toturn off the system, set the dial to OFF. Modeselector dial Cold Hot This dial controls temperature. Turn it clockwise for hot and counterclockwise for cold. NOTE l Turn the dial completely left to set the Turn the mode selector dial to select temperature to maximum cooling, and airflow mode (page 6-4). completely right for maximum heating. l Whenthemodeissetto , or AUTOposition with the fan control dial in a position other Theairflow mode automatically adjusts to than 0 and the temperature control dial in the selected temperature. the maximum cold position, the air intake selector switches to the recirculated air Except AUTOposition modeandtheA/Cturnsonautomatically. If Thedesired airflow position can be A/Cis not desired, press the A/C switch to selected by turning the dial. turn it off. NOTE Fancontrol dial With the airflow mode set to position and the temperature control dial set at a medium temperature, heated air is directed to the feet and a comparably lower air temperature will Slow flow through the central, left and right vents. Fast A/Cswitch This dial allows variable fan speeds. AUTOposition Theamountofairflow will be automatically controlled in accordance with the set temperature. 6-11 Form No.8AV1-EA-09F
