text version of content this owner's manual page from owners manual to the vehicle Mazda MX-5, year of production 2005 - 2014:

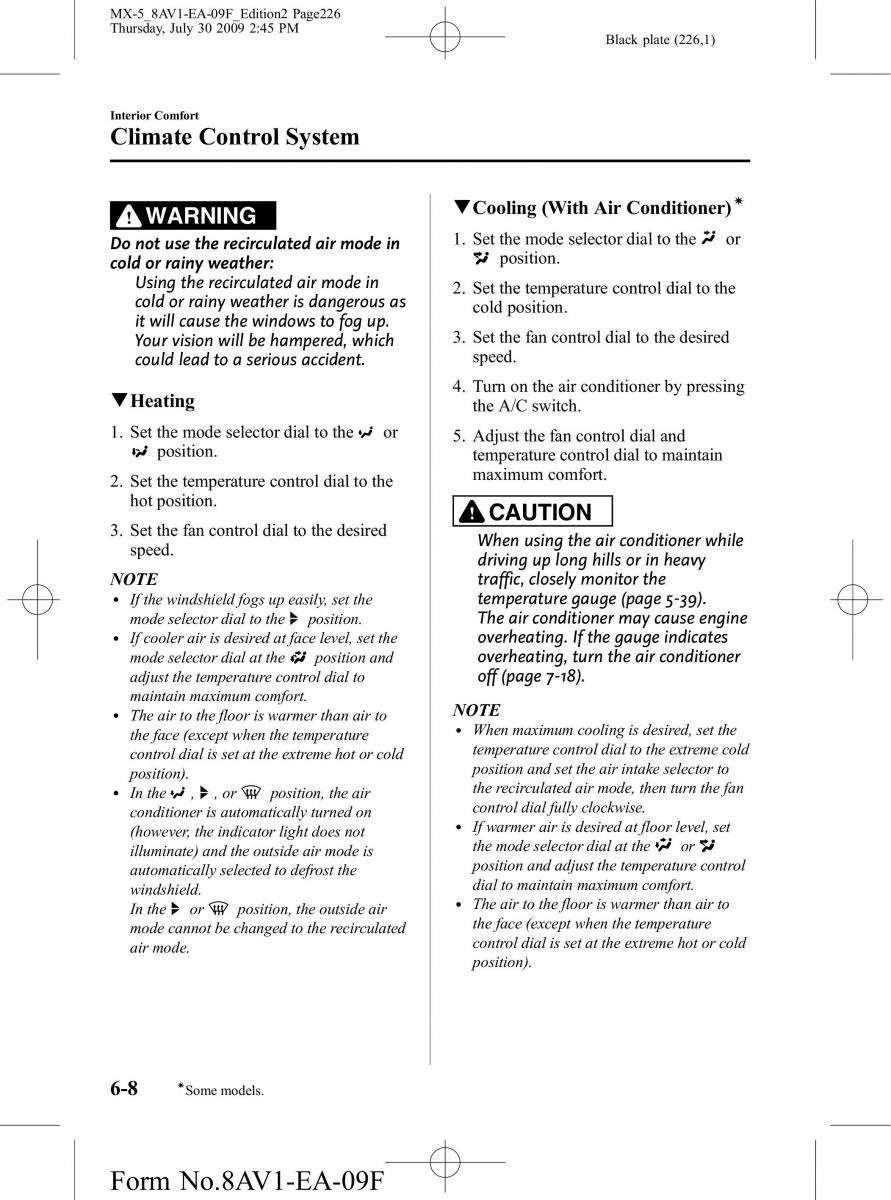

MX-5_8AV1-EA-09F_Edition2 Page226 Thursday, July 30 2009 2:45 PM Black plate (226,1) Interior Comfort Climate Control System WARNING qCooling(WithAirConditioner)í Donotusetherecirculated air mode in 1. Set the mode selector dial to the or cold or rainy weather: position. Using the recirculated air mode in 2. Set the temperature control dial to the cold or rainy weather is dangerous as cold position. it will cause the windows to fog up. Your vision will be hampered, which 3. Set the fan control dial to the desired could lead to a serious accident. speed. qHeating 4. Turn on the air conditioner by pressing the A/C switch. 1. Set the mode selector dial to the or 5. Adjust the fan control dial and position. temperature control dial to maintain 2. Set the temperature control dial to the maximumcomfort. hot position. CAUTION 3. Set the fan control dial to the desired Whenusingtheairconditioner while speed. driving up long hills or in heavy NOTE traffic, closely monitor the l If the windshield fogs up easily, set the temperature gauge (page 5-39). modeselectordial to the position. The air conditioner may cause engine l If cooler air is desired at face level, set the overheating. If the gauge indicates modeselectordial at the position and overheating, turn the air conditioner adjust the temperature control dial to off (page 7-18). maintain maximum comfort. l Theair to the floor is warmer than air to NOTE the face (except when the temperature l Whenmaximumcoolingisdesired,set the control dial is set at the extreme hot or cold temperature control dial to the extreme cold position). position and set the air intake selector to l In the , ,or position, the air the recirculated air mode, then turn the fan conditioner is automatically turned on control dial fully clockwise. (however, the indicator light does not l If warmer air is desired at floor level, set illuminate) and the outside air mode is the mode selector dial at the or automatically selected to defrost the position and adjust the temperature control windshield. dial to maintain maximum comfort. In the or position, the outside air l Theair to the floor is warmer than air to modecannotbechangedtotherecirculated the face (except when the temperature air mode. control dial is set at the extreme hot or cold position). í 6-8 Somemodels. Form No.8AV1-EA-09F
