text version of content this owner's manual page from owners manual to the vehicle Mazda MX-5, year of production 2005 - 2014:

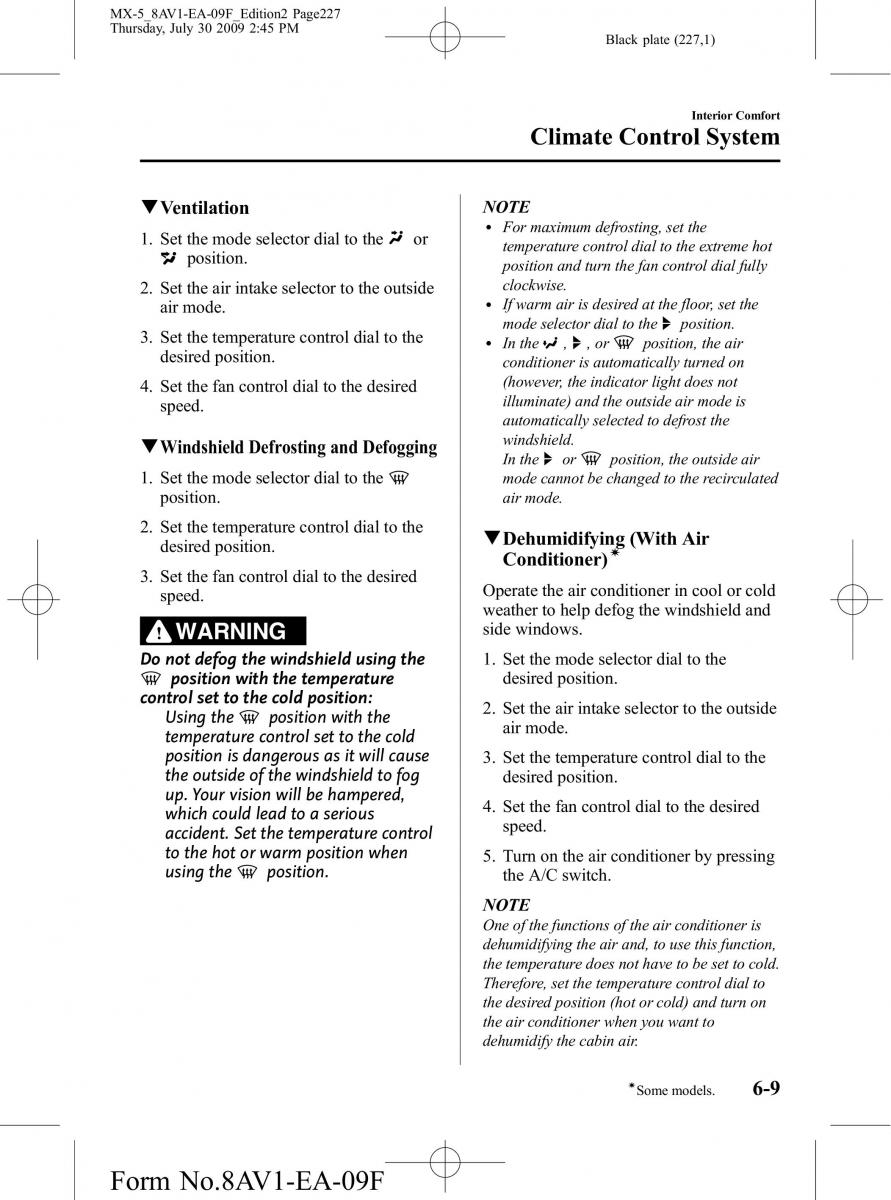

MX-5_8AV1-EA-09F_Edition2 Page227 Thursday, July 30 2009 2:45 PM Black plate (227,1) Interior Comfort Climate Control System qVentilation NOTE 1. Set the mode selector dial to the or l Formaximumdefrosting, set the position. temperature control dial to the extreme hot position and turn the fan control dial fully 2. Set the air intake selector to the outside clockwise. air mode. l If warm air is desired at the floor, set the 3. Set the temperature control dial to the modeselectordial to the position. l In the , ,or position, the air desired position. conditioner is automatically turned on 4. Set the fan control dial to the desired (however, the indicator light does not speed. illuminate) and the outside air mode is automatically selected to defrost the qWindshieldDefrostingandDefogging windshield. In the or position, the outside air 1. Set the mode selector dial to the modecannotbechangedtotherecirculated position. air mode. 2. Set the temperature control dial to the qDehumidifying(WithAir desired position. Conditioner)í 3. Set the fan control dial to the desired Operate the air conditioner in cool or cold speed. weather to help defog the windshield and WARNING side windows. Donotdefogthewindshieldusingthe 1. Set the mode selector dial to the position with the temperature desired position. control set to the cold position: 2. Set the air intake selector to the outside Using the position with the air mode. temperature control set to the cold position is dangerous as it will cause 3. Set the temperature control dial to the the outside of the windshield to fog desired position. up. Your vision will be hampered, 4. Set the fan control dial to the desired which could lead to a serious speed. accident. Set the temperature control to the hot or warm position when 5. Turn on the air conditioner by pressing using the position. the A/C switch. NOTE Oneofthefunctions of the air conditioner is dehumidifying the air and, to use this function, the temperature does not have to be set to cold. Therefore, set the temperature control dial to the desired position (hot or cold) and turn on the air conditioner when you want to dehumidify the cabin air. í Somemodels. 6-9 Form No.8AV1-EA-09F
