Driving systems
225

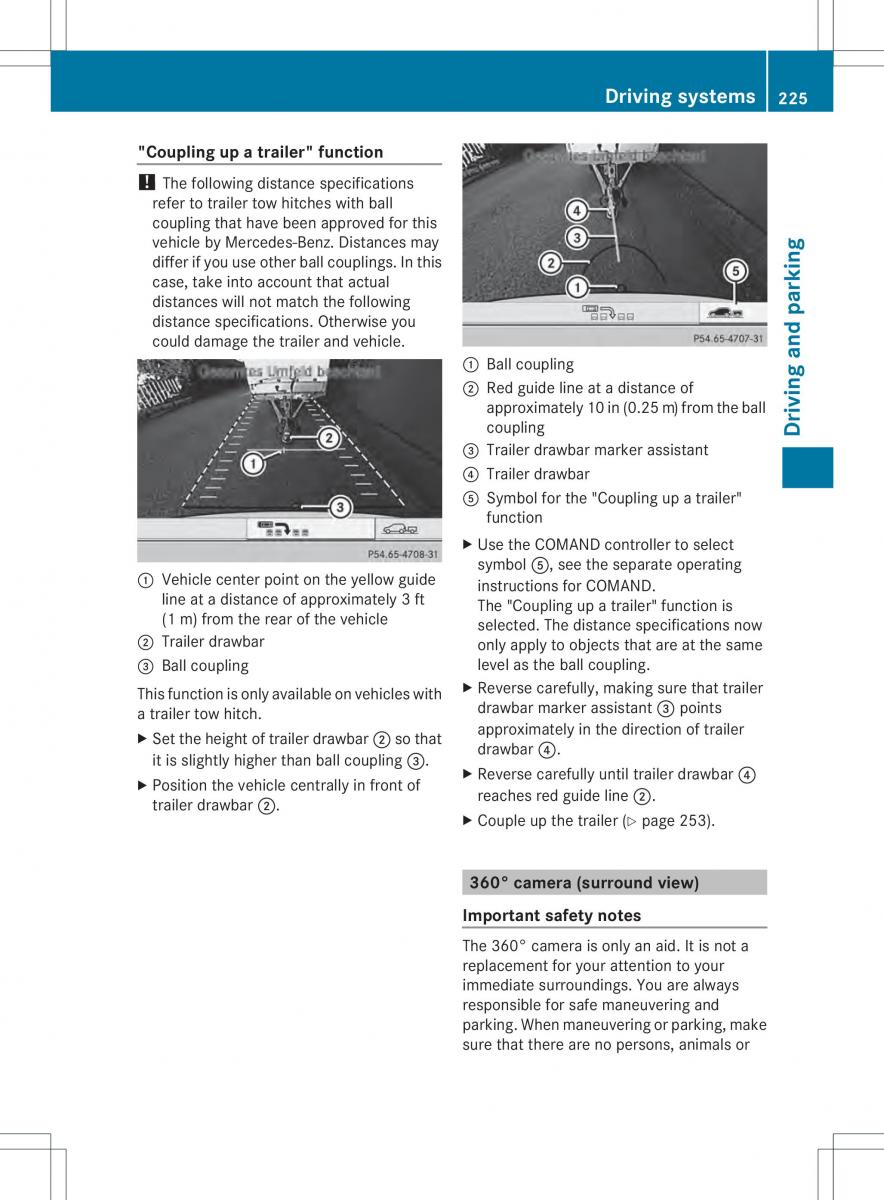

"Coupling up a trailer" function
!
The following distance specifications
refer to trailer tow hitches with ball
coupling that have been approved for this
vehicle by Mercedes-Benz.D istances may
differ if you use other ball couplings. In this
case, take into account that actual
distances will not match the following
distance specifications. Otherwise you
could damage the trailer and vehicle.
: Ball coupling
; Red guide line at a distance of
approximately 10 in (0.25 m) from the ball
parking
and
coupling
Driving
= Trailer drawbar marker assistant
? Trailer drawbar
A Symbol for the "Coupling up a trailer"
function
X
Use the COMAND controlle rt o select
symbol A, see the separate operating
: Vehicle center point on the yellow guide
instructions for COMAND.
line at a distance of approximately 3ft
The "Coupling up a trailer" function is
(1 m) from the rear of the vehicle
selected. The distance specifications now
; Trailer drawbar
only apply to objects that are at the same
= Ball coupling level as the ball coupling.
X
Reverse carefully, making sure that trailer
This function is only available on vehicles with
drawbar marker assistant = points
a trailer tow hitch.
approximately in the direction of trailer
X
Set the height of trailer drawbar ; so that
drawbar ?.
it is slightly higher than ball coupling =.
X
Reverse carefully until trailer drawbar ?
X
Position the vehicle centrally in fron tof
reaches red guide line ;.
trailer drawbar ;.
X Couple up the trailer (Y page 253).
360° camera (surround view)
Important safety notes
The 360° camera is only an aid. It is not a
replacement for your attention to your
immediate surroundings. You are always
responsible for safe maneuvering and
parking. When maneuvering or parking, make
sure that there are no persons, animals or
Z
