Driving systems
228

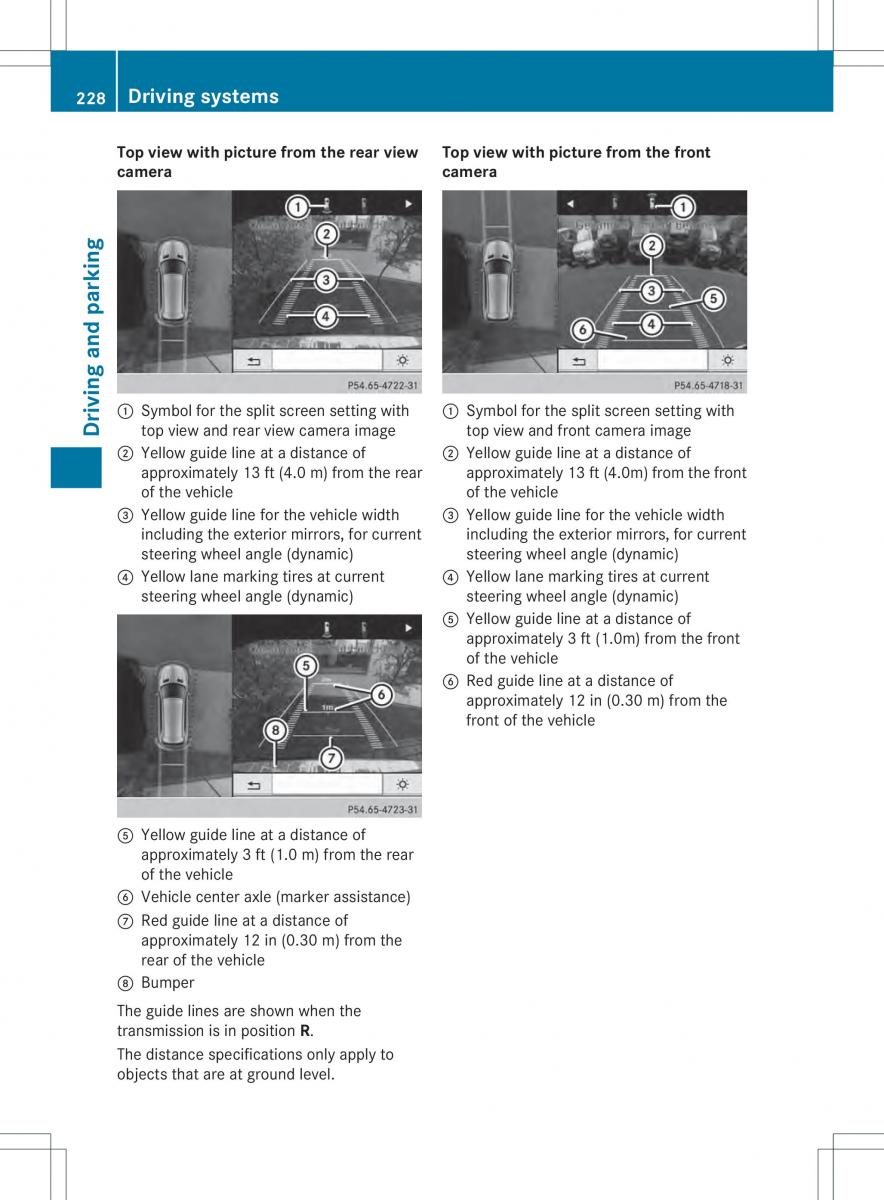

Top view with picture from the rear view Top view with picture from the front
camera camera
: Symbol for the split screen setting with : Symbol for the split screen setting with
parking
and
top view and rea rv iew camera image top view and front camera image
ing
Driv
; Yellow guide line at a distance of ; Yellow guide line at a distance of
approximately 13 ft (4 .0 m) from the rear approximately 13 ft (4 .0m) from the front
of the vehicle of the vehicle
= Yellow guide line for the vehicle width = Yellow guide line for the vehicle width
including the exterior mirrors, for current including the exterior mirrors, for current
steering wheel angle (dynamic) steering wheel angle (dynamic)
? Yellow lane marking tires at current ? Yellow lane marking tires at current
steering wheel angle (dynamic) steering wheel angle (dynamic)
A Yellow guide line at a distance of
approximatel y3ft (1.0m) from the front
of the vehicle
B Red guide line at a distance of
approximately 12 in (0.30 m) from the
front of the vehicle
A Yellow guide line at a distance of
approximately 3 ft (1.0 m) from the rear
of the vehicle
B Vehicle center axle (marker assistance)
C Red guide line at a distance of
approximately 12 in (0.30 m) from the
rear of the vehicle
D Bumper
The guide lines are show nw hen the
transmission is in position R.
The distance specifications only apply to
objects that are at ground level.
