text version of content this owner's manual page from owners manual to the vehicle Mercedes ML, year of production 2011 - 2015:

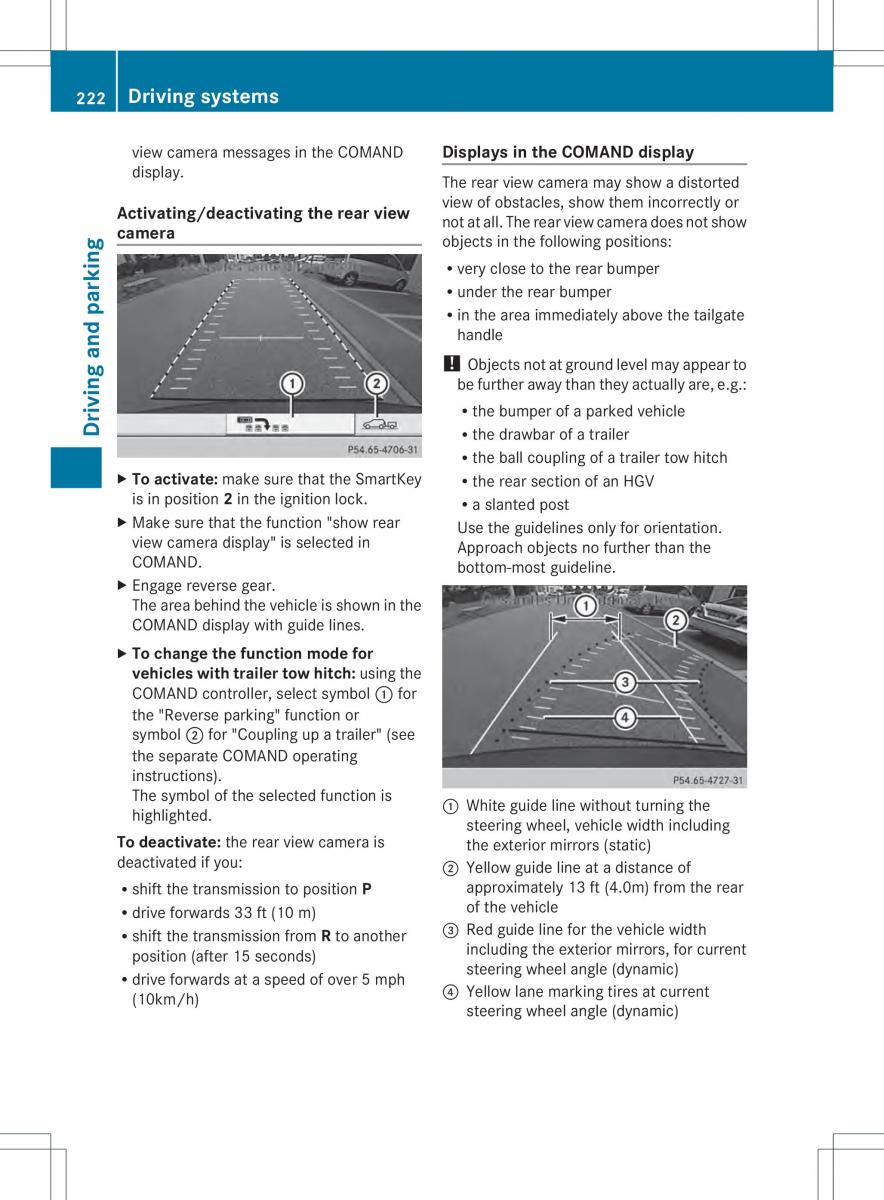

Driving systems 222 view camera messages in the COMAND Displays in the COMAND display display. The rear view camera may show a distorted view of obstacles, show them incorrectly or Activating/deactivating the rear view not at all. The rear view camera does not show camera objects in the following positions: R very close to the rear bumper R under the rear bumper R in the area immediately above the tailgate handle ! Objects not at ground level may appear to be further away than they actually are, e.g.: R the bumper of a parked vehicle parking and Driving R the drawbar of a trailer R the ball coupling of a trailer tow hitch X To activate: make sure that the SmartKey R the rear section of an HGV is in position 2 in the ignition lock. R a slanted post X Make sure that the function "show rear Use the guidelines only for orientation. view camera display" is selected in Approach objects no further than the COMAND. bottom-most guideline. X Engage reverse gear. The area behind the vehicle is show nint he COMAND display with guide lines. X To change the function mode for vehicles with trailer tow hitch: using the COMAND controller, select symbol : for the "Reverse parking" function or symbol ; for "Coupling up a trailer" (see the separate COMAND operating instructions). The symbol of the selected function is : White guide line without turning the highlighted. steering wheel, vehicle width including To deactivate: the rear view camera is the exterior mirrors (static) deactivated if you: ; Yellow guide line at a distance of R approximately 13 ft (4.0m) from the rear shift the transmission to position P of the vehicle R drive forwards 33 ft (10 m) = Red guide line for the vehicle width R shift the transmission from R to another including the exterior mirrors, for current position (after 15 seconds) steering wheel angle (dynamic) R drive forwards at a speed of over 5m ph ? Yellow lane marking tires at current (10km/h) steering wheel angle (dynamic)
