text version of content this owner's manual page from owners manual to the vehicle Daewoo Tico, year of production 1991 - 2001:

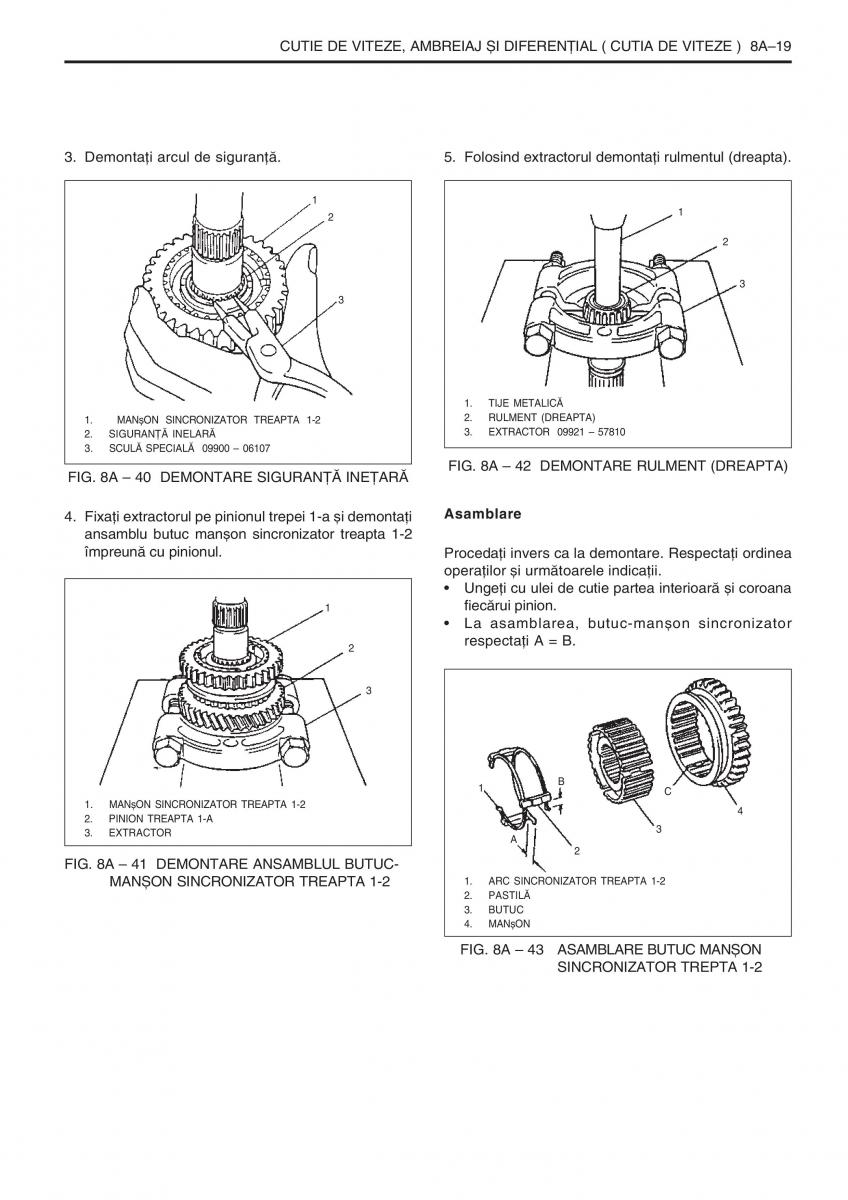

CUTIE DE VITEZE, AMBREIAJ ªI DIFERENÞIAL ( CUTIA DE VITEZE ) 8A19 3. Demontaþi arcul de siguranþã. Folosind extractorul demontaþi rulmentul (dreapta).5. 1 2 1 2 3 3 1. TIJE METALICÃ 2. RULMENT (DREAPTA) 1. MANºON SINCRONIZATOR TREAPTA 1-2 2. SIGURANÞÃ INELARÃ 3. EXTRACTOR 09921 57810 3. SCULÃ SPECIALÃ 09900 06107 FIG. 8A 40 DEMONTARE SIGURANÞÃ INEÞARÃ FIG. 8A 42 DEMONTARE RULMENT (DREAPTA) 4. Fixaþi extractorul pe pinionul trepei 1-a ºi demontaþiAsamblare ansamblu butuc manºon sincronizator treapta 1-2 împreunã cu pinionul. Procedaþi invers ca la demontare. Respectaþi ordinea operaþilor ºi urmãtoarele indicaþii. Ungeþi cu ulei de cutie partea interioarã ºi coroana 1 fiecãrui pinion. La asamblarea, butuc-manºon sincronizator 2 respectaþi A = B. 3 1 B C 1. MANºON SINCRONIZATOR TREAPTA 1-2 4 2. PINION TREAPTA 1-A 3. EXTRACTOR 3 A 2 FIG. 8A 41 DEMONTARE ANSAMBLUL BUTUC- 1. ARC SINCRONIZATOR TREAPTA 1-2 MANªON SINCRONIZATOR TREAPTA 1-2 2. PASTILÃ 3. BUTUC 4. MANºON FIG. 8A 43 ASAMBLARE BUTUC MANªON SINCRONIZATOR TREPTA 1-2
