text version of content this owner's manual page from owners manual to the vehicle Daewoo Tico, year of production 1991 - 2001:

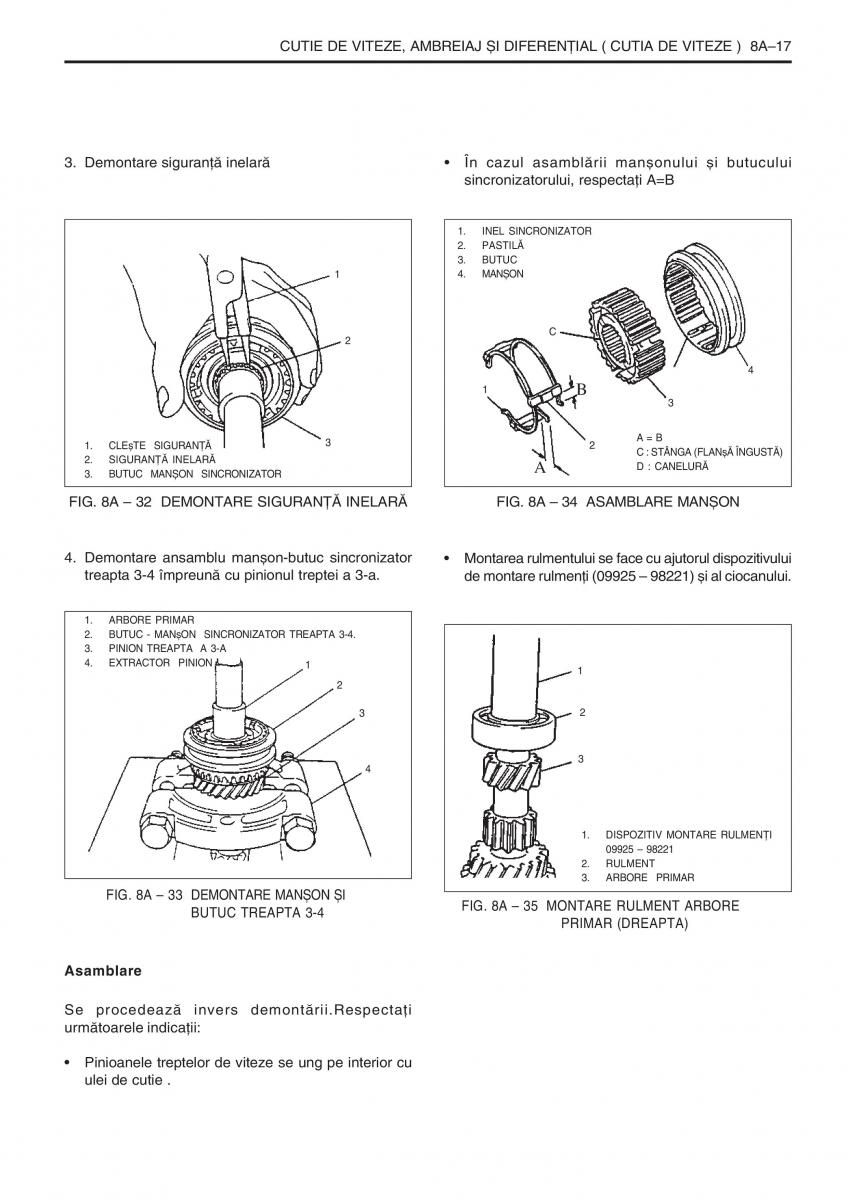

CUTIE DE VITEZE, AMBREIAJ ªI DIFERENÞIAL ( CUTIA DE VITEZE ) 8A17 3. Demontare siguranþã inelarã Îcazul asamblãrii manºonului ºi butuculuin sincronizatorului, respectaþi A=B 1. INEL SINCRONIZATOR 2. PASTILÃ 3. BUTUC 1 4. MANªON 2 C 4 1 B 3 1. CLEºTE SIGURANÞÃ 3 2 A = B 2. SIGURANÞÃ INELARÃ C : STÂNGA (FLANºÃ ÎNGUSTÃ) 3. BUTUC MANªON SINCRONIZATOR A D : CANELURÃ FIG. 8A 32 DEMONTARE SIGURANÞÃ INELARÃ FIG. 8A 34 ASAMBLARE MANªON 4. Demontare ansamblu manºon-butuc sincronizator Montarea rulmentului se face cu ajutorul dispozitivului treapta 3-4 împreunã cu pinionul treptei a 3-a. de montare rulmenþi (09925 98221) ºi al ciocanului. 1. ARBORE PRIMAR 2. BUTUC - MANºON SINCRONIZATOR TREAPTA 3-4. 3. PINION TREAPTA A 3-A 4. EXTRACTOR PINION 1 1 2 3 2 3 4 1. DISPOZITIV MONTARE RULMENÞI 09925 98221 2. RULMENT 3. ARBORE PRIMAR FIG. 8A 33 DEMONTARE MANªON ªI FIG. 8A 35 MONTARE RULMENT ARBORE BUTUC TREAPTA 3-4 PRIMAR (DREAPTA) Asamblare Se procedeazã invers demontãrii.Respectaþi urmãtoarele indicaþii: Pinioanele treptelor de viteze se ung pe interior cu ulei de cutie .
