text version of content this owner's manual page from owners manual to the vehicle Daewoo Tico, year of production 1991 - 2001:

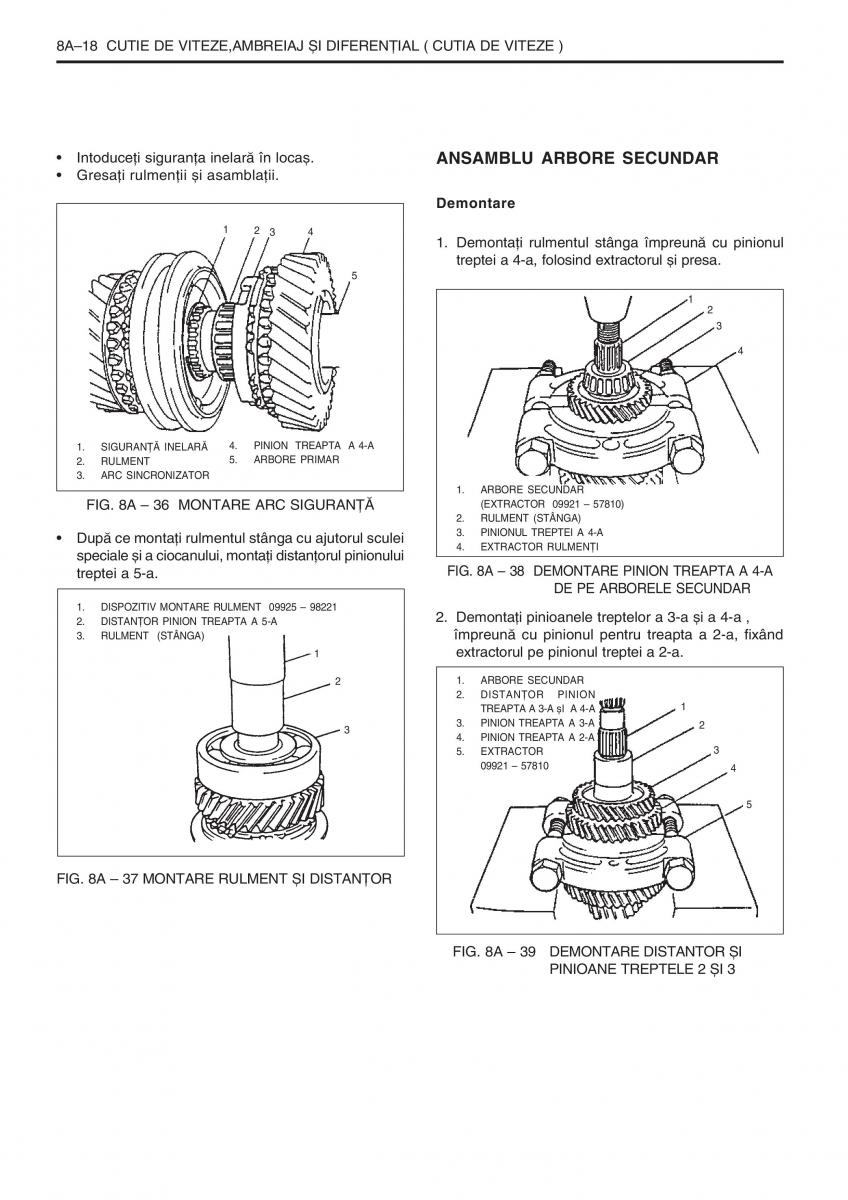

8A18 CUTIE DE VITEZE,AMBREIAJ ªI DIFERENÞIAL ( CUTIA DE VITEZE ) Intoduceþi siguranþa inelarã în locaº. ANSAMBLU ARBORE SECUNDAR Gresaþi rulmenþii ºi asamblaþii. Demontare 1 2 3 4 1. Demontaþi rulmentul stânga împreunã cu pinionul treptei a 4-a, folosind extractorul ºi presa. 5 1 2 3 4 4. PINION TREAPTA A 4-A 1. SIGURANÞÃ INELARÃ 2. RULMENT 5. ARBORE PRIMAR 3. ARC SINCRONIZATOR 1. ARBORE SECUNDAR FIG. 8A 36 MONTARE ARC SIGURANÞÃ (EXTRACTOR 09921 57810) 2. RULMENT (STÂNGA) Dupã ce montaþi rulmentul stânga cu ajutorul sculei3.PINIONUL TREPTEI A 4-A speciale ºi a ciocanului, montaþi distanþorul pinionului4.EXTRACTOR RULMENÞI treptei a 5-a. FIG. 8A 38 DEMONTARE PINION TREAPTA A 4-A DE PE ARBORELE SECUNDAR 1. DISPOZITIV MONTARE RULMENT 09925 98221 2. DISTANÞOR PINION TREAPTA A 5-A 2. Demontaþi pinioanele treptelor a 3-a ºi a 4-a , 3. RULMENT (STÂNGA) împreunã cu pinionul pentru treapta a 2-a, fixând 1 extractorul pe pinionul treptei a 2-a. 2 1. ARBORE SECUNDAR 2. DISTANÞOR PINION TREAPTA A 3-A ºI A 4-A 1 3 3. PINION TREAPTA A 3-A 2 4. PINION TREAPTA A 2-A 5. EXTRACTOR 3 09921 57810 4 5 FIG. 8A 37 MONTARE RULMENT ªI DISTANÞOR FIG. 8A 39 DEMONTARE DISTANTOR ªI PINIOANE TREPTELE 2 ªI 3
