text version of content this owner's manual page from owners manual to the vehicle VW Tiguan, year of production 2016:
AcAccrcroochage echage et t raccorraccordedemement dnt de la re la reemormorquque e

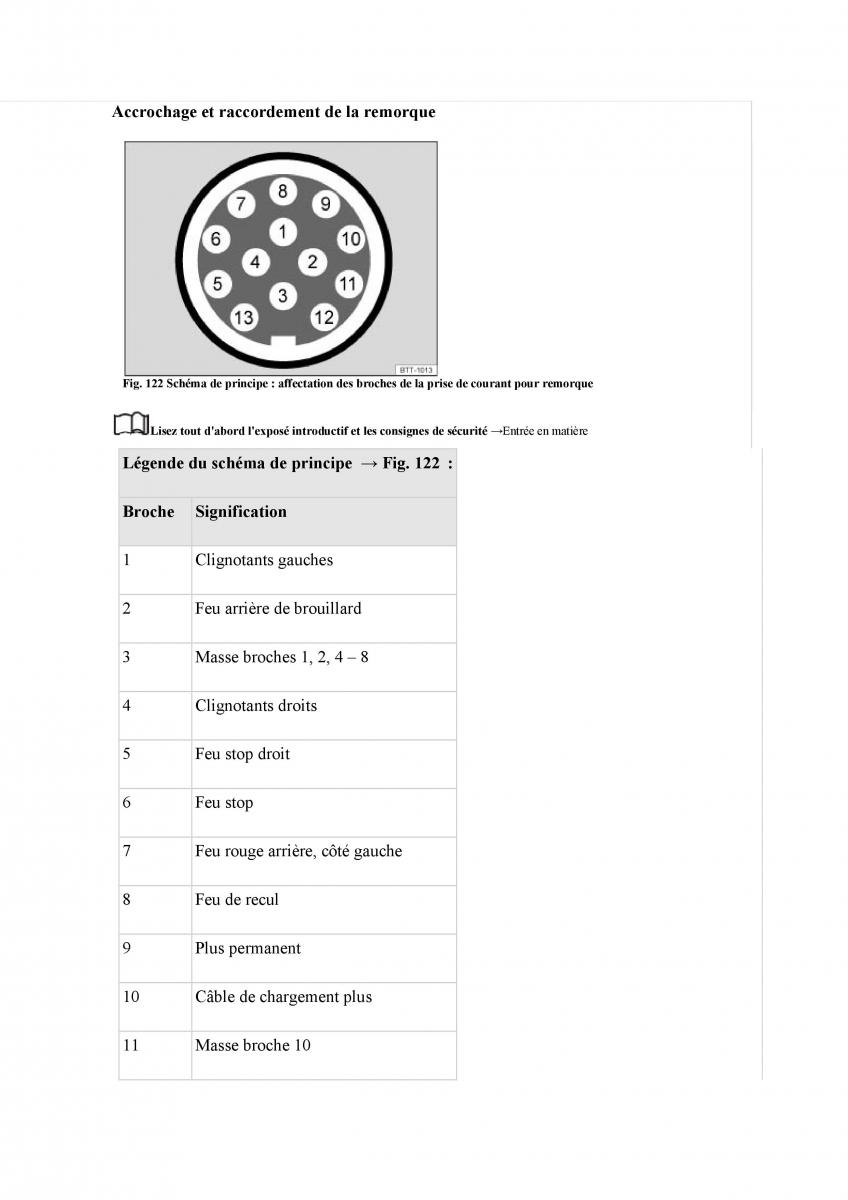

Fig. 122 Schéma de principe : a: affffectationectation des des broch brocheses d de e llaa prise prise de de courcouraant pont pour remorquur remorque e
Lisez z toutout t d'd'aabobord lrd l''exexpoposé intrsé introdoductif et les conuctif et les consignessignes d de e ssécécuuriritté →Entrée en matière
Légende duLégende du schém schéma de a de prinprincipecipe → Fig. 122 :
Broche Signification
1 ClCligignotants gaucnotants gaucheshes
2 FFeu arrièeu arrièrre dee de b brouillardrouillard
3 Masse brMasse brochoches 1,es 1, 2, 4 – 8
4 ClCligignotants droitsnotants droits
5 Feu stop droit
6 Feu stop
7 FFeu reu rououge age arrrière, crière, côté ôté gaucgauchehe
8 Feu de recul
9 Plus permanent
10 Câble deCâble de char charggemeement plunt pluss
11 Masse broche 1010
