text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 147 GTA, year of production 2000 - 2010:

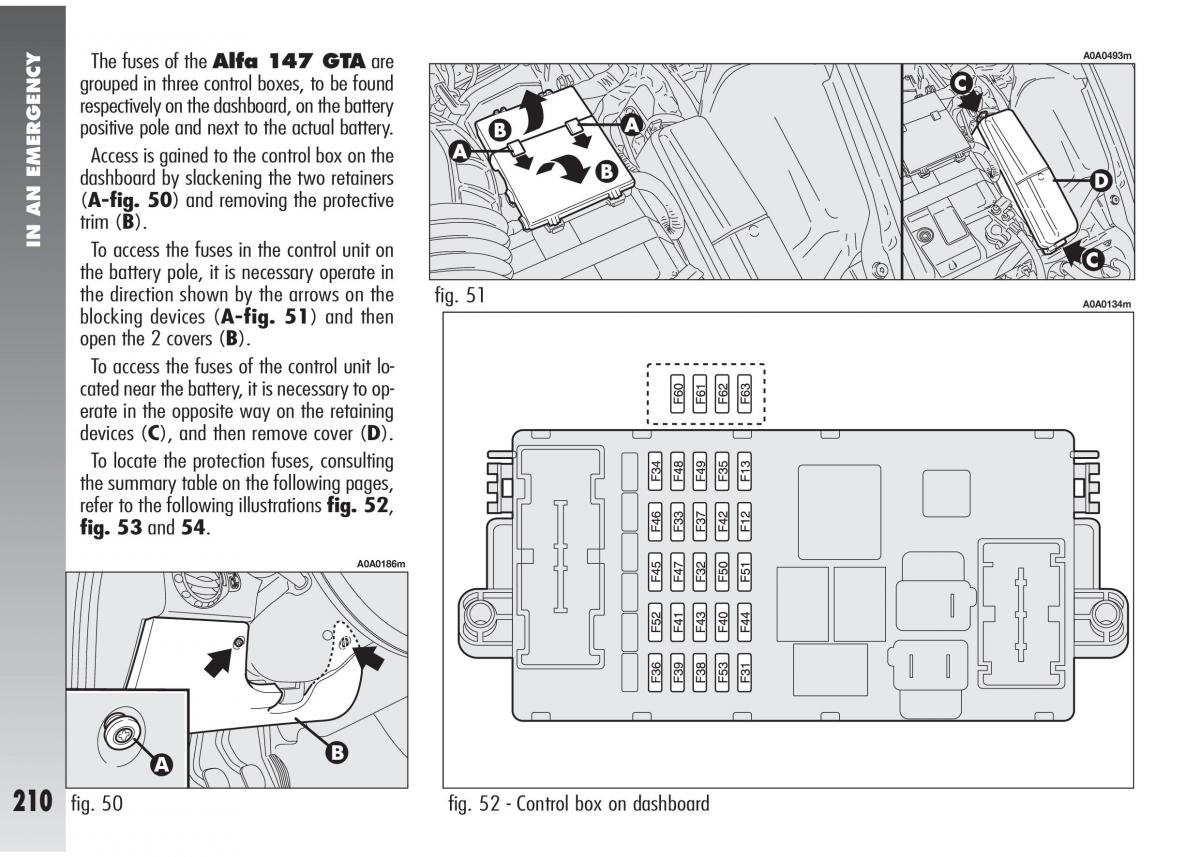

The fuses of the Alfa 147 GTA are A0A0493m grouped in three control boxes, to be found y respectively on the dashboard, on the batter positive pole and next to the actual battery. Access is gained to the control box on the dashboard by slackening the two retainers (A-fig. 50) and removing the protective trim (B). IN AN EMERGENCYTo access the fuses in the control unit on the battery pole, it is necessary operate in the direction shown by the arrows on the fig. 51 A0A0134m blocking devices (A-fig. 51) and then open the 2 covers (B). To access the fuses of the control unit lo- cated near the battery, it is necessary to op- erate in the opposite way on the retaining devices (C), and then remove cover (D). To locate the protection fuses, consulting the summary table on the following pages, refer to the following illustrations fig. 52, fig. 53 and 54. A0A0186m 210 fig. 50 fig. 52 - Control box on dashboard
