text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 147 GTA, year of production 2000 - 2010:

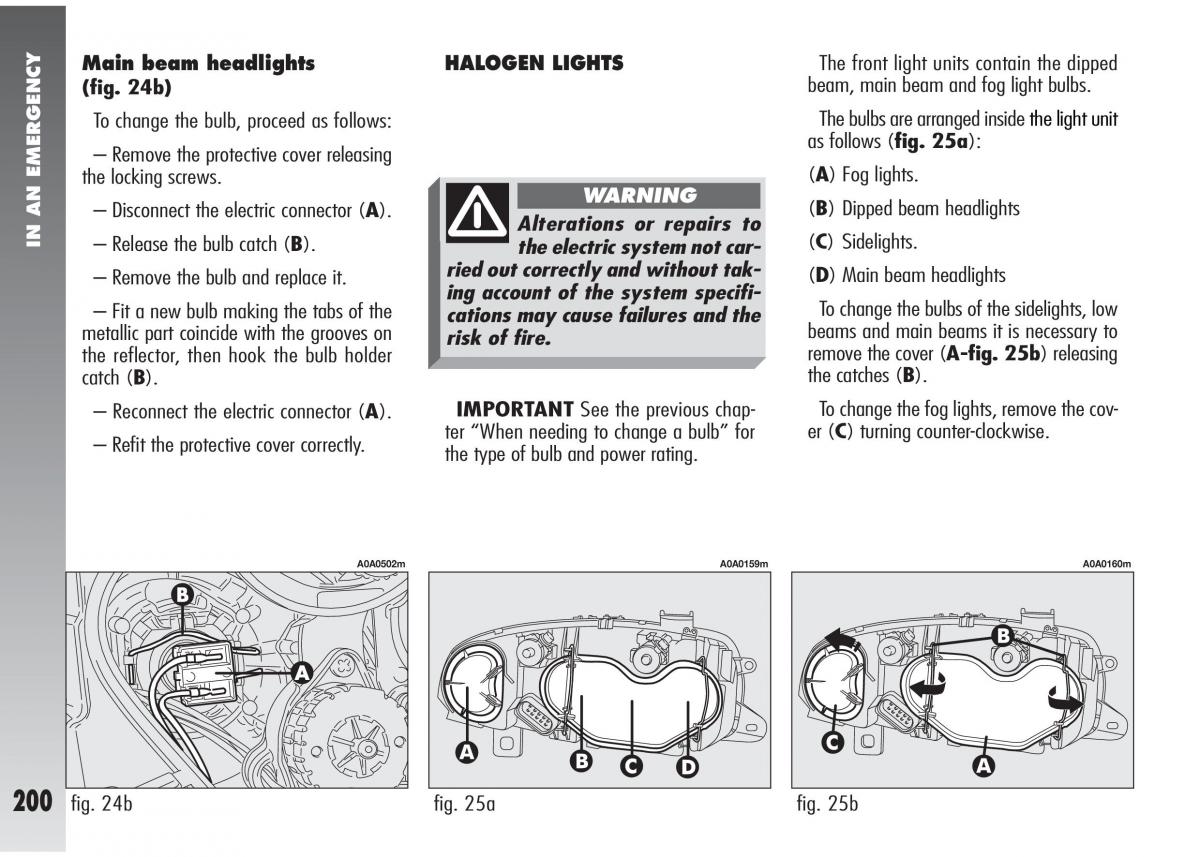

Main beam headlights HALOGEN LIGHTS The front light units contain the dipped (fig. 24b) beam, main beam and fog light bulbs. To change the bulb, proceed as follows: The bulbs are arranged insidethe light unit – Remove the protective cover releasing as follows ( fig. 25a): the locking screws. (A) Fog lights. – Disconnect the electric connector (A). WARNING (B) Dipped beam headlights Alterations or repairs to IN AN EMERGENCY– Release the bulb catch (B). the electric system not car- (C) Sidelights. – Remove the bulb and replace it. ried out correctly and without tak- (D) Main beam headlights ing account of the system specifi- To change the bulbs of the sidelights, low – Fit a new bulb making the tabs of the cations may cause failures and the metallic part coincide with the grooves on risk of fire. beams and main beams it is necessary to the reflector, then hook the bulb holder remove the cover (A-fig. 25b ) releasing catch (B). the catches (B). To change the fog lights, remove the cov- – Reconnect the electric connector (A). IMPORTANTSee the previous chap- – Refit the protective cover correctly. ter “When needing to change a bulb” for er (C) turning counter-clockwise. the type of bulb and power rating. A0A0502m A0A0159m A0A0160m 200 fig. 24b fig. 25a fig. 25b
