text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 147 GTA, year of production 2000 - 2010:

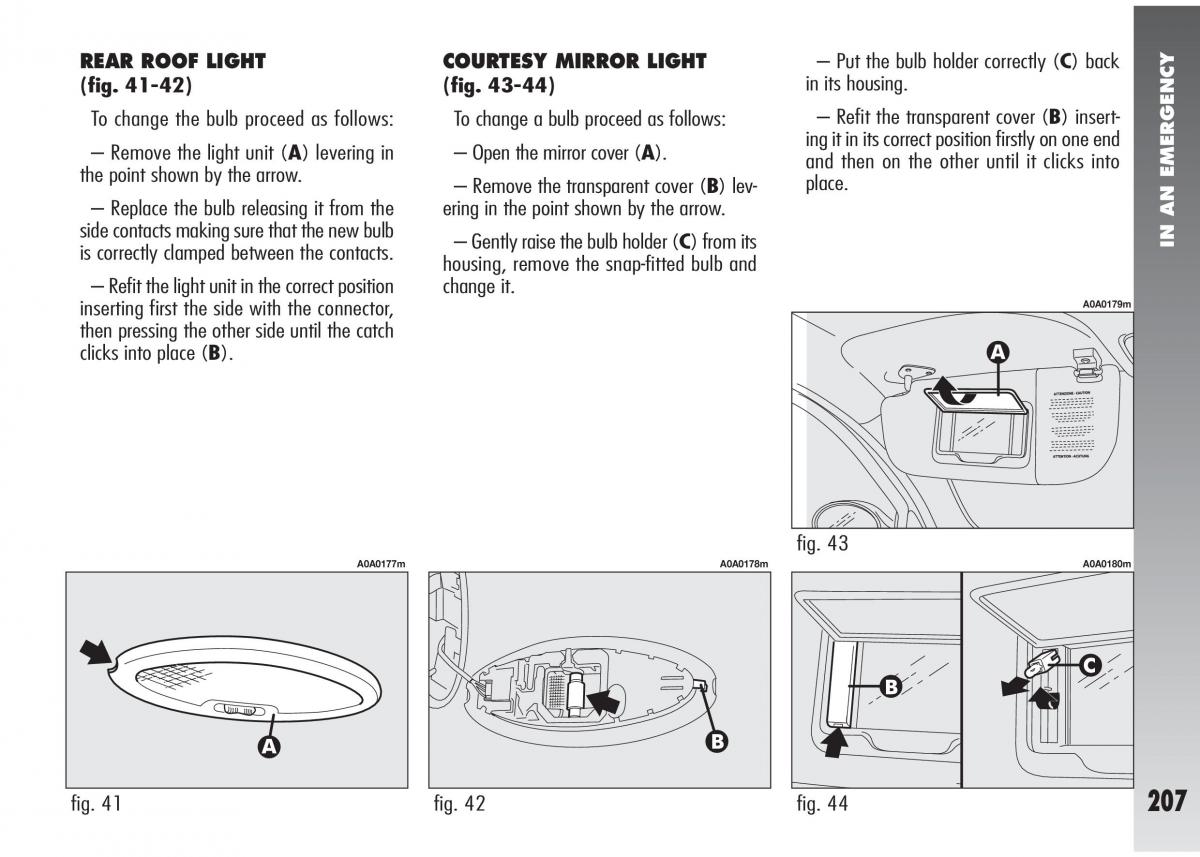

REAR ROOF LIGHT COURTESY MIRROR LIGHT – Put the bulb holder correctly (C) back (fig. 41-42) (fig. 43-44) in its housing. To change the bulb proceed as follows:To change a bulb proceed as follows: – Refit the transparent cover (B) insert- – Remove the light unit (A) levering in – Open the mirror cover (A). ing it in its correct position firstly on one end the point shown by the arrow. and then on the other until it clicks into – Remove the transparent cover ( B) lev- place. – Replace the bulb releasing it from theering in the point shown by the arrow. side contacts making sure that the new bulb is correctly clamped between the contacts. – Gently raise the bulb holder (C) from its IN AN EMERGENCY housing, remove the snap-fitted bulb and – Refit the light unit in the cor rect positionchange it. inserting first the side with the connector, A0A0179m then pressing the other side until the catch clicks into place (B). fig. 43 A0A0177m A0A0178m A0A0180m fig. 41 fig. 42 fig. 44 207
