text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 147 GTA, year of production 2000 - 2010:

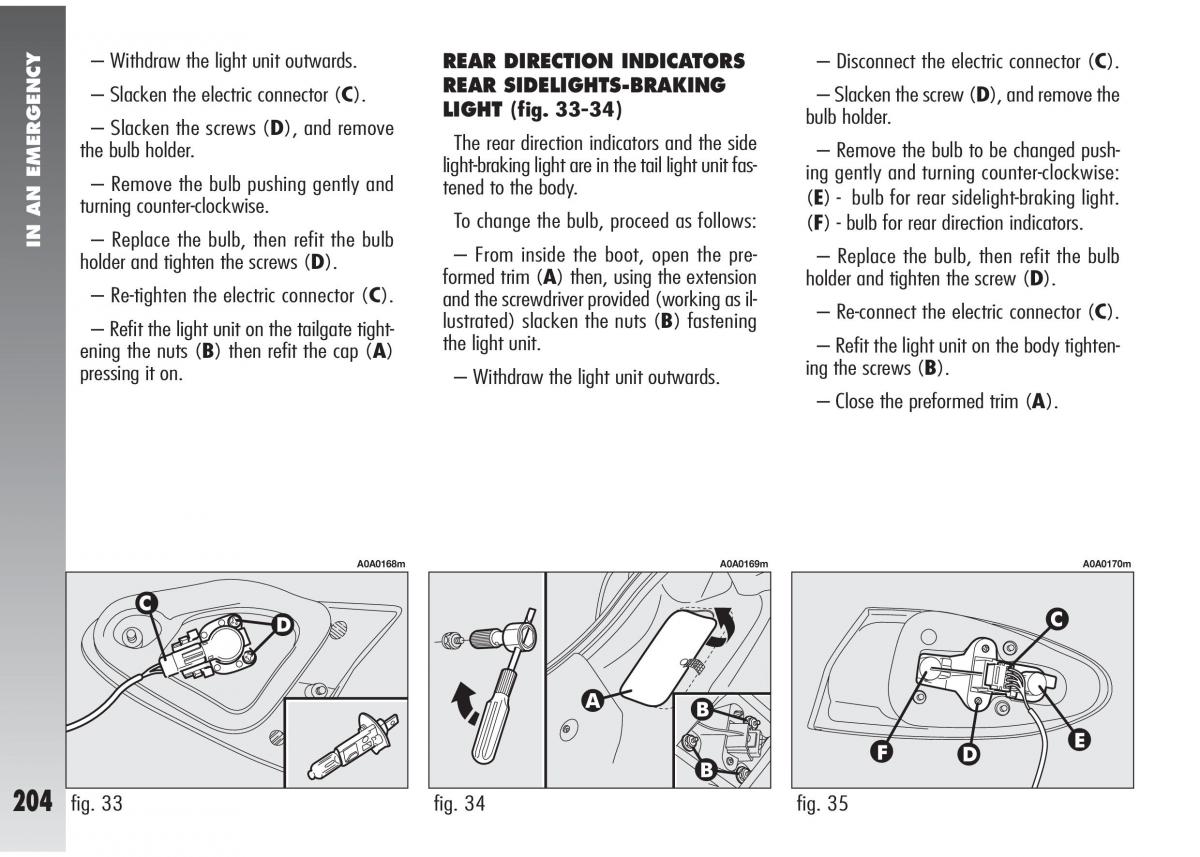

– Withdraw the light unit outwards. REAR DIRECTION INDICATORS – Disconnect the electric connector (C). – Slacken the electric connector (C). REAR SIDELIGHTS-BRAKING – Slacken the screw (D), and remove the – Slacken the screws (D), and remove LIGHT (fig. 33-34) bulb holder. the bulb holder. The rear direction indicators and the side – Remove the bulb to be changed push- light-braking light are in the tail light unit fas-ing gently and turning counter-clockwise: – Remove the bulb pushing gently and tened to the body. (E) - bulb for rear sidelight-braking light. turning counter-clockwise. To change the bulb, proceed as follows: – Replace the bulb, then refit the bulb (F) - bulb for rear direction indicators. IN AN EMERGENCY – From inside the boot, open the pre- holder and tighten the screws (D). – Replace the bulb, then refit the bulb formed trim ( A) then, using the extension holder and tighten the screw (D). – Re-tighten the electric connector (C). and the screwdriver provided (working as il- – Re-connect the electric connector (C). – Refit the light unit on the tailgate tight- lustrated) slacken the nuts (B) fastening ening the nuts (B) then refit the cap (A) the light unit. – Refit the light unit on the body tighten- pressing it on. – Withdraw the light unit outwards. ing the screws ( B). – Close the preformed trim (A). A0A0168m A0A0169m A0A0170m 204 fig. 33 fig. 34 fig. 35
