text version of content this owner's manual page from owners manual to the vehicle Audi S5, year of production 2007:

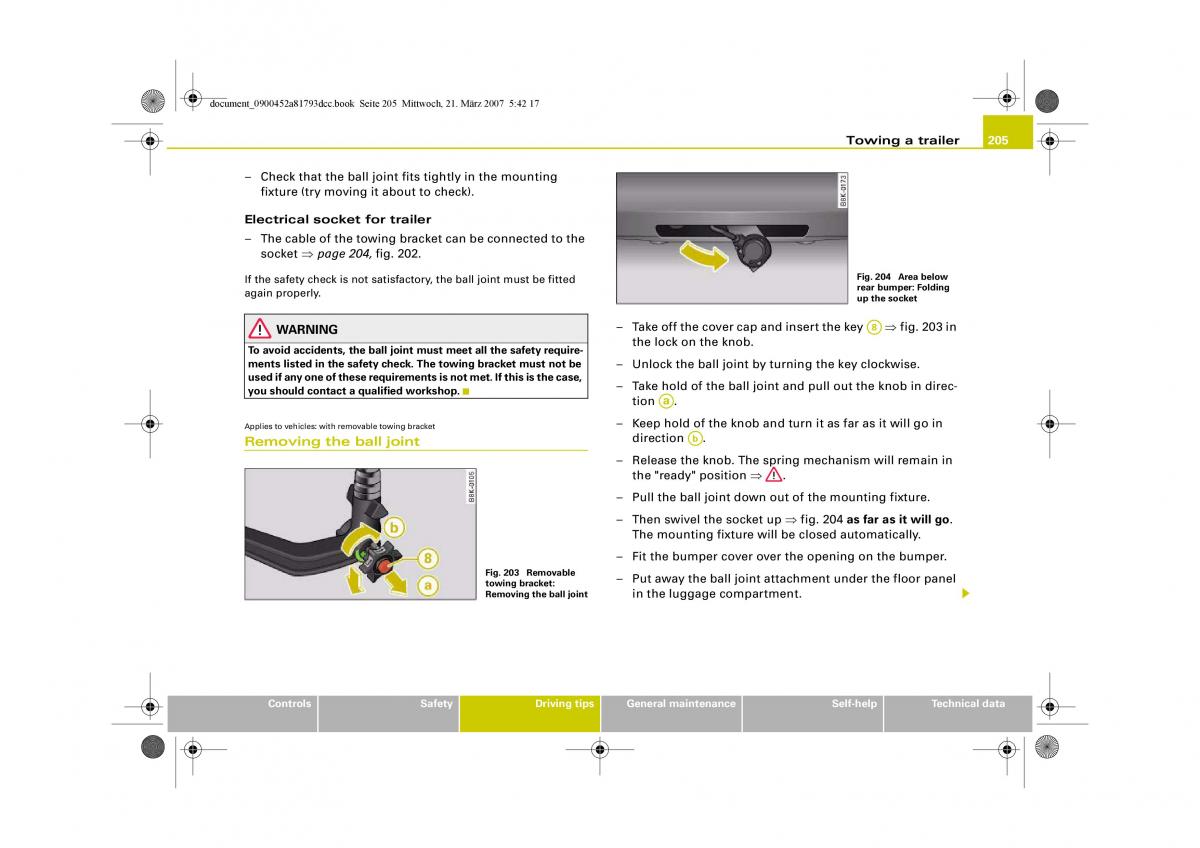

document_0900452a81793dcc.book Seite 205 Mittwoch, 21. März 2007 5:42 17 Towing a trailer 205 – Check that the ball joint fits tightly in the mounting fixture (try moving it about to check). Electrical socket for trailer – The cable of the towing bracket can be connected to the socket ⇒ page 204, fig. 202. If the safety check is not satisfactory, the ball joint must be fitted Fig. 204 Area below again properly. rear bumper: Folding up the socket 8 – Take off the cover cap and insert the key ⇒fig.203 in WARNING A To avoid accidents, the ball joint must meet all the safety require-the lock on the knob. ments listed in the safety check. The towing bracket must not be – Unlock the ball joint by turning the key clockwise. used if any one of these requirements is not met. If this is the case, – Take hold of the ball joint and pull out the knob in direc- you should contact a qualified workshop. a tion .A Applies to vehicles: with removable towing bracket – Keep hold of the knob and turn it as far as it will go in b direction . Removing the ball joint A – Release the knob. The spring mechanism will remain in the "ready" position ⇒ . – Pull the ball joint down out of the mounting fixture. – Then swivel the socket up ⇒ fig. 204 as far as it will go. The mounting fixture will be closed automatically. – Fit the bumper cover over the opening on the bumper. Fig. 203 Removable – Put away the ball joint attachment under the floor panel towing bracket: Removing the ball joint in the luggage compartment. Controls Safety Driving tips General maintenance Self-help Technical data
