text version of content this owner's manual page from owners manual to the vehicle Audi S5, year of production 2007:

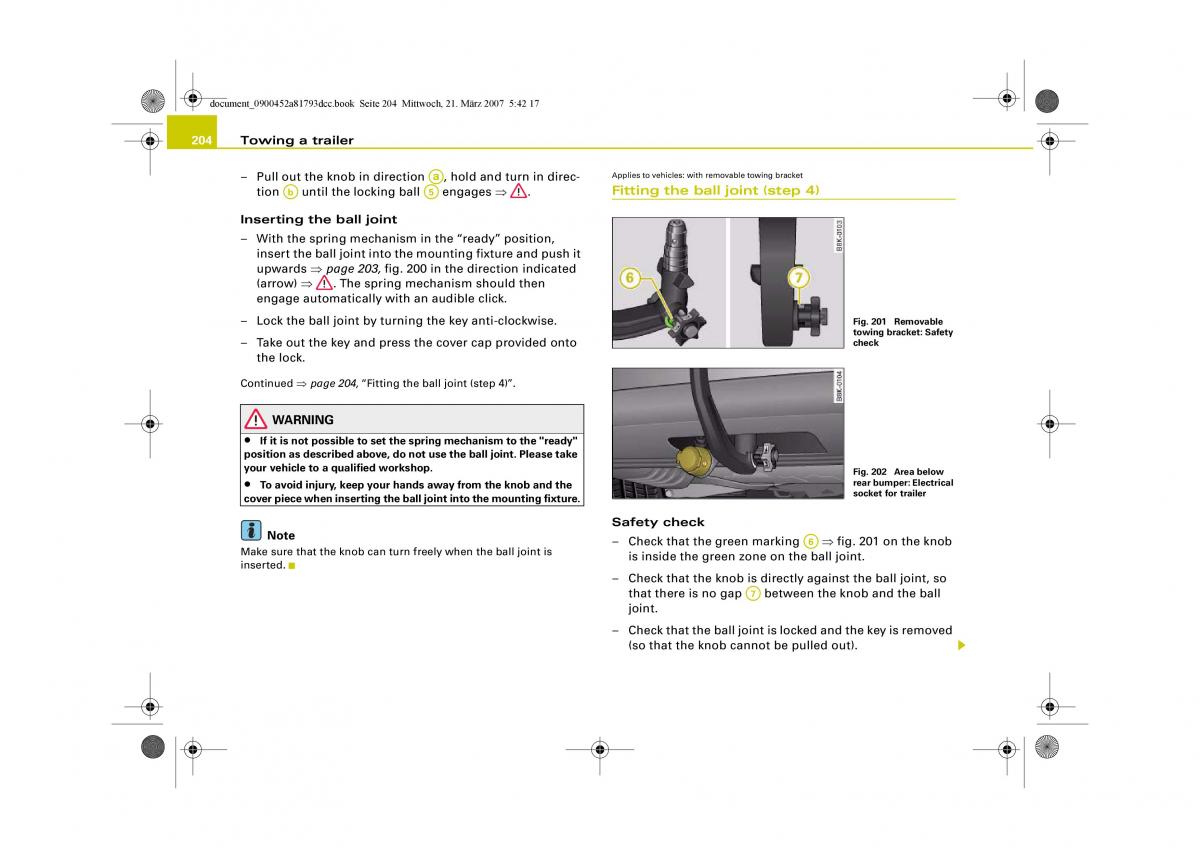

document_0900452a81793dcc.book Seite 204 Mittwoch, 21. März 2007 5:42 17 204 Towing a trailer – Pull out the knob in direction a , hold and turn in direc- Applies to vehicles: with removable towing bracket A tion b until the locking ball 5 engages ⇒ . Fitting the ball joint (step 4) A A Inserting the ball joint – With the spring mechanism in the “ready” position, insert the ball joint into the mounting fixture and push it upwards ⇒page203, fig.200 in the direction indicated (arrow) ⇒ . The spring mechanism should then engage automatically with an audible click. – Lock the ball joint by turning the key anti-clockwise. Fig. 201 Removable towing bracket: Safety – Take out the key and press the cover cap provided onto check the lock. Continued ⇒page204, “Fitting the ball joint (step 4)”. WARNING • If it is not possible to set the spring mechanism to the "ready" position as described abov e, do not use the ball joint. Please take your vehicle to a qualified workshop. Fig. 202 Area below • To avoid injury, keep your hands away from the knob and the rear bumper: Electrical cover piece when inserting the ball joint into the mounting fixture. socket for trailer Safety check Note 6 Make sure that the knob can turn freely when the ball joint is – Check that the green marking A ⇒ fig. 201 on the knob inserted. is inside the green zone on the ball joint. – Check that the knob is directly against the ball joint, so that there is no gap 7 between the knob and the ball A joint. – Check that the ball joint is locked and the key is removed (so that the knob cannot be pulled out).
