text version of content this owner's manual page from owners manual to the vehicle Audi S5, year of production 2007:

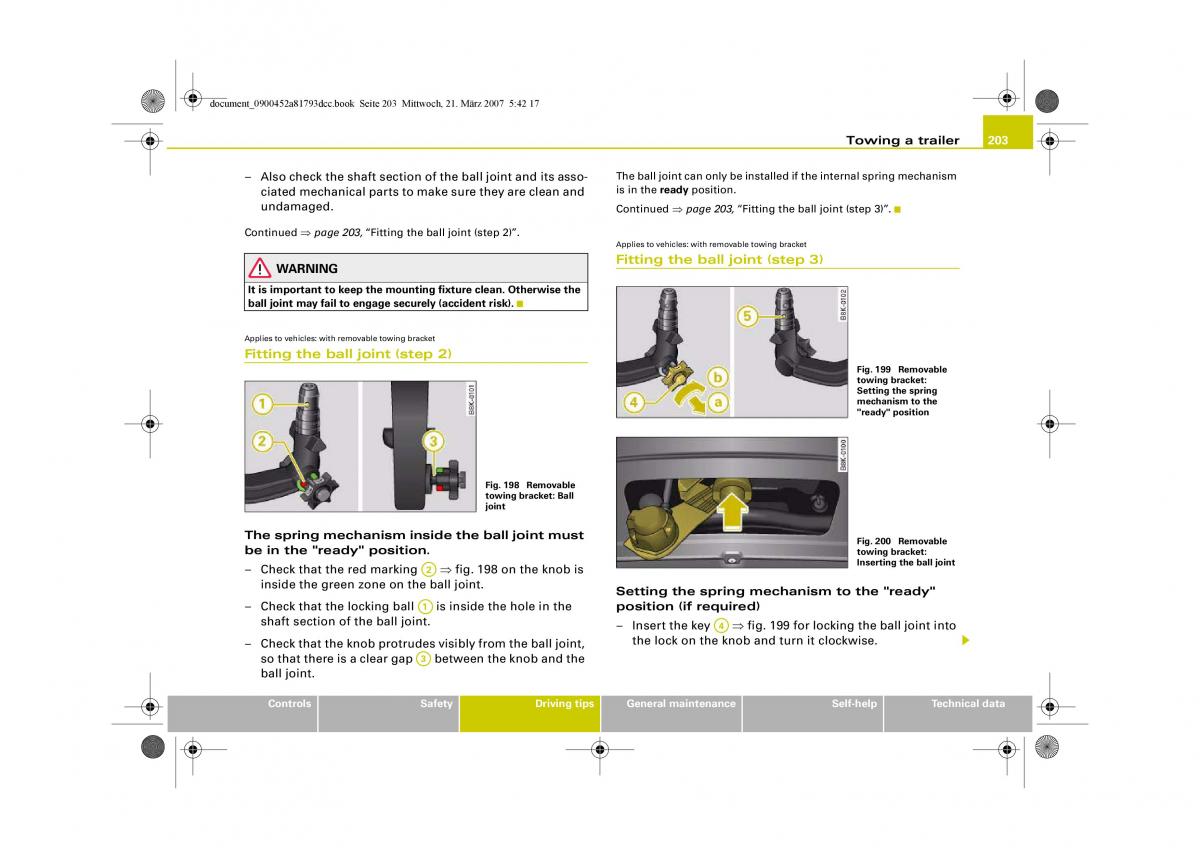

document_0900452a81793dcc.book Seite 203 Mittwoch, 21. März 2007 5:42 17 Towing a trailer 203 – Also check the shaft section of the ball joint and its asso-The ball joint can only be installed if the internal spring mechanism ciated mechanical parts to make sure they are clean and is in the ready position. undamaged. Continued ⇒page203, “Fitting the ball joint (step 3)”. Continued ⇒page203, “Fitting the ball joint (step 2)”. Applies to vehicles: with removable towing bracket WARNING Fitting the ball joint (step 3) It is important to keep the mounting fixture clean. Otherwise the ball joint may fail to engage securely (accident risk). Applies to vehicles: with removable towing bracket Fitting the ball joint (step 2) Fig. 199 Removable towing bracket: Setting the spring mechanism to the "ready" position Fig. 198 Removable towing bracket: Ball joint The spring mechanism inside the ball joint must Fig. 200 Removable be in the "ready" position. towing bracket: – Check that the red marking 2 ⇒ fig. 198 on the knob is Inserting the ball joint A inside the green zone on the ball joint. Setting the spring mechanism to the "ready" – Check that the locking ball 1 is inside the hole in the position (if required) A shaft section of the ball joint. – Insert the key 4 ⇒ fig. 199 for locking the ball joint into A – Check that the knob protrudes visibly from the ball joint, the lock on the knob and turn it clockwise. 3 so that there is a clear gap A between the knob and the ball joint. Controls Safety Driving tips General maintenance Self-help Technical data
