text version of content this owner's manual page from owners manual to the vehicle Nissan Skyline, year of production 1998 - 2002:

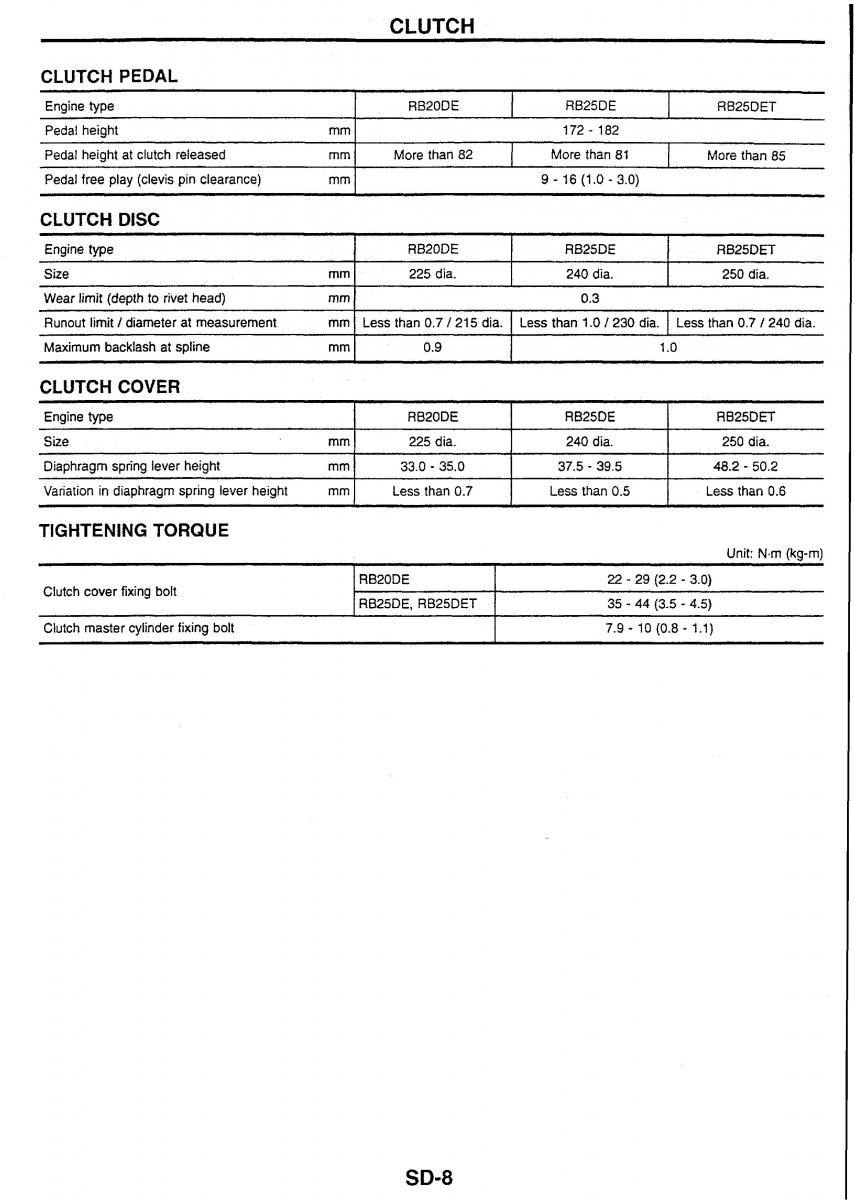

CLUTCH CLUTCH PEDAL Engine type RB20DE RB25DE RB25DET Pedal height mm 172 - 182 Pedal height at clutch released mm More than 82 More than 81 More than 85 Pedal free play (clevis pin clearance) mm 9 - 16 (1.0 - 3.0) CLUTCH DISC Engine type I RB20DE I RB25DE I RB25DET Size mm 225 dia. I 240 dia. I 250 dia. Wear limit (depth to rivet head) mm 0.3 Runout limit / diameter at measurement mm Less than 0.7 / 21 5 dia. Less than 1.0 / 230 dia. Less than 0.7 / 240 dia. Maximum backlash at spline mm 0.9 1 .O CLUTCH COVER Engine type RB20DE RB25DE RB25DET Size mm 225 dia. 240 dia. 250 dia. Diaphragm spring lever height mm 33.0 - 35.0 37.5 - 39.5 48.2 - 50.2 Variation in diaphragm spring lever height mm Less than 0.7 Less than 0.5 Less than 0.6 TIGHTENING TORQUE Unit: N-m (ka-m) Clutch cover fixing bolt Clutch master cylinder fixing bolt I 7.9 - 10 (0.8 - 1 .I)
