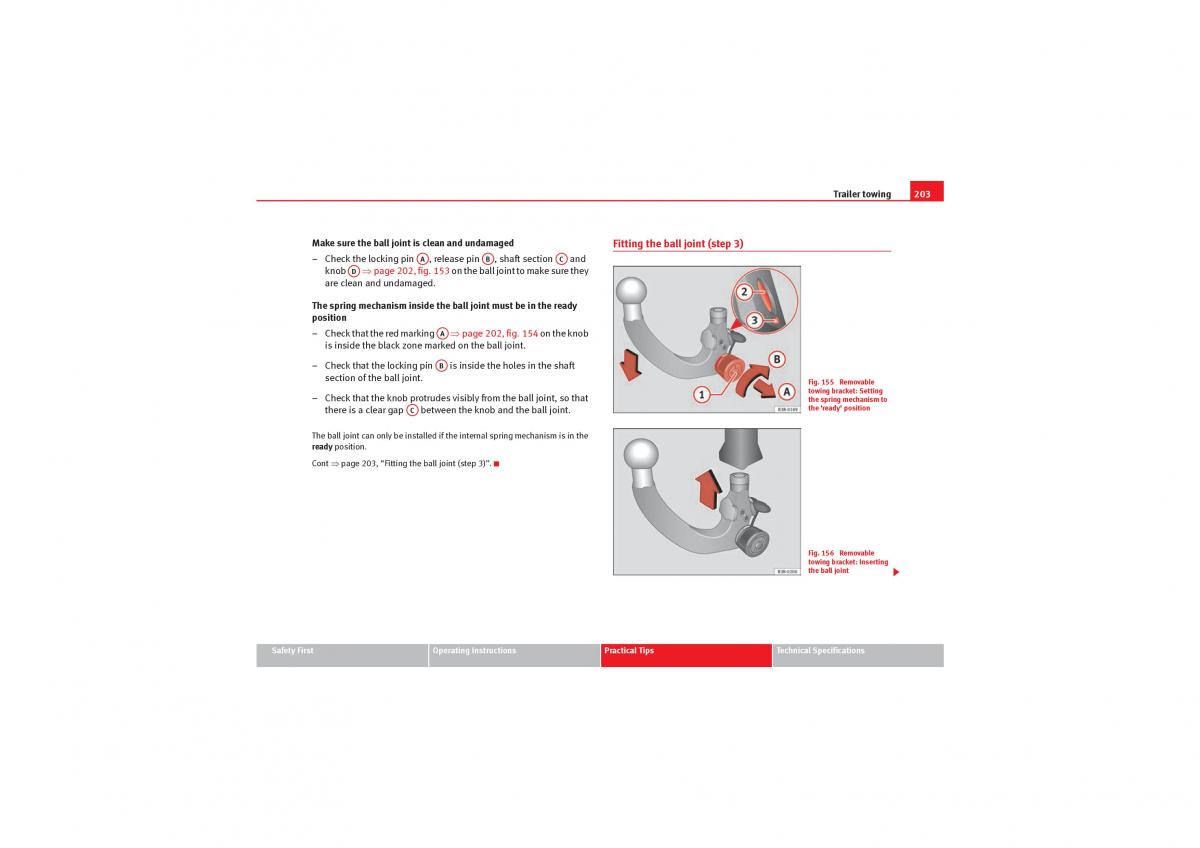

exeo_EN.book Seite 203 Montag, 30. August 2010 4:45 16
Trailer towing 203
Make sure the ball joint is clean and undamaged Fitting the ball joint (step 3)
A B C
– Check the locking pin A, release pin A, shaft section A and
D
knob ⇒page202, fig.153 on the ball joint to make sure they
A
are clean and undamaged.
The spring mechanism inside the ball joint must be in the ready
position
A
– Check that the red marking ⇒page202, fig.154 on the knob
A
is inside the black zone marked on the ball joint.
– Check that the locking pin B is inside the holes in the shaft
A
section of the ball joint. Fig. 155 Removable
– Check that the knob protrudes visibly from the ball joint, so that towing bracket: Setting
the spring mechanism to
there is a clear gap C between the knob and the ball joint. the 'ready' position
A
The ball joint can only be installed if the internal spring mechanism is in the
ready position.
Cont ⇒page203, “Fitting the ball joint (step 3)”.
Fig. 156 Removable
towing bracket: Inserting
the ball joint
