text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 147 GTA, year of production 2000 - 2010:

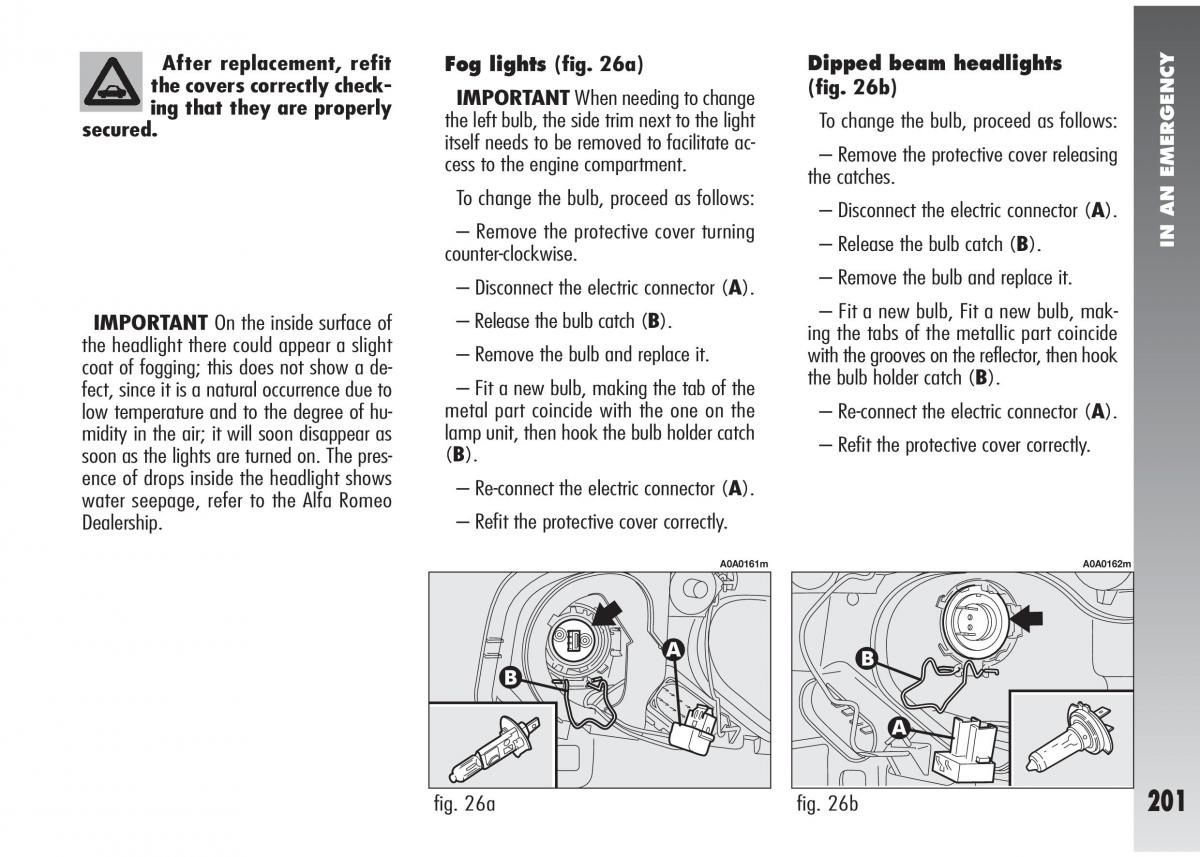

After replacement, refit Dipped beam headlights Fog lights (fig. 26a) the covers correctly check- IMPORTANT When needing to change (fig. 26b) ing that they are properly the left bulb, the side trim next to the light To change the bulb, proceed as follows: secured. itself needs to be removed to facilitate ac- cess to the engine compartment. – Remove the protective cover releasing the catches. To change the bulb, proceed as follows: – Disconnect the electric connector (A). – Remove the protective cover turning counter-clockwise. – Release the bulb catch (B). IN AN EMERGENCY – Disconnect the electric connector (A). – Remove the bulb and replace it. IMPORTANT On the inside surface of – Release the bulb catch (B). – Fit a new bulb, Fit a new bulb, mak- the headlight there could appear a slight ing the tabs of the metallic part coincide – Remove the bulb and replace it. , then hookwith the grooves on the reflector coat of fogging; this does not show a de- the bulb holder catch (B). fect, since it is a natural occurrence due to – Fit a new bulb, making the tab of the metal part coincide with the one on the low temperature and to the degree of hu- – Re-connect the electric connector (A). midity in the air; it will soon disappear as lamp unit, then hook the bulb holder catch – Refit the protective cover correctly. soon as the lights are turned on. The pres- (B). ence of drops inside the headlight shows – Re-connect the electric connector (A). water seepage, refer to the Alfa Romeo Dealership. – Refit the protective cover correctly. A0A0161m A0A0162m fig. 26a fig. 26b 201
