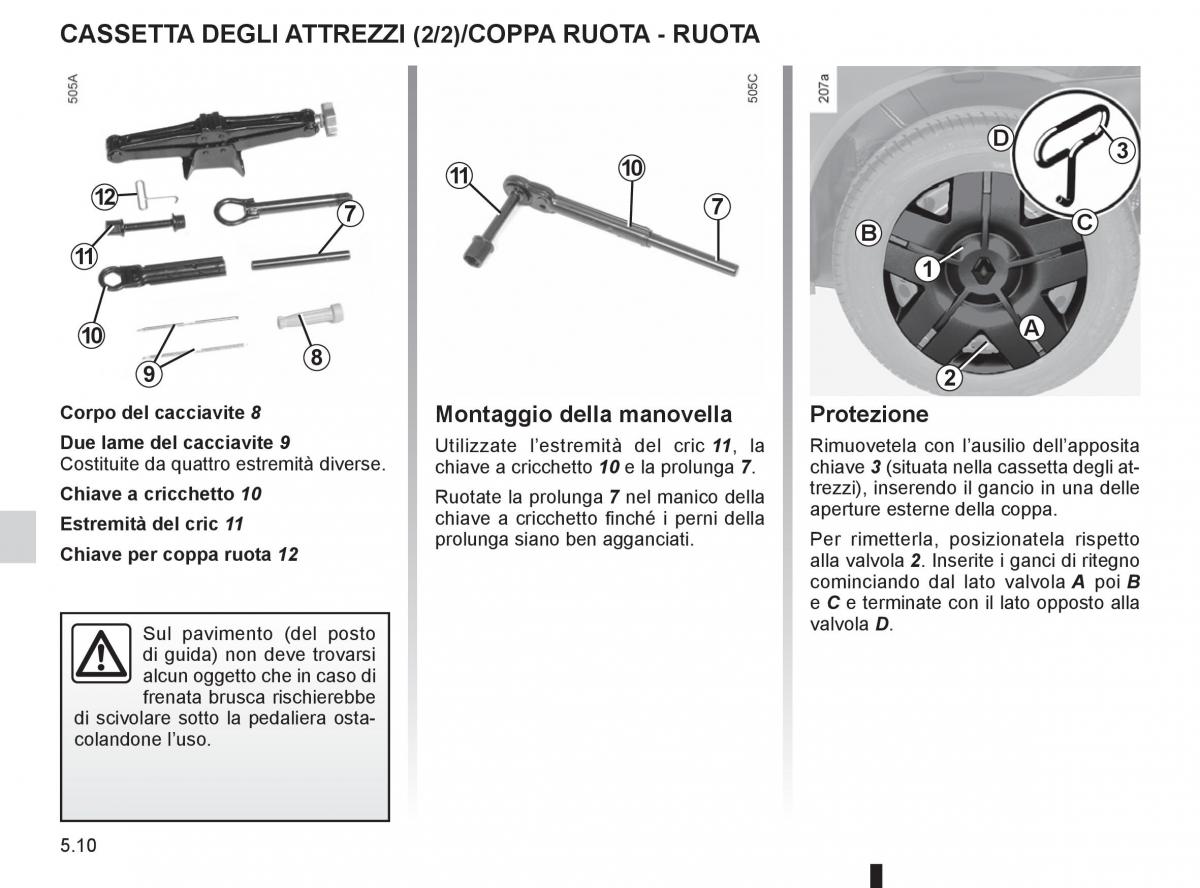

CaSSEtta DEGLI attrEZZI (2/2)/CoPPa ruota - ruota
D 3
11 10
12 7 7
B C
11 1
10 a
9 8 2
Corpo del cacciavite 8 Montaggio della manovella Protezione
Due lame del cacciavite 9 Utilizzate l’estremità del cric 11, la Rimuovetela con l’ausilio dell’apposita
Costituite da quattro estremità diverse. chiave a cricchetto 10 e la prolunga 7. chiave 3 (situata nella cassetta degli at-
Chiave a cricchetto 10 Ruotate la prolunga 7 nel manico della trezzi), inserendo il gancio in una delle
Estremità del cric 11 chiave a cricchetto finché i perni della aperture esterne della coppa.
Chiave per coppa ruota 12 prolunga siano ben agganciati. Per rimetterla, posizionatela rispetto
alla valvola 2. Inserite i ganci di ritegno
cominciando dal lato valvola A poi B
e C e terminate con il lato opposto alla
Sul pavimento (del posto valvola D.
di guida) non deve trovarsi
alcun oggetto che in caso di
frenata brusca rischierebbe
di scivolare sotto la pedaliera osta-
colandone l’uso.
5.10
ITA_UD20692_3
ITA_NU_1009-2_X81_Renault_5 Bloc outil (X81 - Renault)
Enjoliveur - Roue
clé d’enjoliveur (page courante)
manivelle (page courante)
pneumatiques . (page courante)
roues (sécurité). (page courante)
enjoliveurs (page courante)
pneumatiques . (page courante)
