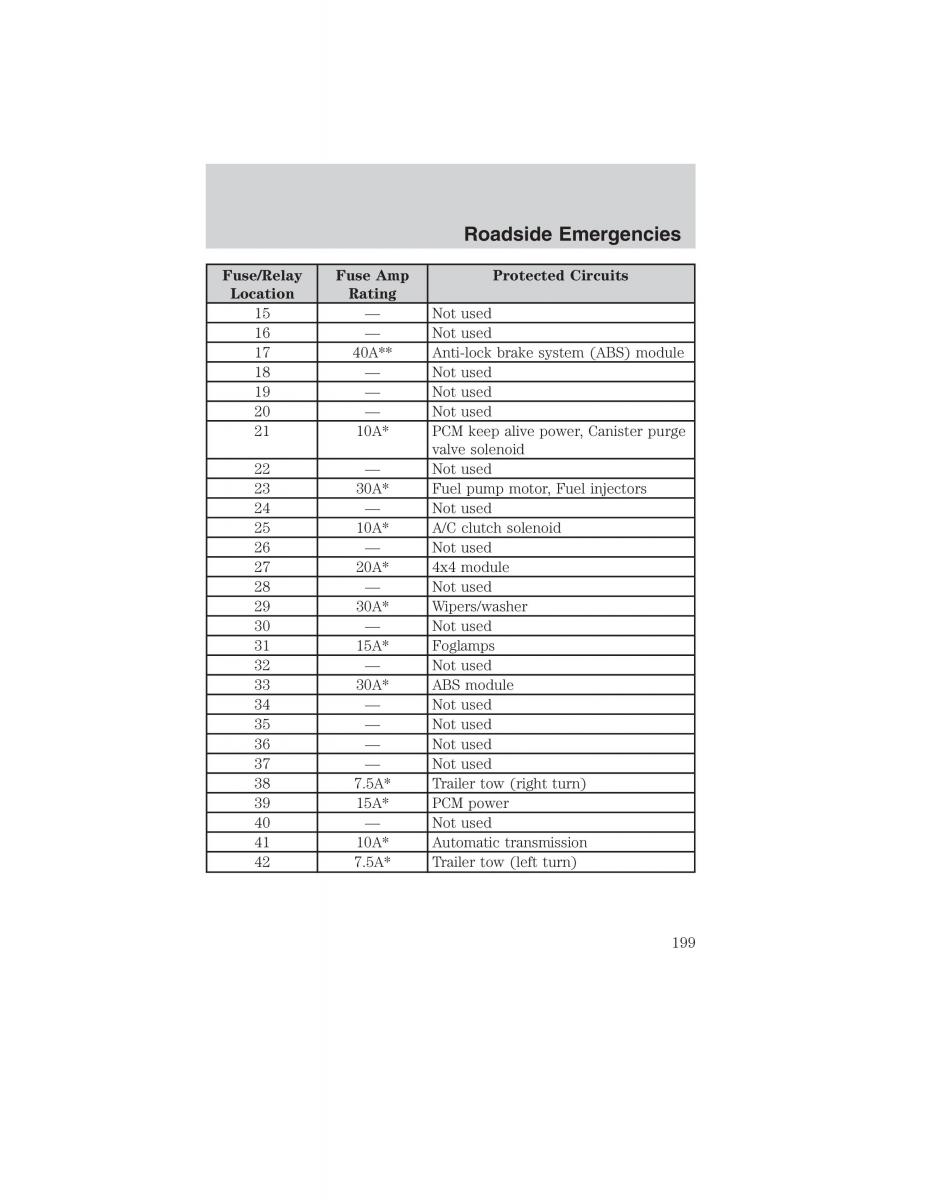

Roadside Emergencies
Fuse/RelayFuse AmpProtected Circuits
LocationRating
15 — Not used
16 — Not used
17 40A**Anti-lock brake system (ABS) module
18 — Not used
19 — Not used
20 — Not used
21 10A* PCMkeep alive power, Canister purge
valve solenoid
22 — Not used
23 30A* Fuel pump motor, Fuel injectors
24 — Not used
25 10A* A/C clutch solenoid
26 — Not used
27 20A* 4x4 module
28 — Not used
29 30A* Wipers/washer
30 — Not used
31 15A* Foglamps
32 — Not used
33 30A* ABS module
34 — Not used
35 — Not used
36 — Not used
37 — Not used
38 7.5A*Trailer tow (right turn)
39 15A* PCMpower
40 — Not used
41 10A* Automatic transmission
42 7.5A*Trailer tow (left turn)
199
2010 Ranger (ran)
Owners Guide, 2nd Printing
USA(fus)
