text version of content this owner's manual page from owners manual to the vehicle Ford Ranger, year of production 2001 - 2012:

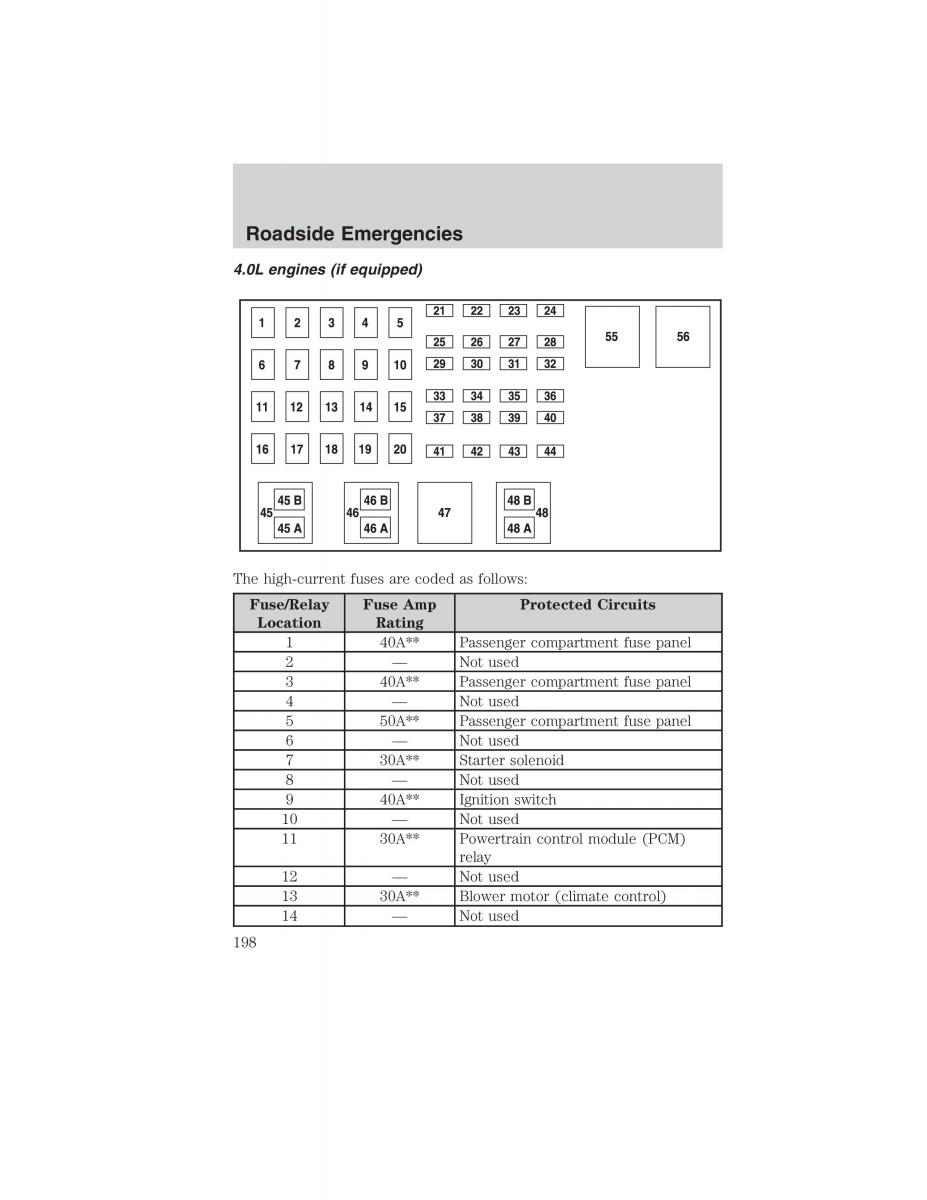

Roadside Emergencies 4.0L engines (if equipped) The high-current fuses are coded as follows: Fuse/RelayFuse AmpProtected Circuits LocationRating 1 40A**Passenger compartment fuse panel 2 — Not used 3 40A**Passenger compartment fuse panel 4 — Not used 5 50A**Passenger compartment fuse panel 6 — Not used 7 30A**Starter solenoid 8 — Not used 9 40A**Ignition switch 10 — Not used 11 30A**Powertrain control module (PCM) relay 12 — Not used 13 30A**Blower motor (climate control) 14 — Not used 198 2010 Ranger (ran) Owners Guide, 2nd Printing USA(fus)
