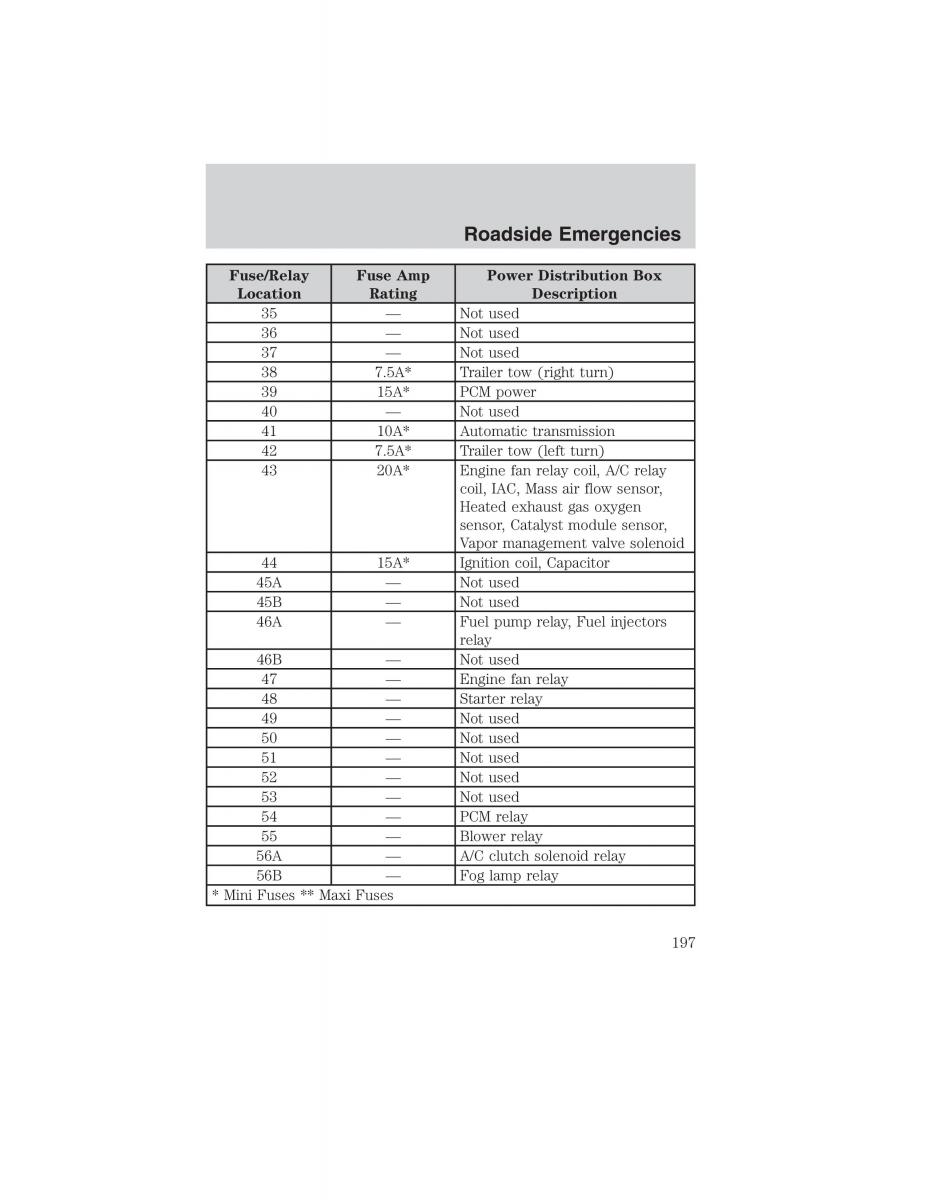

Roadside Emergencies
Fuse/RelayFuse AmpPower Distribution Box
Location Rating Description
35 — Not used
36 — Not used
37 — Not used
38 7.5A*Trailer tow (right turn)
39 15A* PCMpower
40 — Not used
41 10A* Automatic transmission
42 7.5A*Trailer tow (left turn)
43 20A* Engine fan relay coil, A/C relay
coil, IAC, Mass air flow sensor,
Heated exhaust gas oxygen
sensor, Catalyst module sensor,
Vapor management valve solenoid
44 15A* Ignition coil, Capacitor
45A — Not used
45B — Not used
46A — Fuel pump relay, Fuel injectors
relay
46B — Not used
47 — Engine fan relay
48 — Starter relay
49 — Not used
50 — Not used
51 — Not used
52 — Not used
53 — Not used
54 — PCMrelay
55 — Blower relay
56A — A/C clutch solenoid relay
56B — Fog lamp relay
* Mini Fuses ** Maxi Fuses
197
2010 Ranger (ran)
Owners Guide, 2nd Printing
USA(fus)
