text version of content this owner's manual page from owners manual to the vehicle VW Golf VII, year of production 2012:

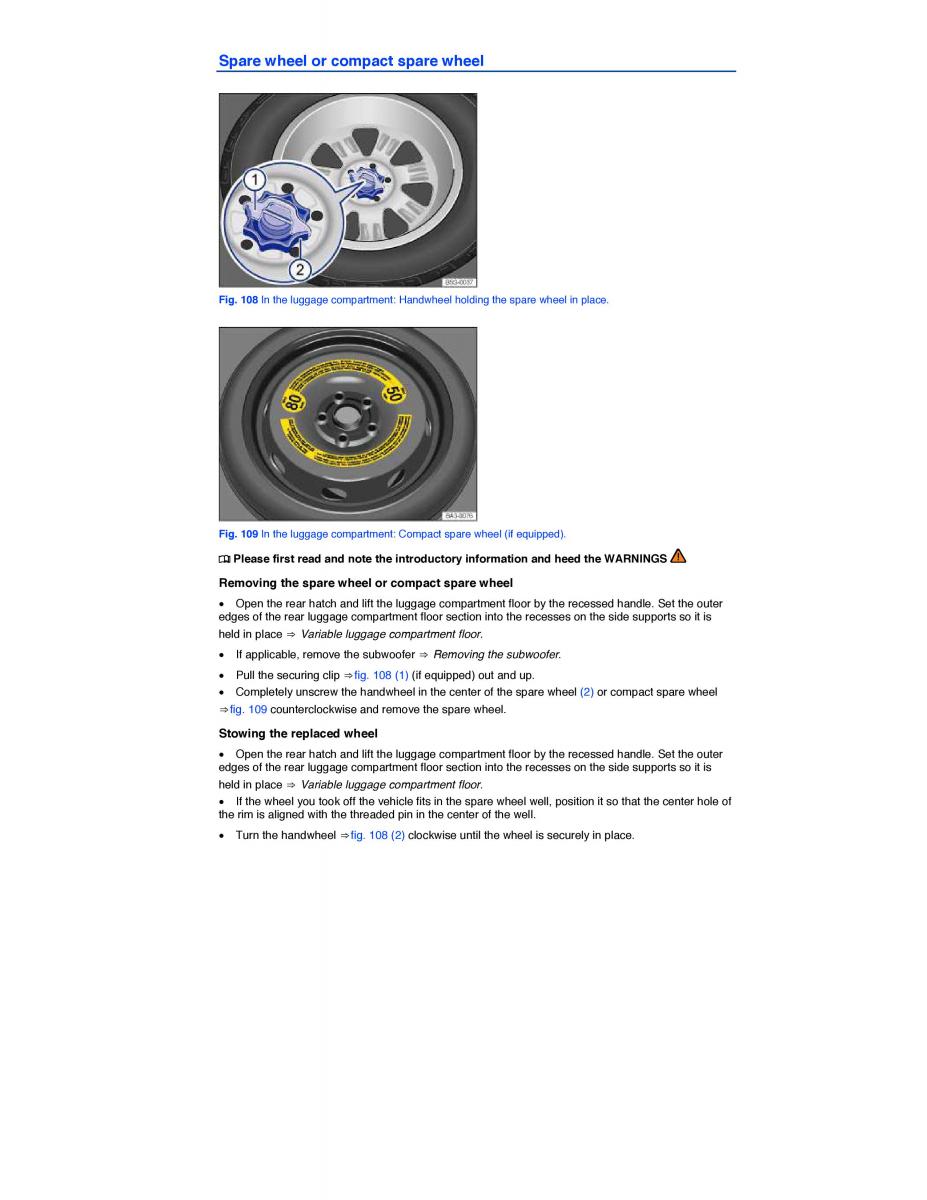

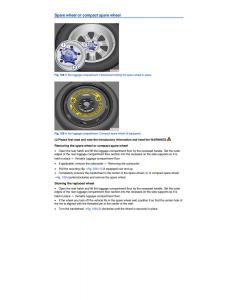

Spare wheel or compact spare wheel Fig. 108 In the luggage compartment: Handwheel holding the spare wheel in place. Fig. 109 In the luggage compartment: Compact spare wheel (if equipped). ¤ Please first read and note the introductory information and heed the WARNINGS Removing the spare wheel or compact spare wheel x Open the rear hatch and lift the luggage compartment floor by the recessed handle. Set the outer edges of the rear luggage compartment floor section into the recesses on the side supports so it is held in place ⇒ Variable luggage compartment floor. x If applicable, remove the subwoofe⇒ r Removing the subwoofer. x Pull the securing clip⇒ fig. 108 (1) (if equipped) out and up. x Completely unscrew the handwheel in the center of the spare whee(2l ) or compact spare wheel ⇒ fig. 109 counterclockwise and remove the spare wheel. Stowing the replaced wheel x Open the rear hatch and lift the luggage compartment floor by the recessed handle. Set the outer edges of the rear luggage compartment floor section into the recesses on the side supports so it is held in place ⇒ Variable luggage compartment floor. x If the wheel you took off the vehicle fits in the spare wheel well, position it so that the center hole of the rim is aligned with the threaded pin in the center of the well. x Turn the handwhee⇒ l fig. 108 (2) clockwise until the wheel is securely in place.
