owners manual VW Golf VII

owners manual VW Golf VII - year of production: 2012 - VW Golf VII 7 SportWagen Variant owners manual EN

Document: pdf (6.46 MB) 439 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle VW Golf VII, year of production 2012:

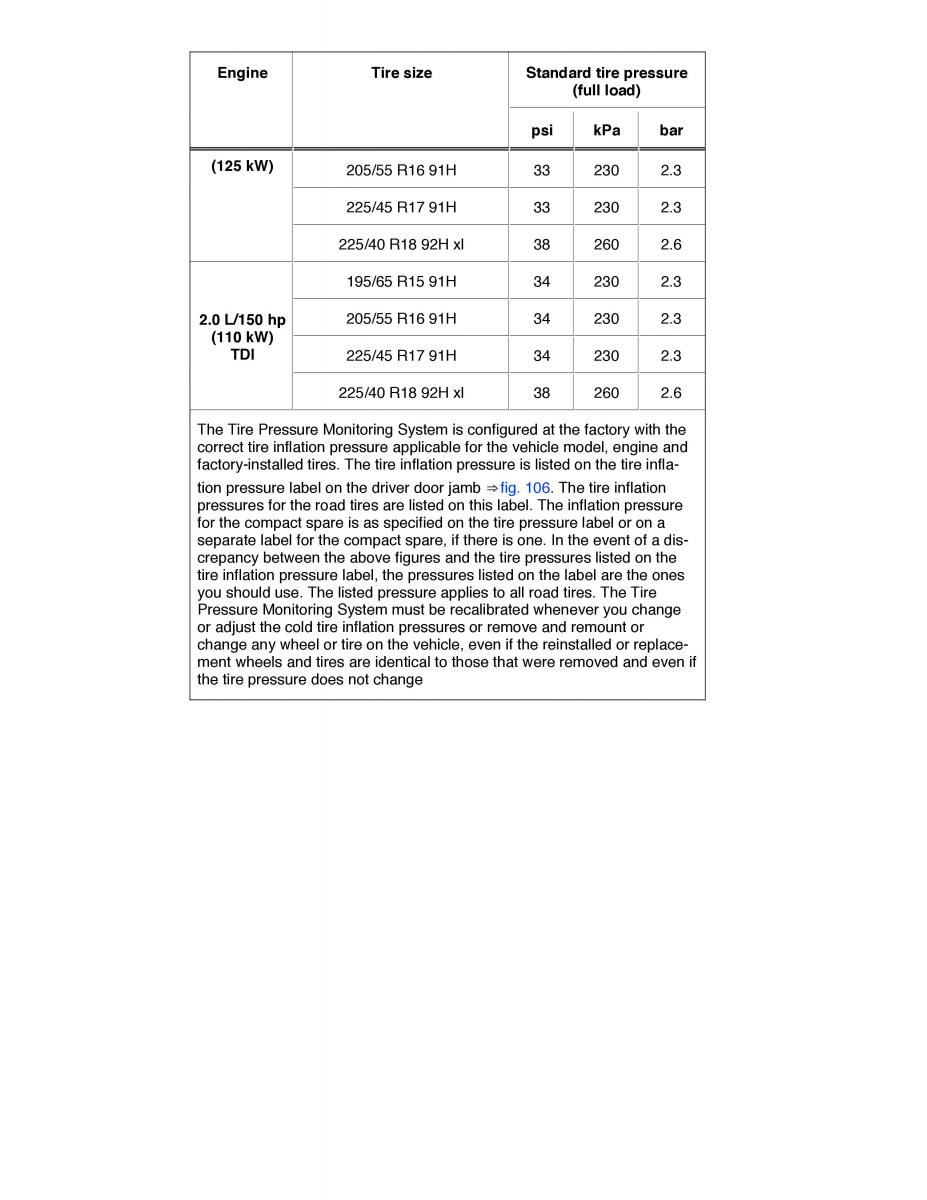

Engine Tire size Standard tire pressure (full load) psi kPa bar (125 kW) 205/55 R16 91H 33 230 2.3 225/45 R17 91H 33 230 2.3 225/40 R18 92H xl 38 260 2.6 195/65 R15 91H 34 230 2.3 2.0 L/150 hp 205/55 R16 91H 34 230 2.3 (110 kW) TDI 225/45 R17 91H 34 230 2.3 225/40 R18 92H xl 38 260 2.6 The Tire Pressure Monitoring System is configured at the factory with the correct tire inflation pressure applicable for the vehicle model, engine and factory-installed tires. The tire inflation pressure is listed on the tire infla- tion pressure label on the driver door jamb ⇒ fig. 106. The tire inflation pressures for the road tires are listed on this label. The inflation pressure for the compact spare is as specified on the tire pressure label or on a separate label for the compact spare, if there is one. In the event of a dis- crepancy between the above figures and the tire pressures listed on the tire inflation pressure label, the pressures listed on the label are the ones you should use. The listed pressure applies to all road tires. The Tire Pressure Monitoring System must be recalibrated whenever you change or adjust the cold tire inflation pressures or remove and remount or change any wheel or tire on the vehicle, even if the reinstalled or replace- ment wheels and tires are identical to those that were removed and even if the tire pressure does not change
