text version of content this owner's manual page from owners manual to the vehicle VW Golf VII, year of production 2012:

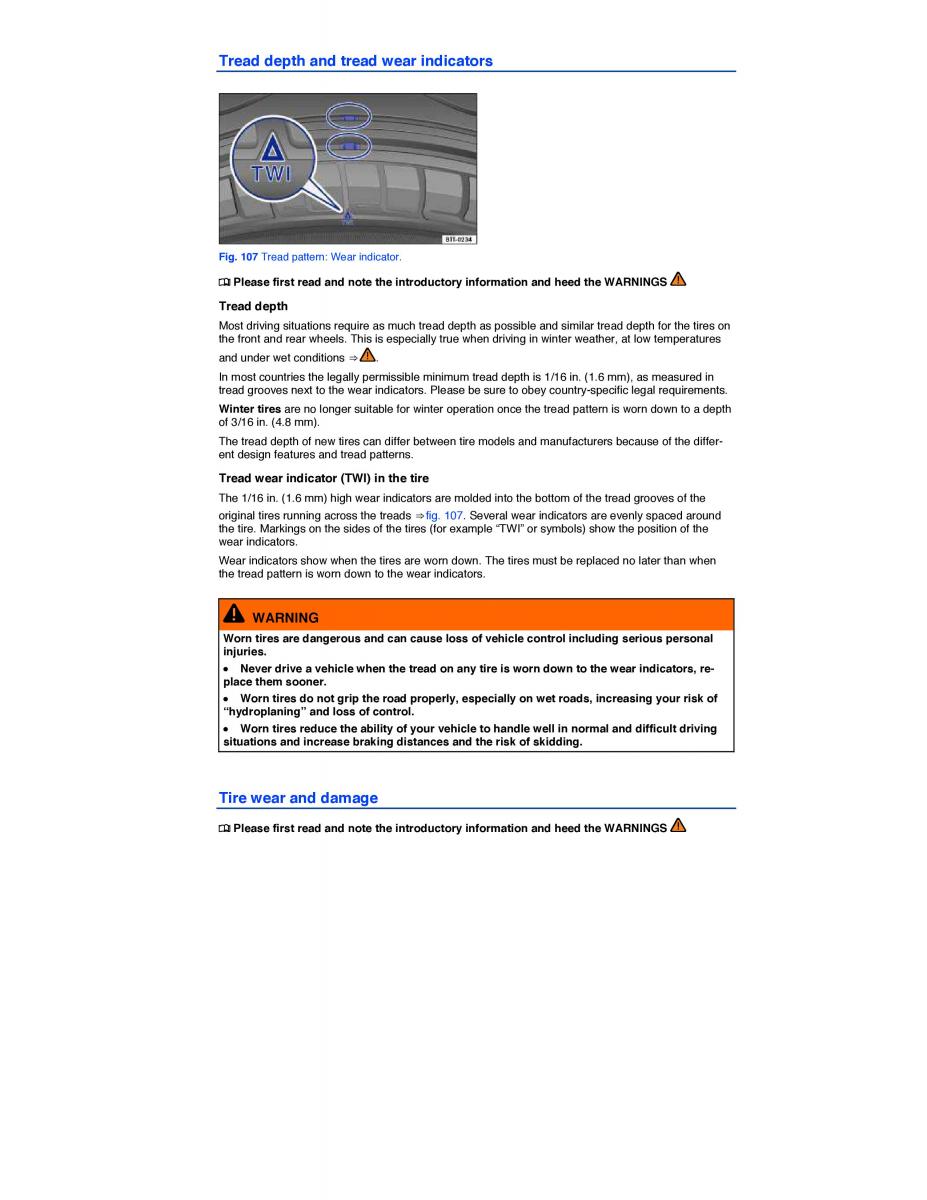

Tread depth and tread wear indicators Fig. 107 Tread pattern: Wear indicator. ¤ Please first read and note the introductory information and heed the WARNINGS Tread depth Most driving situations require as much tread depth as possible and similar tread depth for the tires on the front and rear wheels. This is especially true when driving in winter weather, at low temperatures and under wet conditions ⇒ . In most countries the legally permissible minimum tread depth is 1/16 in. (1.6 mm), as measured in tread grooves next to the wear indicators. Please be sure to obey country-specific legal requirements. Winter tires are no longer suitable for winter operation once the tread pattern is worn down to a depth of 3/16 in. (4.8 mm). The tread depth of new tires can differ between tire models and manufacturers because of the differ- ent design features and tread patterns. Tread wear indicator (TWI) in the tire The 1/16 in. (1.6 mm) high wear indicators are molded into the bottom of the tread grooves of the original tires running across the treads ⇒ fig. 107. Several wear indicators are evenly spaced around the tire. Markings on the sides of the tires (for example “TWI” or symbols) show the position of the wear indicators. Wear indicators show when the tires are worn down. The tires must be replaced no later than when the tread pattern is worn down to the wear indicators. WARNING Worn tires are dangerous and can cause loss of vehicle control including serious personal injuries. x Never drive a vehicle when the tread on any tire is worn down to the wear indicatrso, re- place them sooner. x Worn tires do not grip the road properly, especially on wet roads, increasing your risk of “hydroplaning” and loss of control. x Worn tires reduce the ability of your vehicle to handle well in normal and difficult driving situations and increase braking distances and the risk of skidding. Tire wear and damage ¤ Please first read and note the introductory information and heed the WARNINGS
