owners manual Land Rover Range Rover

all ratings: 0 average rating: 5

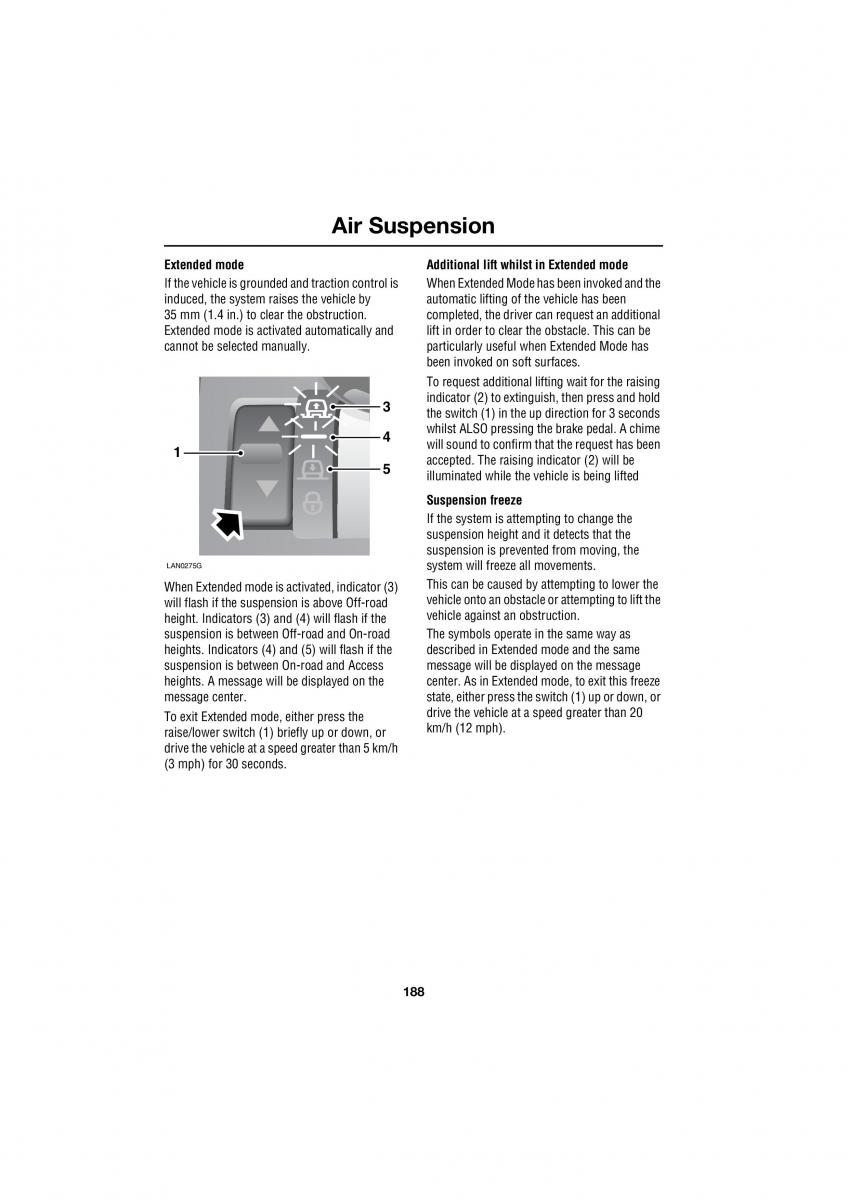

L Air Suspension Extended mode Additional lift whilst in Extended mode If the vehicle is grounded and traction control is When Extended Mode has been invoked and the induced, the system raises the vehicle by automatic lifting of the vehicle has been 35mm (1.4 in.) to clear the obstruction. completed, the driver ca n request an additional Extended mode is activated automatically and lift in order to clear the obstacle. This can be cannot be selected manually. particularly useful when Extended Mode has been invoked on soft surfaces. To request additional lifti ng wait for the raising 3 indicator (2) to extinguish, then press and hold the switch (1) in the up direction for 3 seconds 4 whilst ALSO pressing the brake pedal. A chime 1 will sound to confirm that the request has been 5 accepted. The raising indicator (2) will be illuminated while the vehicle is being lifted Suspension freeze If the system is attempting to change the suspension height and it detects that the suspension is prevented from moving, the LAN0275G system will freeze all movements. When Extended mode is ac tivated, indicator (3) This can be caused by attempting to lower the will flash if the suspension is above Off-road vehicle onto an obstacle or attempting to lift the height. Indicators (3) and (4) will flash if the vehicle against an obstruction. suspension is between Off-road and On-road The symbols operate in the same way as heights. Indicators (4) and (5) will flash if the described in Extended mode and the same suspension is between On-road and Access message will be displayed on the message heights. A message will be displayed on the center. As in Extended mode, to exit this freeze message center. state, either press the switch (1) up or down, or To exit Extended mode, either press the drive the vehicle at a speed greater than 20 raise/lower switch (1) briefly up or down, or km/h (12 mph). drive the vehicle at a speed greater than 5 km/h (3 mph) for 30 seconds. 188
