owners manual Land Rover Range Rover

all ratings: 0 average rating: 5

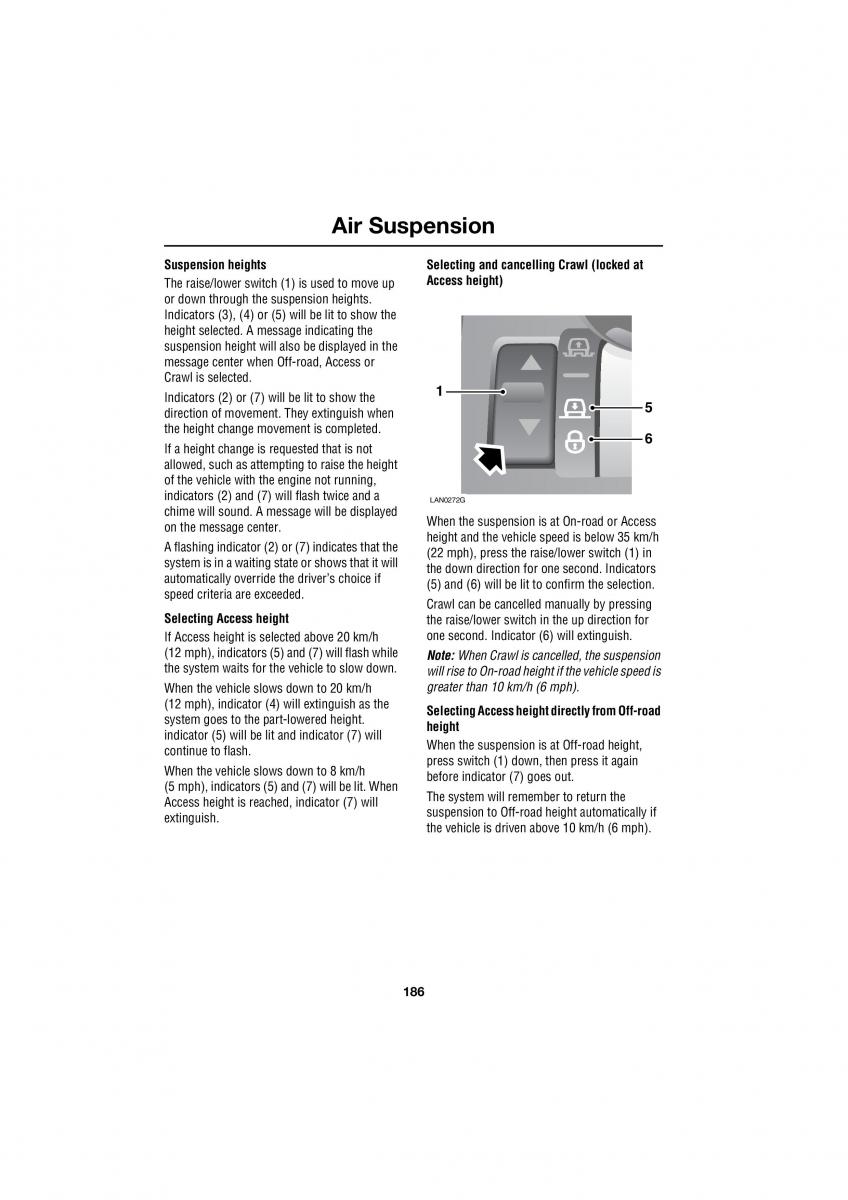

L Air Suspension Suspension heights Selecting and cancelling Crawl (locked at The raise/lower switch (1) is used to move up Access height) or down through the suspension heights. Indicators (3), (4) or (5) will be lit to show the height selected. A message indicating the suspension height will also be displayed in the message center when Off-road, Access or Crawl is selected. Indicators (2) or (7) will be lit to show the 1 direction of movement. They extinguish when 5 the height change movement is completed. 6 If a height change is requested that is not allowed, such as attempting to raise the height of the vehicle with the engine not running, indicators (2) and (7) will flash twice and a LAN0272G chime will sound. A message will be displayed When the suspension is at On-road or Access on the message center. height and the vehicle speed is below 35 km/h A flashing indicator (2) or (7) indicates that the (22 mph), press the raise/lower switch (1) in system is in a waiting state or shows that it will the down direction for one second. Indicators automatically override the driver’s choice if (5) and (6) will be lit to confirm the selection. speed criteria are exceeded. Crawl can be cancelled manually by pressing Selecting Access height the raise/lower switch in the up direction for If Access height is selected above 20 km/h one second. Indicator (6) will extinguish. (12 mph), indicators (5) and (7) will flash while Note: When Crawl is cancelled, the suspension the system waits for the vehicle to slow down. will rise to On-road height if the vehicle speed is When the vehicle slows down to 20 km/h greater than 10 km/h (6 mph). (12 mph), indicator (4) will extinguish as the Selecting Access height directly from Off-road system goes to the part-lowered height. height indicator (5) will be lit and indicator (7) will When the suspension is at Off-road height, continue to flash. press switch (1) down, then press it again When the vehicle slows down to 8 km/h before indicator (7) goes out. (5 mph), indicators (5) and (7) will be lit. When The system will remember to return the Access height is reached, indicator (7) will suspension to Off-road height automatically if extinguish. the vehicle is driven above 10 km/h (6 mph). 186
