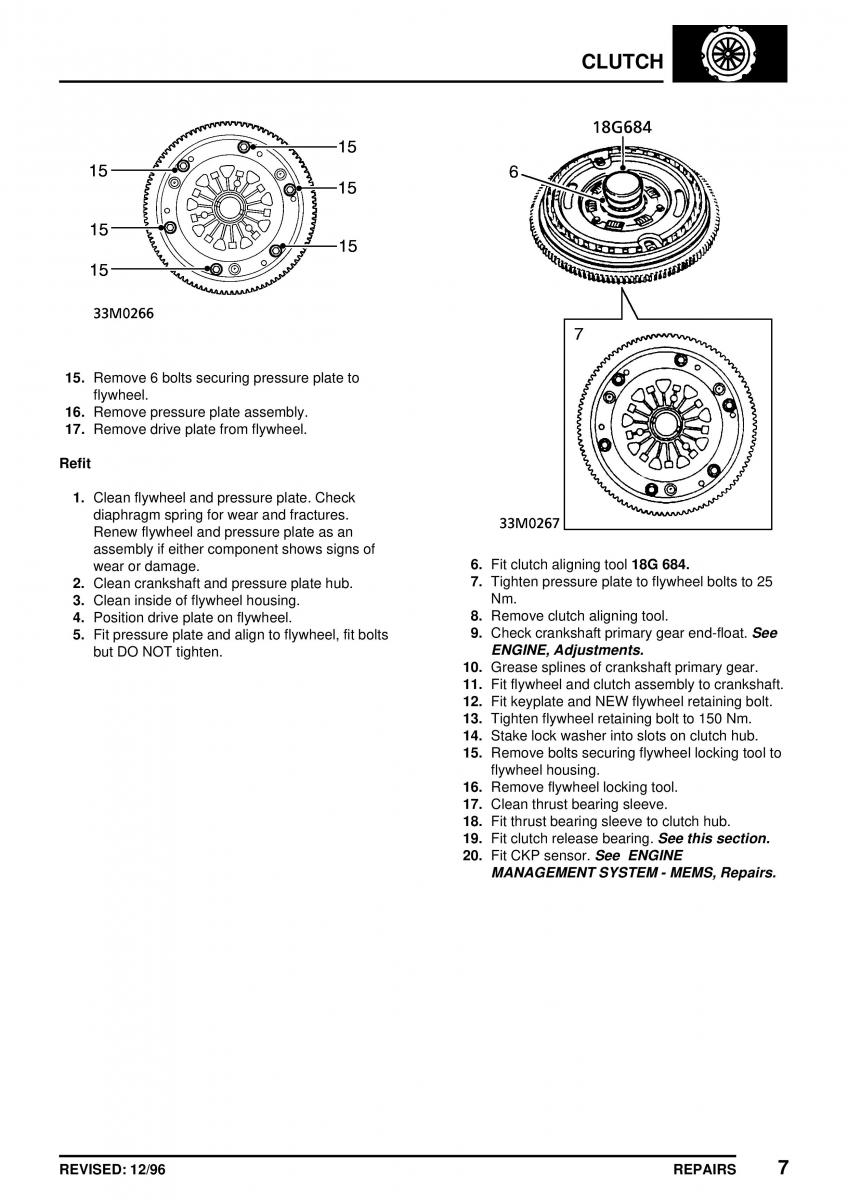

CLUTCH
15. Remove6boltssecuringpressureplate to
flywheel.
16. Removepressureplateassembly.
17. Removedriveplate from flywheel.
Refit
1. Clean flywheel and pressure plate. Check
diaphragmspring for wear and fractures.
Renewflywheelandpressureplateas an
assembly if either component shows signs of
wearordamage. 6. Fit clutch aligning tool 18G 684.
2. Clean crankshaft and pressure plate hub.7. Tighten pressure plate to flywheel bolts to 25
3. Clean inside of flywheel housing. Nm.
4. Position drive plate on flywheel.8. Removeclutch aligning tool.
5. Fit pressure plate and align to flywheel, fit bolts9. Check crankshaft primary gear end-float. See
but DO NOTtighten. ENGINE,Adjustments.
10. Grease splines of crankshaft primary gear.
11. Fit flywheel and clutch assembly to crankshaft.
12. Fit keyplate and NEW flywheel retaining bolt.
13. Tighten flywheel retaining bolt to 150 Nm.
14. Stake lock washer into slots on clutch hub.
15. Removeboltssecuring flywheel locking tool to
flywheel housing.
16. Removeflywheellocking tool.
17. Clean thrust bearing sleeve.
18. Fit thrust bearing sleeve to clutch hub.
19. Fit clutch release bearing. See this section.
20. Fit CKP sensor. See ENGINE
MANAGEMENTSYSTEM-MEMS,Repairs.
REVISED:12/96 REPAIRS 7
