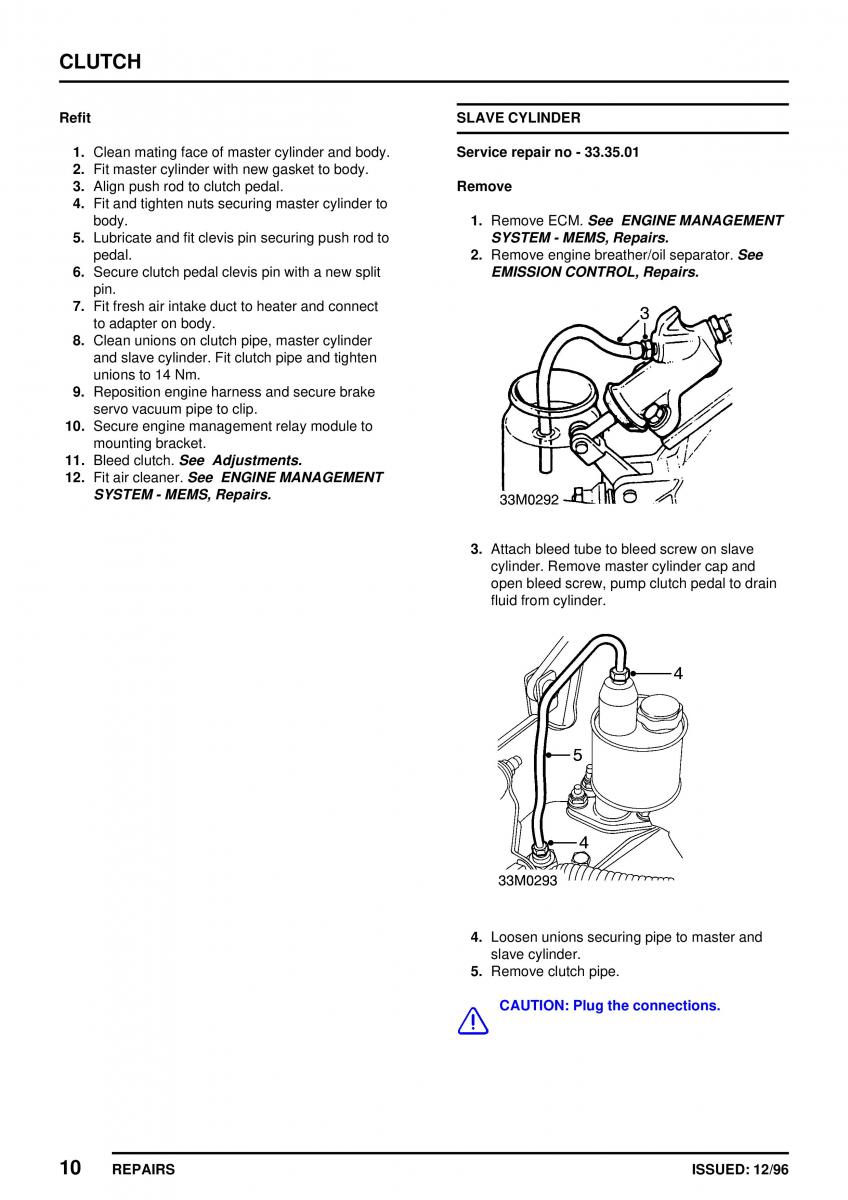

CLUTCH
Refit SLAVECYLINDER
1. Clean mating face of master cylinder and body.Service repair no - 33.35.01
2. Fit master cylinder with new gasket to body.
3. Align push rod to clutch pedal. Remove
4. Fit and tighten nuts securing master cylinder to
body. 1. RemoveECM.See ENGINEMANAGEMENT
5. Lubricate and fit clevis pin securing push rod toSYSTEM-MEMS,Repairs.
pedal. 2. Removeenginebreather/oilseparator. See
6. Secure clutch pedal clevis pin with a new splitEMISSIONCONTROL,Repairs.
pin.
7. Fit fresh air intake duct to heater and connect
to adapter on body.
8. Clean unions on clutch pipe, master cylinder
andslave cylinder. Fit clutch pipe and tighten
unions to 14 Nm.
9. Reposition engine harness and secure brake
servo vacuum pipe to clip.
10. Secure engine managementrelay module to
mounting bracket.
11. Bleed clutch. See Adjustments.
12. Fit air cleaner. See ENGINE MANAGEMENT
SYSTEM-MEMS,Repairs.
3. Attach bleed tube to bleed screw on slave
cylinder. Remove master cylinder cap and
openbleedscrew,pumpclutchpedaltodrain
fluid from cylinder.
4. Loosen unions securing pipe to master and
slave cylinder.
5. Removeclutch pipe.
CAUTION:Plugtheconnections.
10 REPAIRS ISSUED:12/96
