text version of content this owner's manual page from owners manual to the vehicle Lancia Lybra, year of production 1999 - 2005:

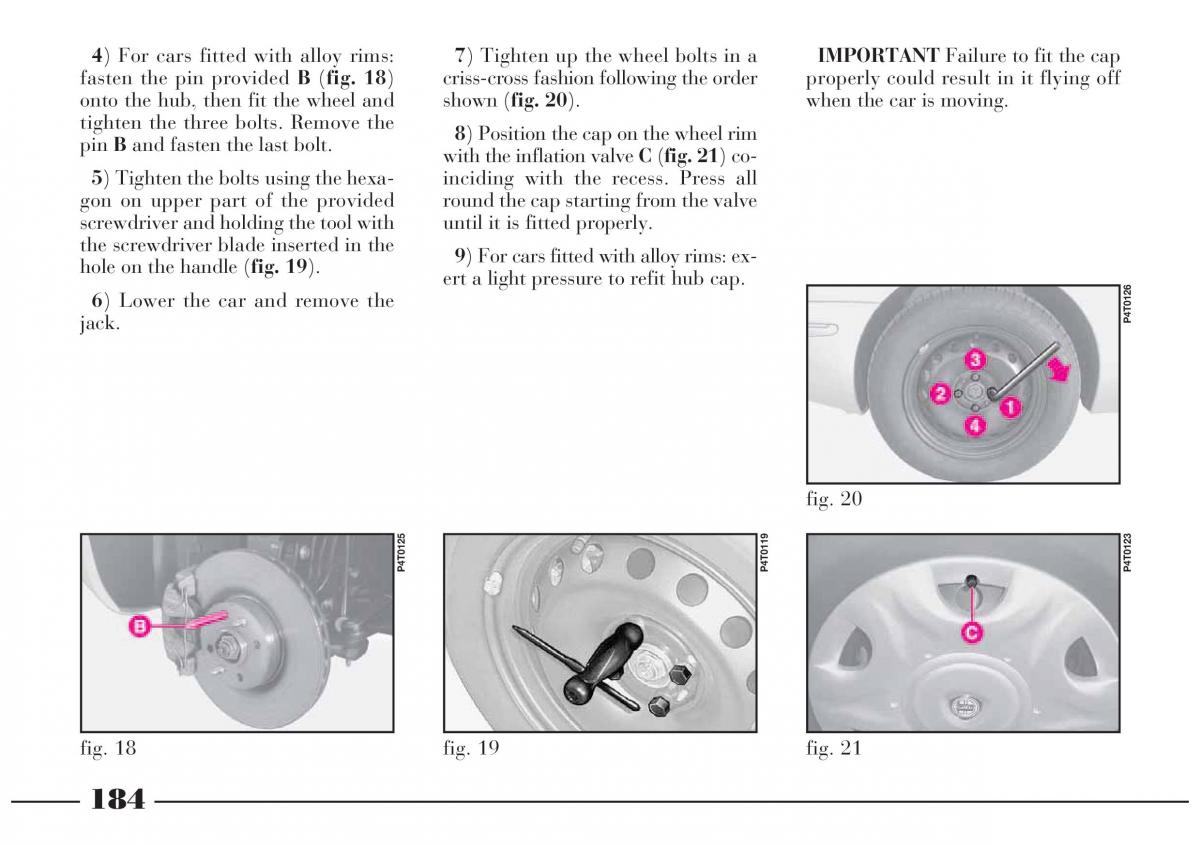

4) For cars fitted with alloy rims:7) Tighten up the wheel bolts in aIMPORTANT Failure to fit the cap fasten the pin provided B (fig. 18) criss-cross fashion following the order properly could result in it flying off onto the hub, then fit the wheel andshown (fig. 20). when the car is moving. tighten the three bolts. Remove the pin B and fasten the last bolt. 8) Position the cap on the wheel rim with the inflation valve C(fig. 21 ) co- 5) Tighten the bolts using the hexa- inciding with the recess. Press all gon on upper part of the providedround the cap starting from the valve screwdriver and holding the tool with until it is fitted properly. the screwdriver blade inserted in the 9) For cars fitted with alloy rims: ex- hole on the handle ( fig. 19). ert a light pressure to refit hub cap. 6) Lower the car and remove the jack. P4T0126 fig. 20 P4T0125 P4T0119 P4T0123 fig. 18 fig. 19 fig. 21 184
