text version of content this owner's manual page from owners manual to the vehicle Lancia Lybra, year of production 1999 - 2005:

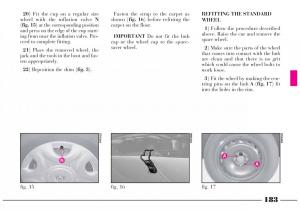

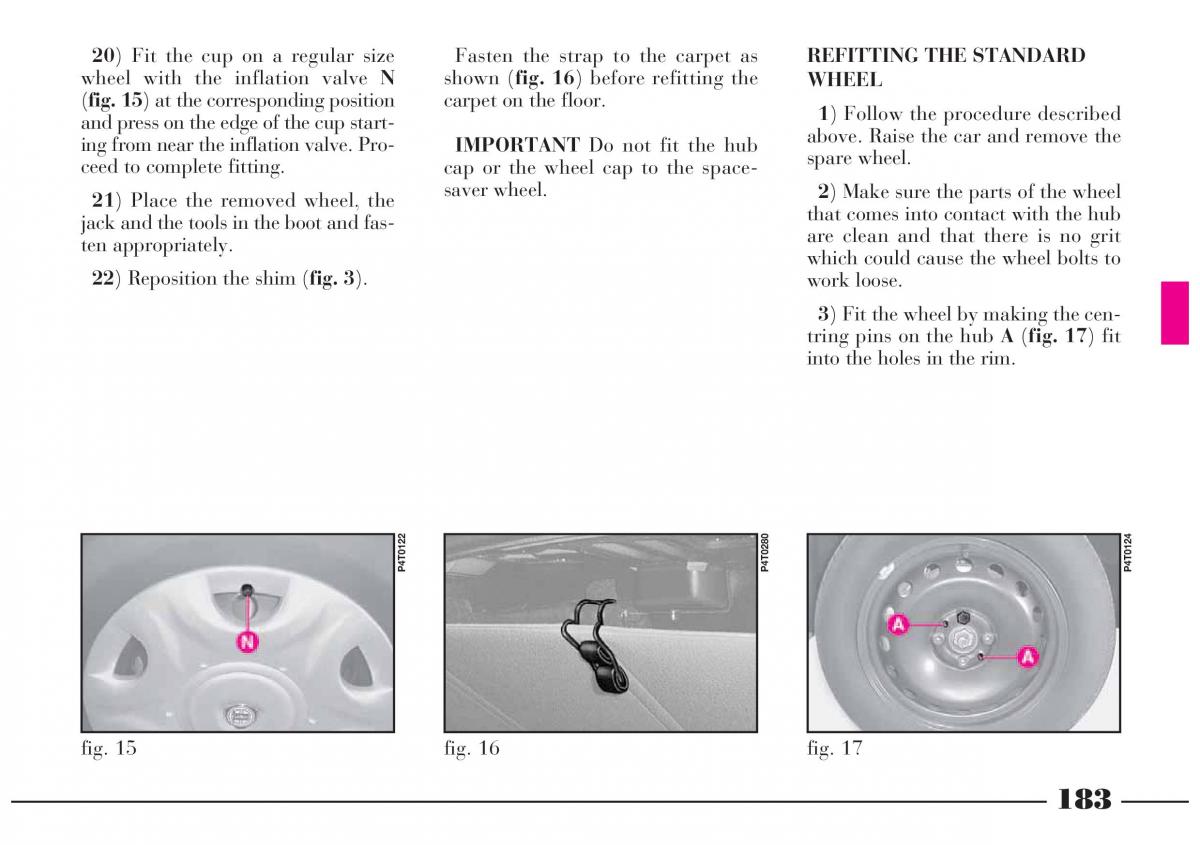

20) Fit the cup on a regular sizeFasten the strap to the carpet asREFITTING THE STANDARD wheel with the inflation valve N shown (fig. 16) before refitting the WHEEL (fig. 15 ) at the corresponding position carpet on the floor. 1) Follow the procedure described and press on the edge of the cup start- above. Raise the car and remove the ing from near the inflation valve. Pro- IMPORTANTDo not fit the hub ceed to complete fitting. spare wheel. cap or the wheel cap to the space- saver wheel. 2) Make sure the parts of the wheel 21) Place the removed wheel, the that comes into contact with the hub jack and the tools in the boot and fas- are clean and that there is no grit ten appropriately. which could cause the wheel bolts to 22) Reposition the shim ( fig. 3). work loose. 3) Fit the wheel by making the cen- tring pins on the hub A (fig. 17) fit into the holes in the rim. P4T0122 P4T0280 P4T0124 fig. 15 fig. 16 fig. 17 183
