text version of content this owner's manual page from owners manual to the vehicle Lancia Lybra, year of production 1999 - 2005:

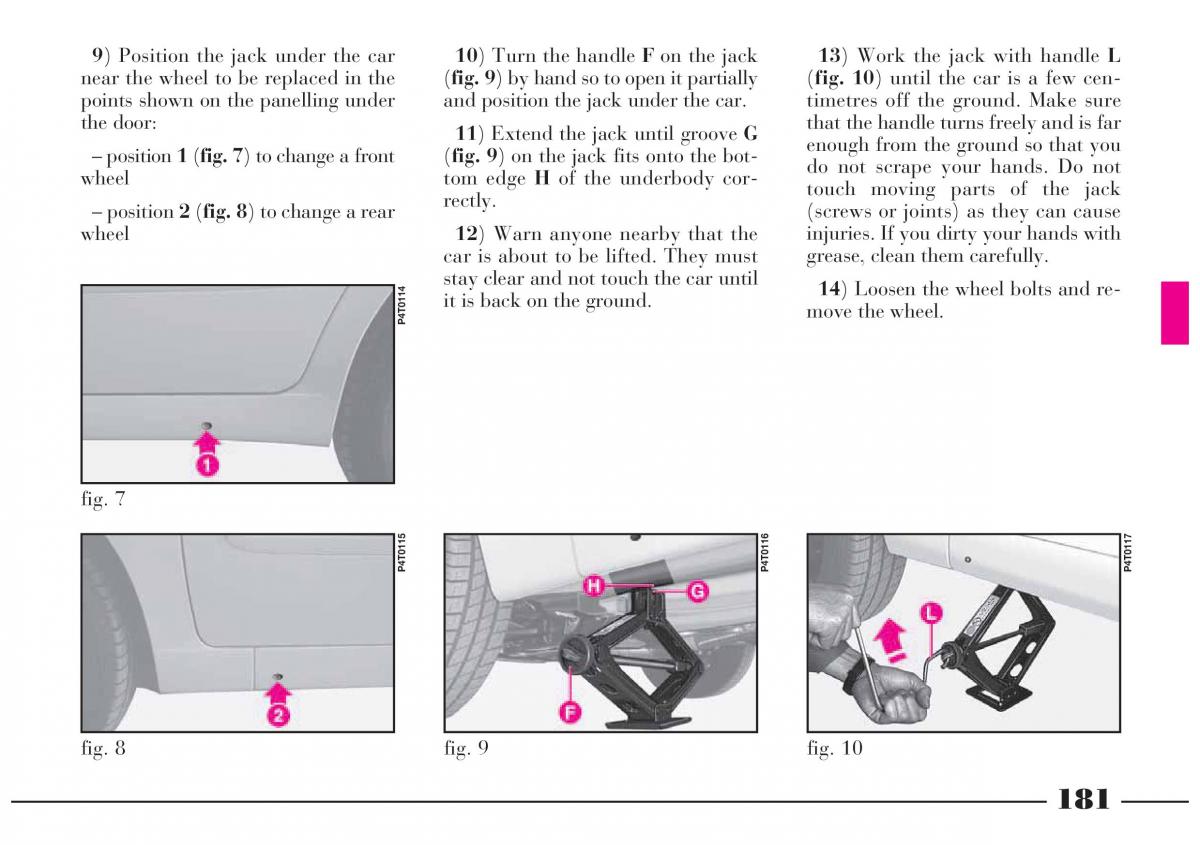

9) Position the jack under the car10) Turn the handle F on the jack 13) Work the jack with handle L near the wheel to be replaced in the(fig. 9) by hand so to open it partially (fig. 10) until the car is a few cen- points shown on the panelling under and position the jack under the car. timetres off the ground. Make sure the door: 11) Extend the jack until groove G that the handle turns freely and is far – position 1(fig. 7 ) to change a front (fig. 9) on the jack fits onto the bot- enough from the ground so that you do not scrape your hands. Do not wheel tom edge H of the underbody cor- rectly. touch moving parts of the jack – position 2 (fig. 8) to change a rear (screws or joints) as they can cause injuries. If you dirty your hands with wheel 12) Warn anyone nearby that the grease, clean them carefully. car is about to be lifted. They must stay clear and not touch the car until 14) Loosen the wheel bolts and re- it is back on the ground. move the wheel. P4T0114 fig. 7 P4T0115 P4T0116 P4T0117 fig. 8 fig. 9 fig. 10 181
