text version of content this owner's manual page from owners manual to the vehicle Renault Espace, year of production 2002 - 2015:
Jaune Noir Noir texte

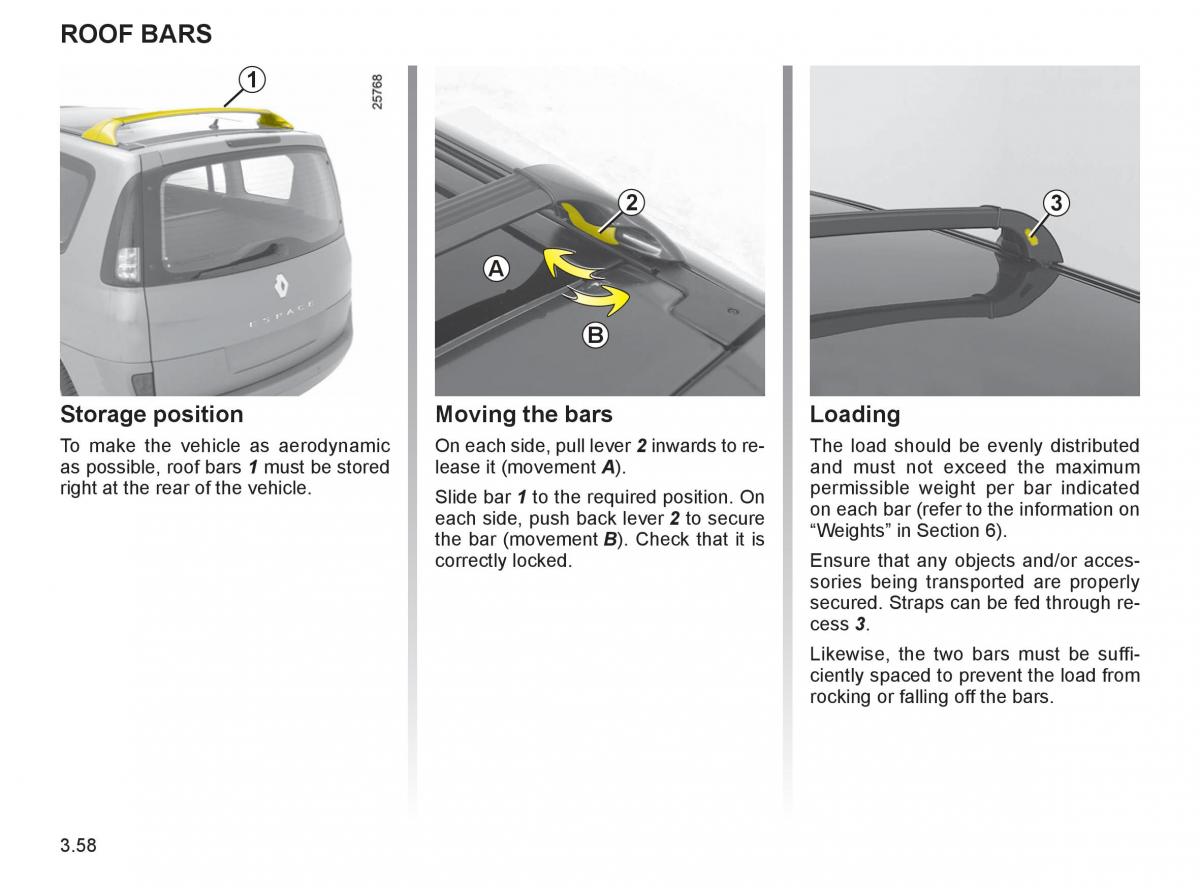

ROOF BARS
1
2 3
A
B
Storage position Moving the bars Loading
To make the vehicle as aerodynamic On each side, pull lever 2 inwards to re- The load should be evenly distributed
as possible, roof bars 1 must be stored lease it (movement A). and must not exceed the maximum
right at the rear of the vehicle. Slide bar 1 to the required position. On permissible weight per bar indicated
each side, push back lever 2 to secure on each bar (refer to the information on
the bar (movement B). Check that it is “Weights” in Section 6).
correctly locked. Ensure that any objects and/or acces-
sories being transported are properly
secured. Straps can be fed through re-
cess 3.
Likewise, the two bars must be suffi-
ciently spaced to prevent the load from
rocking or falling off the bars.
3.58
ENG_UD1824_1
ENG_NU_760-4_X81_Renault_3 Barres de toit (X81 - Renault)
Barres de toit
galerie
barres de toit . (jusqu’à la fin de l’UD)
barres de toit (jusqu’à la fin de l’UD)
