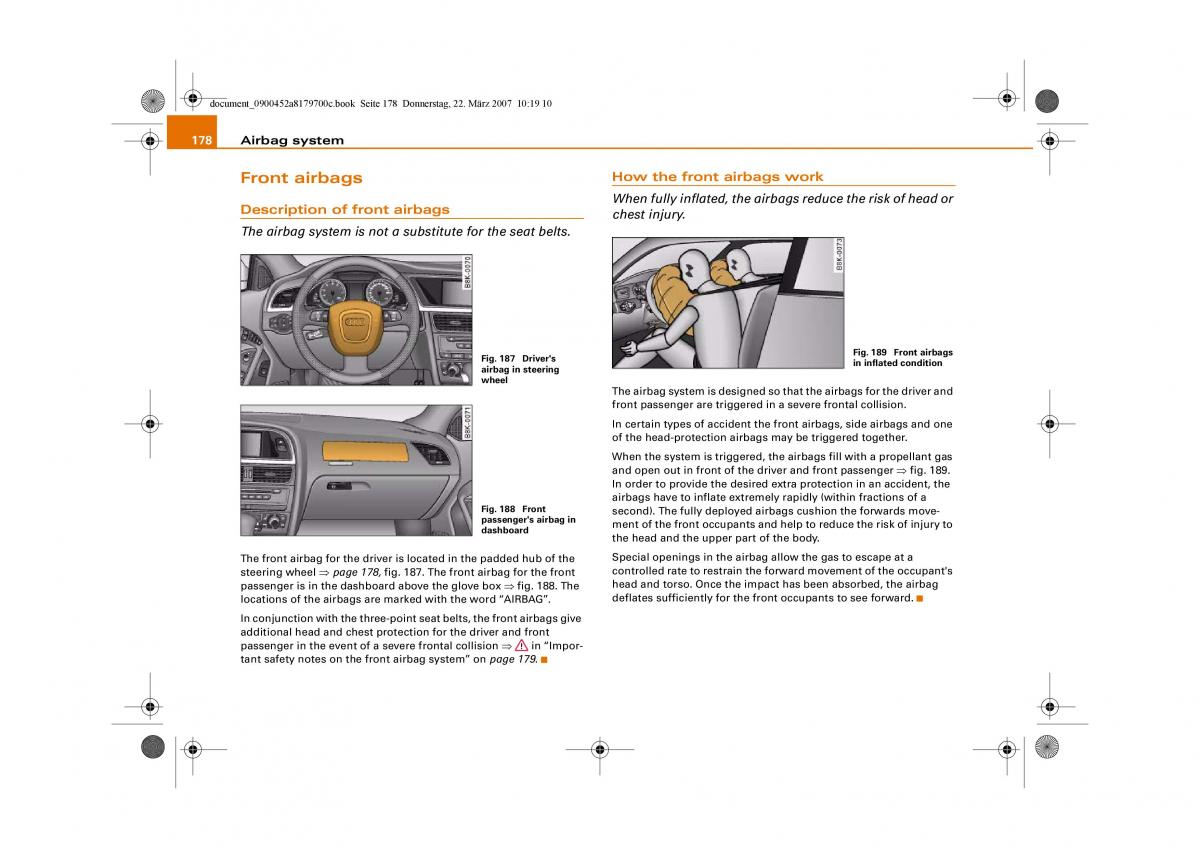

document_0900452a8179700c.book Seite 178 Donnerstag, 22. März 2007 10:19 10 178 Airbag system Front airbags How the front airbags work Description of front airbags When fully inflated, the airbags reduce the risk of head or chest injury. The airbag system is not a substitute for the seat belts. Fig. 187 Driver's Fig. 189 Front airbags airbag in steering in inflated condition wheel The airbag system is designed so th at the airbags for the driver and front passenger are triggered in a severe frontal collision. In certain types of accident the front airbags, side airbags and one of the head-protection airbags may be triggered together. When the system is triggered, the airbags fill with a propellant gas and open out in front of the driver and front passenger ⇒ fig. 189. In order to provide the desired extra protection in an accident, the airbags have to inflate extremely rapidly (within fractions of a Fig. 188 Front second). The fully deployed airbags cushion the forwards move- passenger's airbag in ment of the front occupants and help to reduce the risk of injury to dashboard the head and the upper part of the body. The front airbag for the driver is located in the padded hub of the Special openings in the airbag allow the gas to escape at a steering wheel ⇒ page 178, fig. 187. The front airbag for the front controlled rate to restrain the forward movement of the occupant's passenger is in the dashboard above the glove box ⇒ fig. 188. The head and torso. Once the impact has been absorbed, the airbag locations of the airbags are marked with the word “AIRBAG”.deflates sufficiently for the front occupants to see forward. In conjunction with the three-point seat belts, the front airbags give additional head and chest protection for the driver and front passenger in the event of a severe frontal collision ⇒ in “Impor- tant safety notes on the front airbag system” on page 179.
