text version of content this owner's manual page from owners manual to the vehicle Audi A5, year of production 2007:

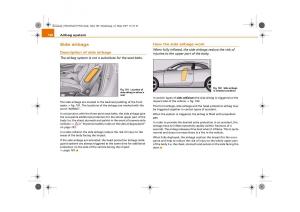

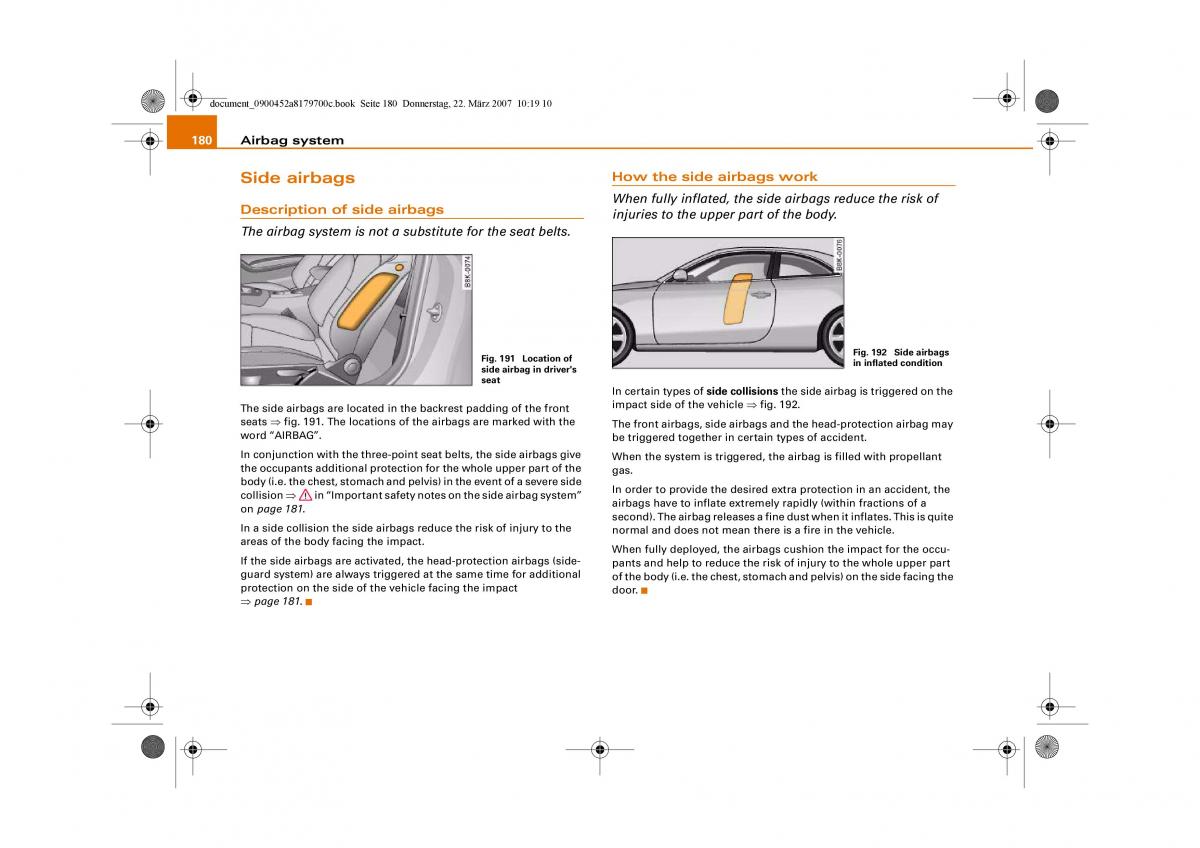

document_0900452a8179700c.book Seite 180 Donnerstag, 22. März 2007 10:19 10 180 Airbag system Side airbags How the side airbags work Description of side airbags When fully inflated, the side airbags reduce the risk of injuries to the upper part of the body. The airbag system is not a substitute for the seat belts. Fig. 191 Location of Fig. 192 Side airbags side airbag in driver's in inflated condition seat In certain types of side collisions the side airbag is triggered on the The side airbags are located in the backrest padding of the front impact side of the vehicle ⇒ fig. 192. seats ⇒ fig. 191. The locations of the airbags are marked with the The front airbags, side airbags and the head-protection airbag may word “AIRBAG”. be triggered together in certain types of accident. In conjunction with the three-point seat belts, the side airbags give When the system is triggered, the airbag is filled with propellant the occupants additional protection for the whole upper part of the gas. body (i.e. the chest, stomach and pelvis) in the event of a severe side In order to provide the desired extra protection in an accident, the collision ⇒ in “Important safety notes on the side airbag system” airbags have to inflate extremely rapidly (within fractions of a on page 181. second). The airbag releases a fine dust when it inflates. This is quite In a side collision the side airbags reduce the risk of injury to the normal and does not mean there is a fire in the vehicle. areas of the body facing the impact. When fully deployed, the airbags cushion the impact for the occu- If the side airbags are activated, the head-protection airbags (side-pants and help to reduce the risk of injury to the whole upper part guard system) are always triggered at the same time for additional of the body (i.e. the chest, stomach and pelvis) on the side facing the protection on the side of the vehicle facing the impact door. ⇒page181.
