text version of content this owner's manual page from owners manual to the vehicle Audi A5, year of production 2007:

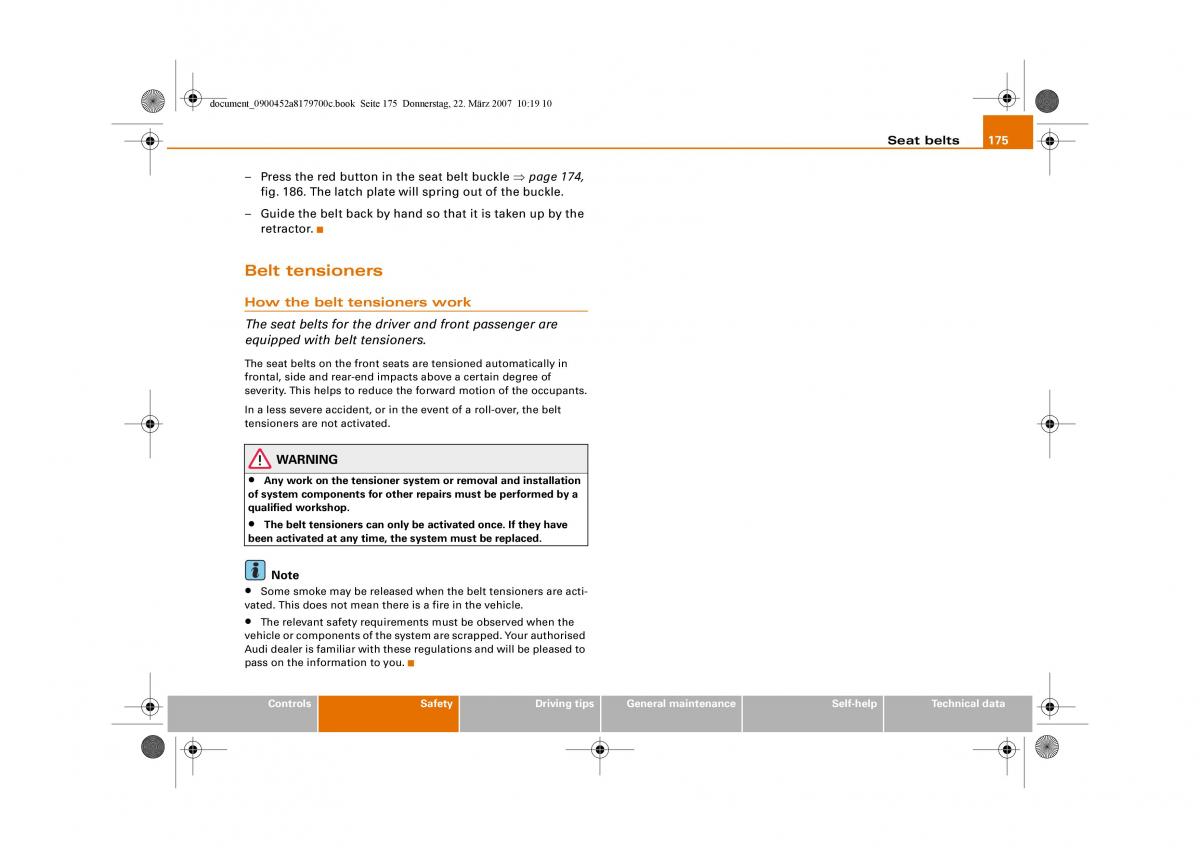

document_0900452a8179700c.book Seite 175 Donnerstag, 22. März 2007 10:19 10 Seat belts 175 – Press the red button in the seat belt buckle ⇒ page 174, fig. 186. The latch plate will spring out of the buckle. – Guide the belt back by hand so that it is taken up by the retractor. Belt tensioners How the belt tensioners work The seat belts for the driver and front passenger are equipped with belt tensioners. The seat belts on the front seats are tensioned automatically in frontal, side and rear-end impacts above a certain degree of severity. This helps to reduce the forward motion of the occupants. In a less severe accident, or in the event of a roll-over, the belt tensioners are not activated. WARNING • Any work on the tensioner system or removal and installation of system components for other repairs must be performed by a qualified workshop. • The belt tensioners can only be activated once. If they have been activated at any time, the system must be replaced. Note • Some smoke may be released when the belt tensioners are acti- vated. This does not mean there is a fire in the vehicle. • The relevant safety requirements must be observed when the vehicle or components of the system are scrapped. Your authorised Audi dealer is familiar with these regulations and will be pleased to pass on the information to you. Controls Safety Driving tipsGeneral maintenance Self-help Technical data
