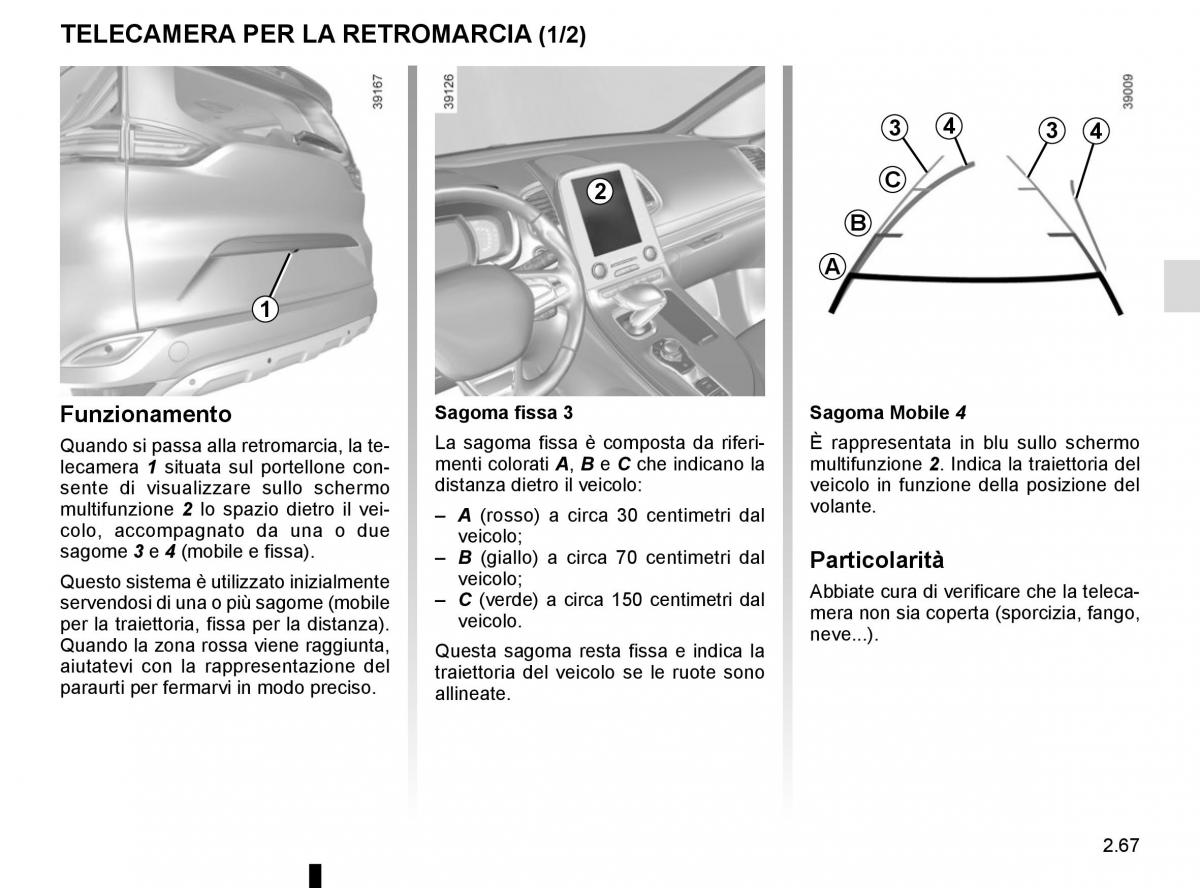

TELECAMERA PER LA RETROMARCIA (1/2)
3 4 3 4
2 C
B
A
1
Funzionamento Sagoma fissa 3 Sagoma Mobile 4
Quando si passa alla retromarcia, la te-La sagoma fissa è composta da riferi-È rappresentata in blu sullo schermo
menti colorati A, B e C che indicano la multifunzione 2. Indica la traiettoria del
lecamera 1 situata sul portellone con-
distanza dietro il veicolo:veicolo in funzione della posizione del
sente di visualizzare sullo schermo
multifunzione 2 lo spazio dietro il vei- volante.
– A (rosso) a circa 30 centimetri dal
colo, accompagnato da una o due
sagome 3 e 4 (mobile e fissa).veicolo;
– B (giallo) a circa 70 centimetri dal
veicolo; Particolarità
Questo sistema è utilizzato inizialmente Abbiate cura di verificare che la teleca-
servendosi di una o più sagome (mobile – C (verde) a circa 150 centimetri dal
veicolo. mera non sia coperta (sporcizia, fango,
per la traiettoria, fissa per la distanza). neve.).
Quando la zona rossa viene raggiunta,
Questa sagoma resta fissa e indica la
aiutatevi con la rappresentazione del
paraurti per fermarvi in modo preciso.traiettoria del veicolo se le ruote sono
allineate.
2.67
