owners manual VW Tiguan

all ratings: 0 average rating: 5

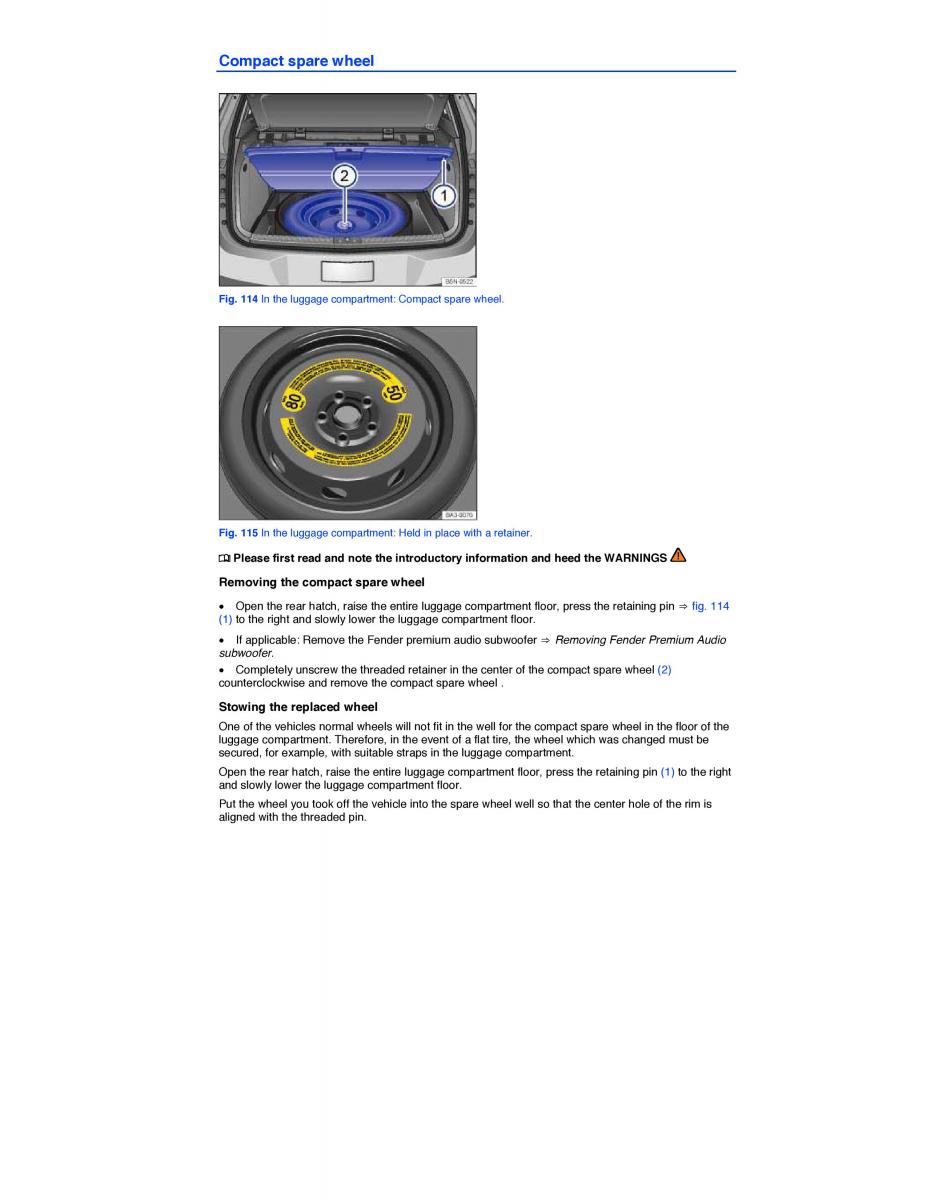

Compact spare wheel Fig. 114 In the luggage compartment: Compact spare wheel. Fig. 115 In the luggage compartment: Held in place with a retainer. ¤ Please first read and note the introductory information and heed the WARNINGS Removing the compact spare wheel x Open the rear hatch, raise the entire luggage compartment floor, press the retaining pin⇒ fig. 114 (1) to the right and slowly lower the luggage compartment floor. x If applicable: Remove the Fender premium audio subwoofe⇒r Removing Fender Premium Audio subwoofer. x Completely unscrew the threaded retainer in the center of the compact spare whee(2l ) counterclockwise and remove the compact spare wheel . Stowing the replaced wheel One of the vehicles normal wheels will not fit in the well for the compact spare wheel in the floor of the luggage compartment. Therefore, in the event of a flat tire, the wheel which was changed must be secured, for example, with suitable straps in the luggage compartment. Open the rear hatch, raise the entire luggage compartment floor, press the retaining pin (1) to the right and slowly lower the luggage compartment floor. Put the wheel you took off the vehicle into the spare wheel well so that the center hole of the rim is aligned with the threaded pin.
