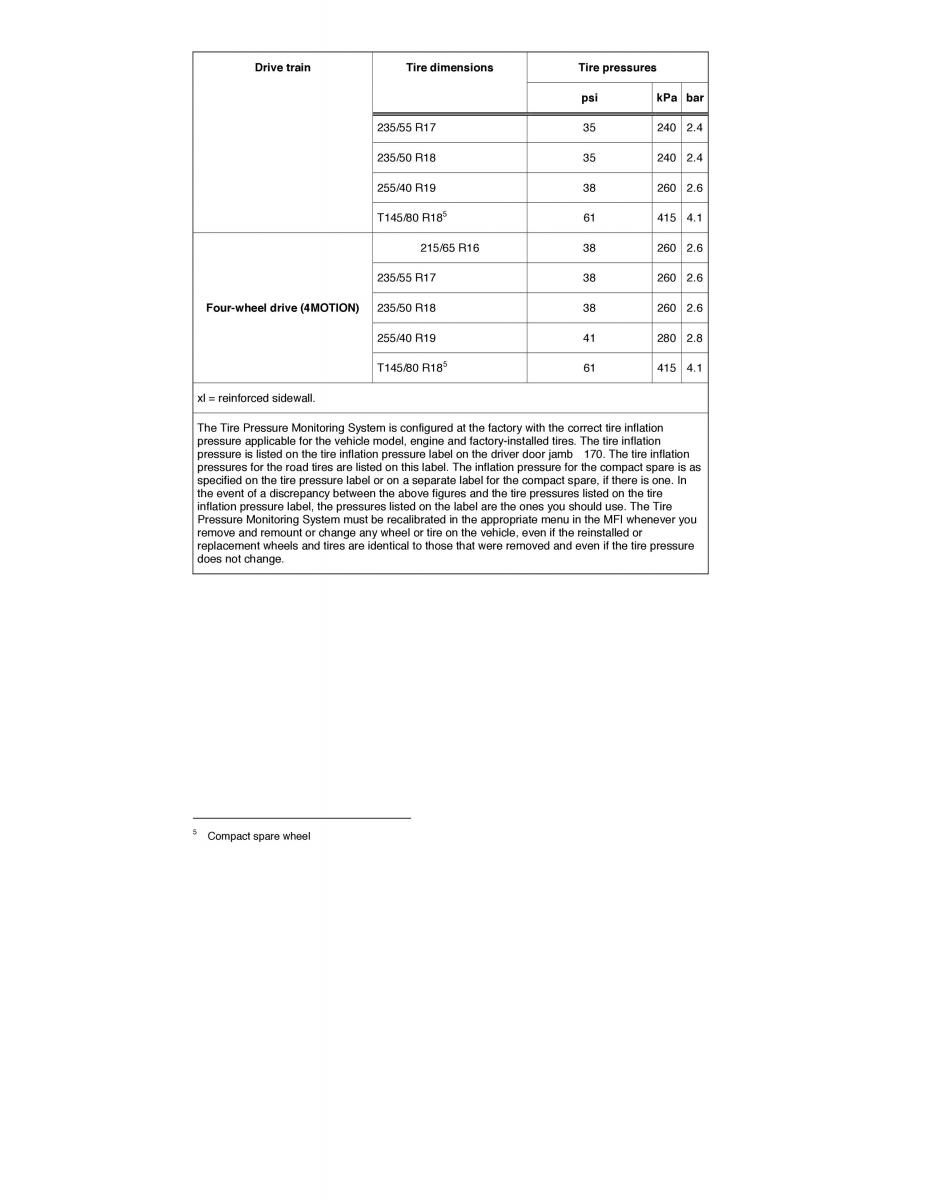

Drive train Tire dimensions Tire pressures psi kPa bar 235/55 R17 35 240 2.4 235/50 R18 35 240 2.4 255/40 R19 38 260 2.6 5 T145/80 R18 61 415 4.1 215/65 R16 38 260 2.6 235/55 R17 38 260 2.6 Four-wheel drive (4MOTION) 235/50 R18 38 260 2.6 255/40 R19 41 280 2.8 5 T145/80 R18 61 415 4.1 xl = reinforced sidewall. The Tire Pressure Monitoring System is configured at the factory with the correct tire inflation pressure applicable for the vehicle model, engine and factory-installed tires. The tire inflation pressure is listed on the tire inflation pressure label on the driver door jamb 170. The tire inflation pressures for the road tires are listed on this label. The inflation pressure for the compact spare is as specified on the tire pressure label or on a separate label for the compact spare, if there is one. In the event of a discrepancy between the above figures and the tire pressures listed on the tire inflation pressure label, the pressures listed on the label are the ones you should use. The Tire Pressure Monitoring System must be recalibrated in the appropriate menu in the MFI whenever you remove and remount or change any wheel or tire on the vehicle, even if the reinstalled or replacement wheels and tires are identical to those that were removed and even if the tire pressure does not change. 5 Compact spare wheel
